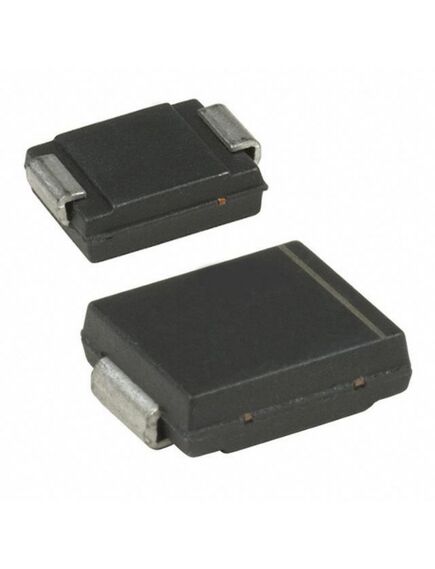

SMCJ15CA, диод защитный от перенапряжения - tvs (супрессор) 15в включение 24.4в ограничение smc

КОД: SMCJ15CA

Цена: по запросу

Нет в наличии

Задать вопрос

Описание

Описание SMCJ15CA

• Reverse stand off voltage (VR) of 15V and maximum reverse leakage (IR) of 1µA at VR
• Breakdown voltage (VBR) of 16.7V minimum, 18.5V maximum at 1mA test current (IT)
• Maximum clamping voltage (VC) of 24.4V at IPP and maximum peak pulse current (IPP) of 61.5A
• Typical failure mode is short from over specified voltage or current
• UL E230531 approved, plastic package is flammability rated V-0 per UL standard
• IEC-61000-4-2 ESD 30KV (air), 30KV (contact) protection
• Suitable for surface mounted applications to optimize board space
• Operating temperature range from -65°C to 150°C and 260°C
• 40sec high temperature to reflow soldering
• ESD protection of data lines with IEC 61000-4-2 and EFT protection with IEC 61000-4-4 standard

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Configuration	Single
Direction Type	Bi-Directional
Number of Elements per Chip	1
Minimum Breakdown Voltage (V)	16.7
Maximum Clamping Voltage (V)	24.4
Maximum Reverse Stand-Off Voltage (V)	15
Maximum Peak Pulse Current (A)	61.5
Maximum Reverse Leakage Current (uA)	1
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	1500
Minimum Operating Temperature (°C)	-65
Maximum Operating Temperature (°C)	150
Operating Junction Temperature (°C)	-65 to 150
Packaging	Tape and Reel
Pin Count	2
Supplier Package	SMC
Standard Package Name	DO-214-AB
Mounting	Surface Mount
Package Height	2.42(Max)
Package Length	7.11(Max)
Package Width	6.22(Max)
PCB changed	2
Lead Shape	J-Lead
Вес, г	0.47
