OP262GSZ, операционный усилитель, 15 мгц
Описание
Описание OP262GSZ
The OP262GSZ is a dual Operational Amplifier features the extra speed new designs require, with the benefits of precision and low power operation. With their incredibly low offset voltage of 45µV (typical) and low noise, it is perfectly suited for precision filter applications and instrumentation. The low supply current of 500µA (typical) is critical for portable or densely packed designs. In addition, the rail-to-rail output swing provides greater dynamic range and control than standard video amplifiers. The fast settling times and wide output swings recommend them for buffers to sampling A/D converters. The output drive of 30mA (sink and source) is needed for many audio and display applications, more output current can be supplied for limited durations.
• Unity-gain stable
• No phase inversion
• 325µV Maximum low offset voltage
• 9.5nV/√Hz at 1kHz Low noise
• 1µV/°C Typical low TCVOS
| Тип усилителя | общего применения |
| Кол-во каналов | 2 |
| Тип выхода | Rail-to-Rail |
| Скорость нарастания выходного сигнала, В/мкс | 13 |
| Частота единичного усиления, МГц | 15 |
| Токовое смещение на входе, нА | 260 |
| Напряжение смещения на входе, мкВ | 25 |
| Ток собственного потребления, мА | 0.55 |
| Выходной ток на канал, мА | 30 |
| Напряжение питания однополярное(+)/двуполярное (±), В | +2.7...12, ±1.35...6 |
| Рабочая температура, °C | -40…+125 |

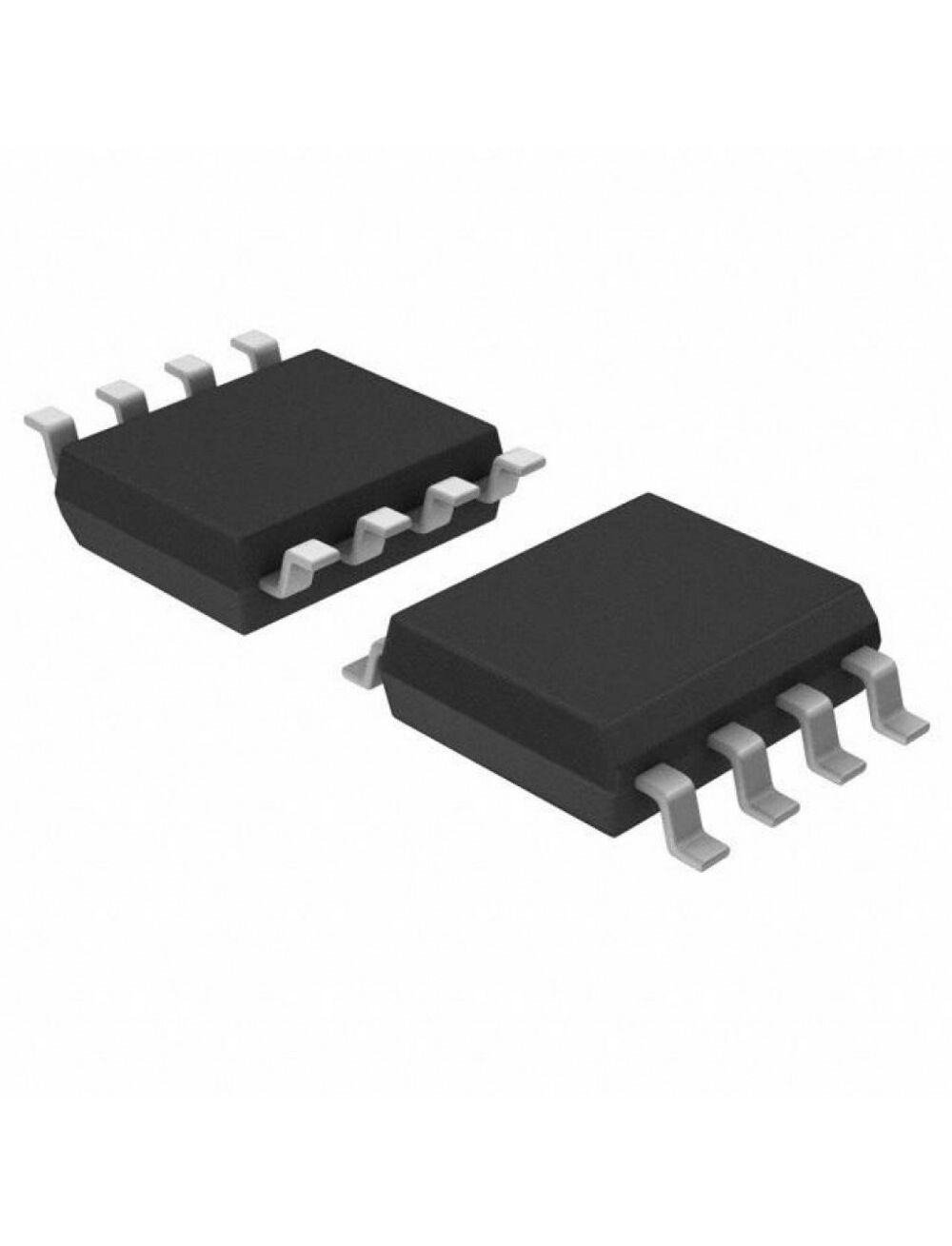

| Корпус | soic-8 (0.154 inch) |
| Вес, г | 0.15 |
