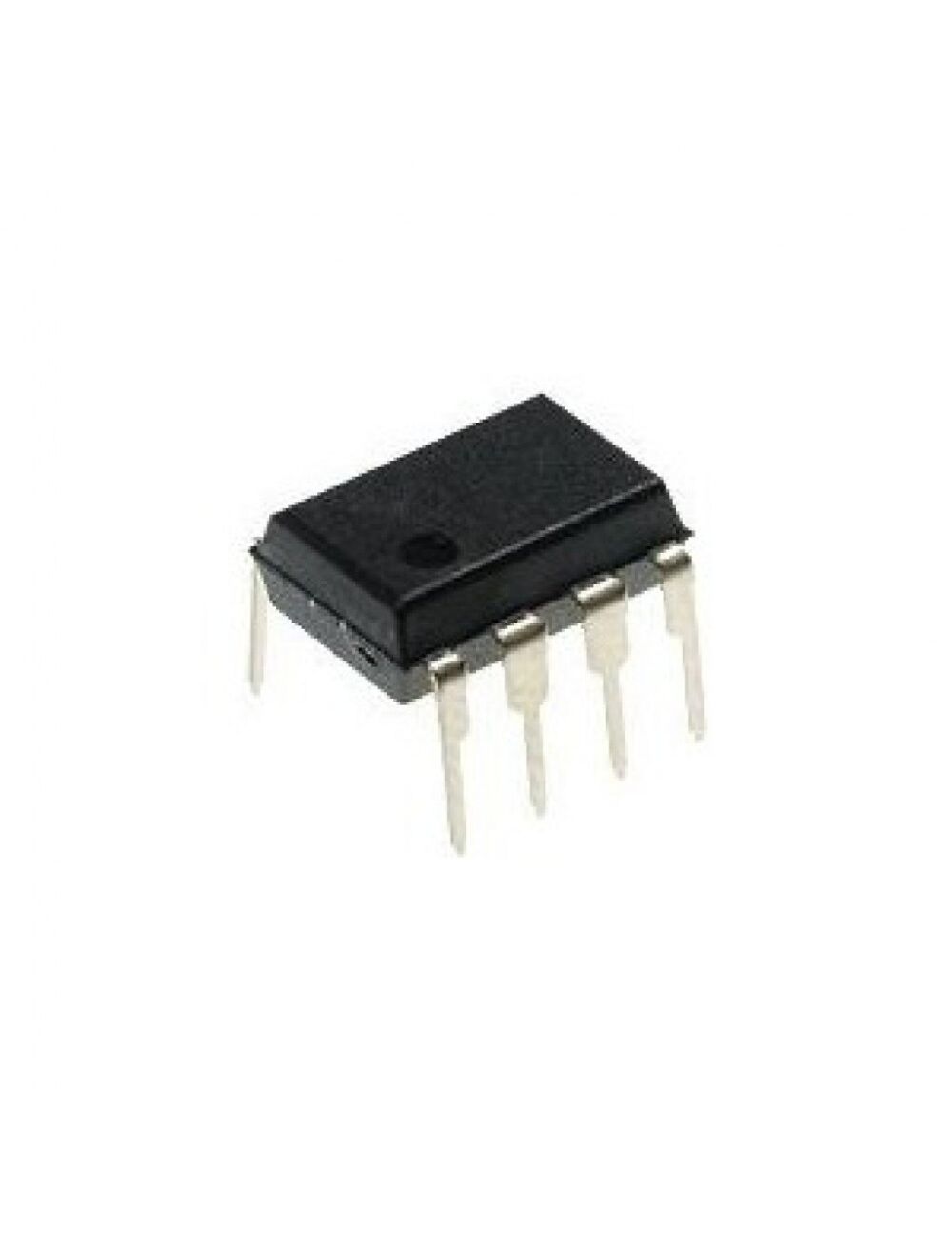

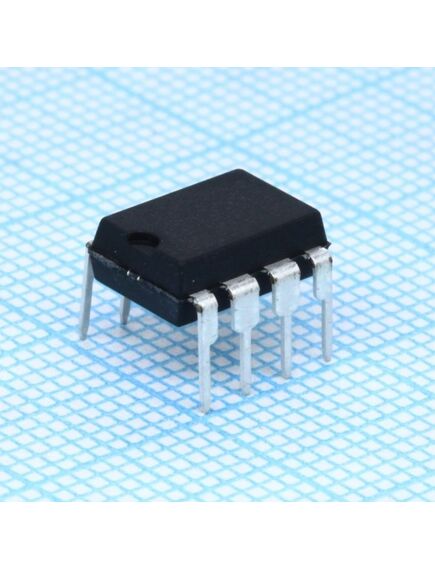

OP07DP, операционный усилитель, 600 кгц
Описание
Описание OP07DP
The OP07DP is a general purpose low offset voltage Operational Amplifier offers long-term stability by means of a low-noise, chopperless, bipolar-input-transistor amplifier circuit. For most applications, external components are not required for offset nulling and frequency compensation. The true differential input, with a wide input-voltage range and outstanding common-mode rejection, provides maximum flexibility and performance in high-noise environments and in non-inverting applications. Low bias currents and extremely high input impedances are maintained over the entire temperature range.
• Low noise
• No external components required
• Replace chopper amplifiers at a lower cost
• Wide input voltage range
• Wide supply voltage range
• Green product
| Тип усилителя | общего применения |
| Кол-во каналов | 1 |
| Скорость нарастания выходного сигнала, В/мкс | 0.3 |
| Частота единичного усиления, МГц | 0.6 |
| Токовое смещение на входе, нА | 2 |
| Напряжение смещения на входе, мкВ | 60 |
| Напряжение питания однополярное(+)/двуполярное (±), В | ±3...18 |
| Рабочая температура, °C | 0…+70 |
| Корпус | DIP-8 (0.300 inch) |
| Вес, г | 1 |
