LMC6482AIMX/NOPB, операционный усилитель, 1.5 мгц
Описание
Описание LMC6482AIMX/NOPB
The LMC6482AIMX/NOPB is a dual CMOS Operational Amplifier with rail-to-rail input and output. The LMC6482 device provides a common-mode range that extends to both supply rails. This rail-to-rail performance combined with excellent accuracy, due to a high CMRR, makes it unique among rail-to-rail input amplifiers. The device is ideal for systems, such as data acquisition, that require a large input signal range. The LMC6482 is also an excellent upgrade for circuits using limited common-mode range amplifier such as the TLC272 and TLC277. Maximum dynamic signal range is assured in low voltage and single supply systems by the rail-to-rail output swing of the LMC6482. The rail-to-rail output swing is ensured for loads down to 600R of the device. Ensured low-voltage characteristics and low-power dissipation make the LMC6482 especially well-suited for battery-operated systems.
• Power-good output
• Rail-to-rail input common-mode voltage range (ensured over temperature)
• Rail-to-rail output swing (within 20mV of supply rail, 100kR load)
• 82dB Excellent CMRR and PSRR
• 20fA Ultralow input current
• 130dB High voltage gain (RL=500kR)
| Тип усилителя | общего применения |
| Кол-во каналов | 2 |
| Тип выхода | Rail-to-Rail |
| Скорость нарастания выходного сигнала, В/мкс | 1.3 |
| Частота единичного усиления, МГц | 1.5 |
| Токовое смещение на входе, нА | 2E-05 |
| Напряжение смещения на входе, мкВ | 110 |
| Ток собственного потребления, мА | 1.3 |
| Напряжение питания однополярное(+)/двуполярное (±), В | +3...15.5, ±1.5...7.75 |
| Рабочая температура, °C | -40…+85 |

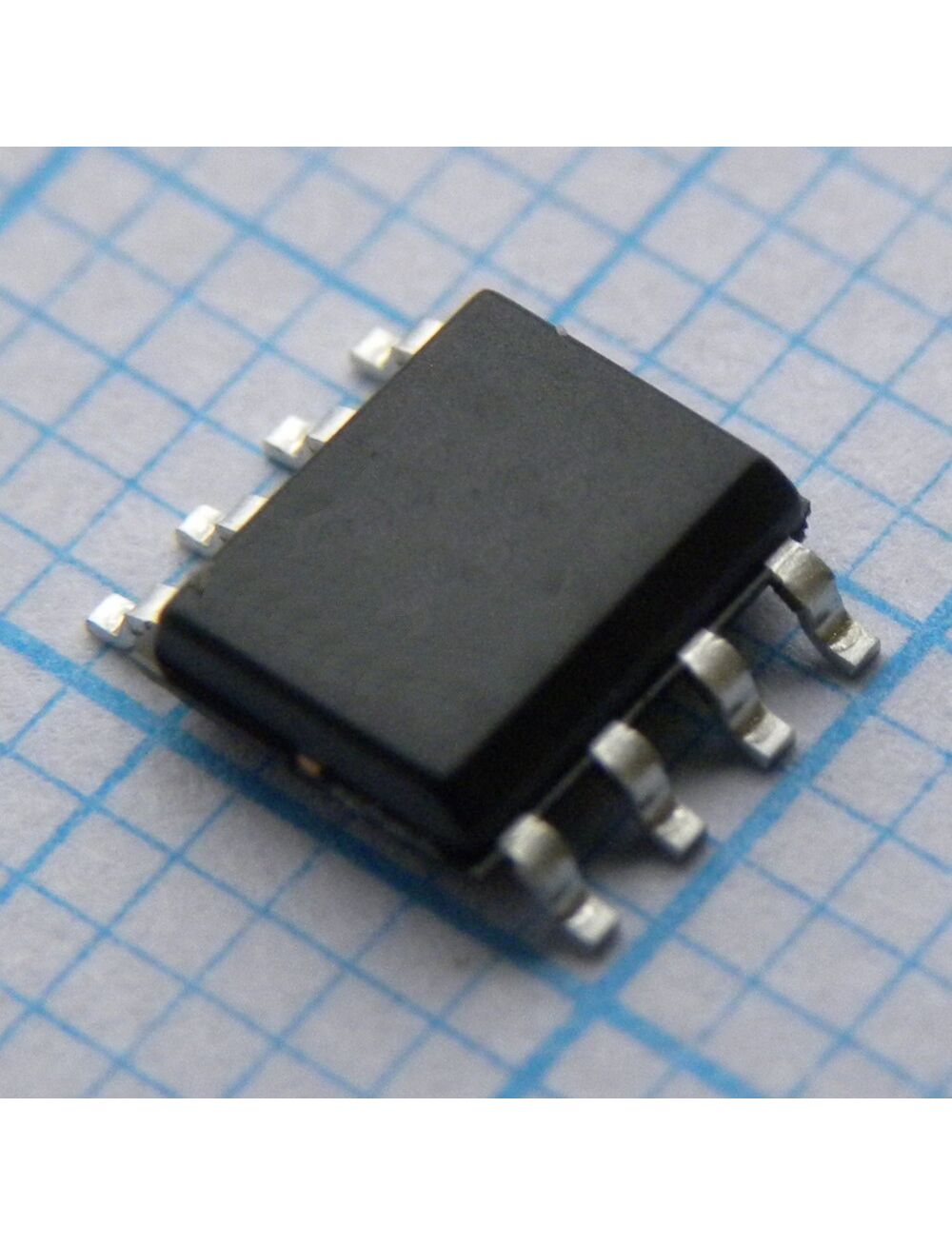

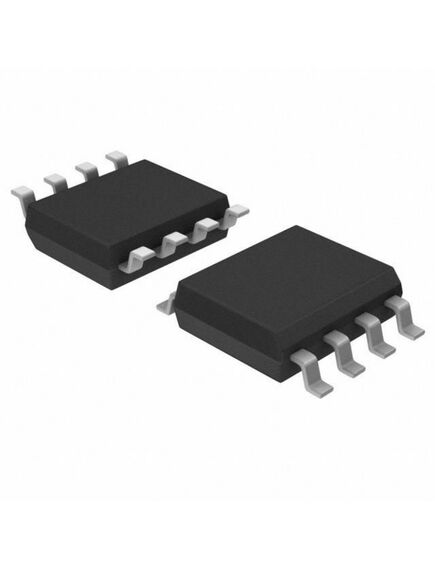

| Корпус | soic-8 (0.154 inch) |
| Вес, г | 0.15 |
