LM7171AIM/NOPB, операционный усилитель, 200 мгц
Описание
Описание LM7171AIM/NOPB
The LM7171AIM/NOPB is a very high speed high output current voltage Feedback Amplifier that has the slewing characteristic of a current feedback amplifier, yet it can be used in all traditional voltage feedback amplifier configurations. The LM7171 is stable for gains as low as +2 or -1. It provides a very high slew rate at 4100V/µs and a wide unity-gain bandwidth of 200MHz while consuming only 6.5mA of supply current. It is ideal for video and high speed signal processing applications such as HDSL and pulse amplifiers. With 100mA output current, the amplifier can be used for video distribution, as a transformer driver or as a laser diode driver. Operation on ±15V power supplies allows for large signal swings and provides greater dynamic range and signal-to-noise ratio. The amplifier offers low SFDR and THD, ideal for ADC/DAC systems. In addition, the LM7171 is specified for ±5V operation for portable applications.
• Easy-to-use voltage feedback topology
• 6.5mA Low supply current
• 85dB High open loop gain
• 100mA High output current
• 0.01% Differential gain
• 0.02° Differential phase
• Green product and no Sb/Br
| Серия | VIP III |
| Тип усилителя | с обратной связью по напряжению |
| Кол-во каналов | 1 |
| Скорость нарастания выходного сигнала, В/мкс | 4100 |
| Частота единичного усиления, МГц | 200 |
| Полоса пропускания -3 дБ, МГц | 220 |
| Токовое смещение на входе, нА | 2700 |
| Напряжение смещения на входе, мкВ | 200 |
| Ток собственного потребления, мА | 6.5 |
| Выходной ток на канал, мА | 118 |
| Напряжение питания однополярное(+)/двуполярное (±), В | +5.5...36, ±2.75...18 |
| Рабочая температура, °C | -40…+85 |

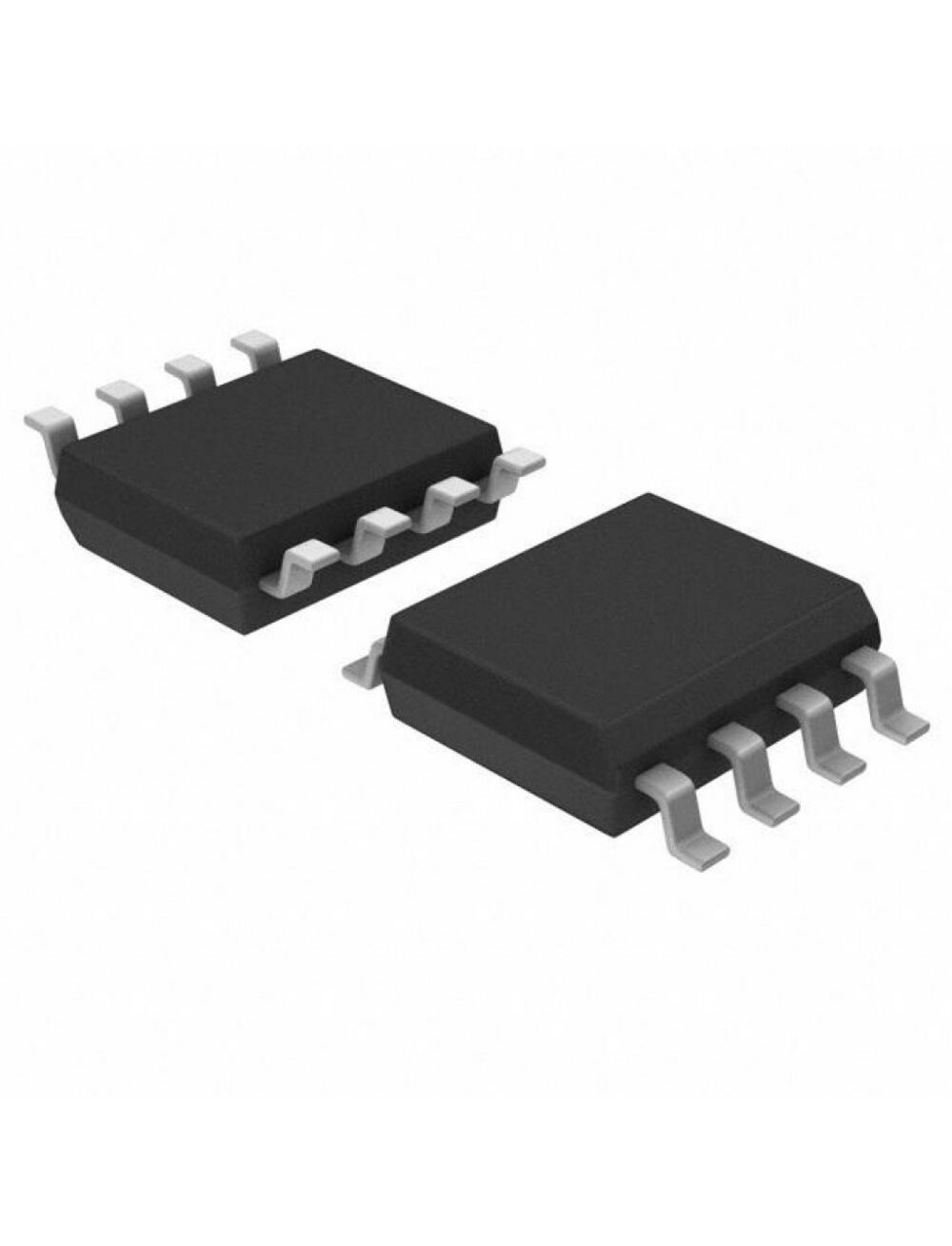

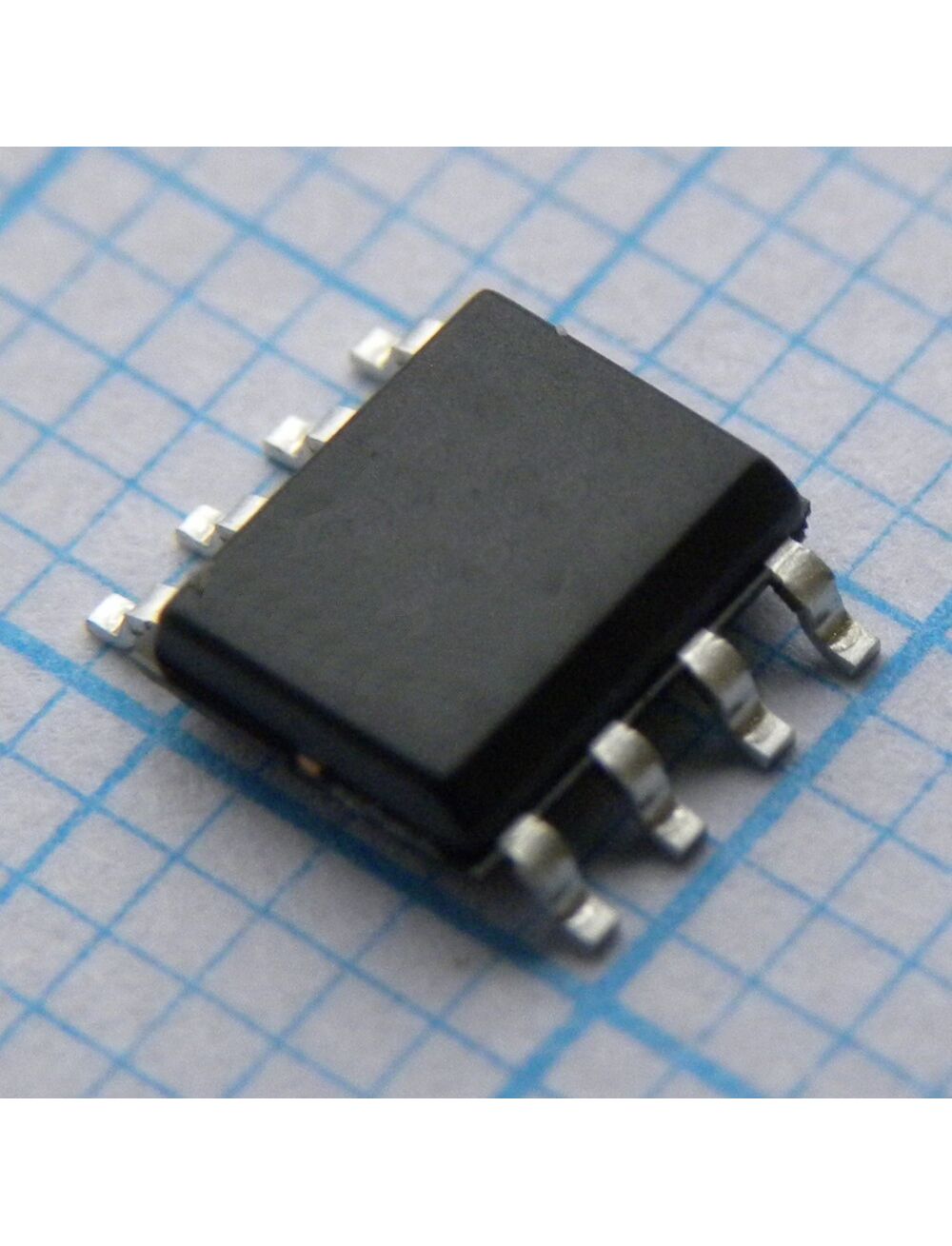

| Корпус | soic-8 (0.154 inch) |
| Вес, г | 0.15 |
