LM6172IM/NOPB, операционный усилитель, 100 мгц
Описание
Описание LM6172IM/NOPB
The LM6172IM/NOPB is a dual high speed Voltage Feedback Amplifier. It is unity-gain stable and provides excellent DC and AC performance. With 100MHz unity-gain bandwidth, 3000V/µs slew rate and 50mA of output current per channel, the LM6172IM/NOPB offers high performance in dual amplifiers, yet it only consumes 2.3mA of supply current each channel. It operates on ±15V power supply for systems requiring large voltage swings, such as ADSL, scanners and ultrasound equipment. It is also specified at ±5V power supply for low voltage applications such as portable video systems. The LM6172IM/NOPB is built with TI's advanced VIP III (Vertically Integrated PNP) complementary bipolar process.
• Easy to use voltage feedback topology
• 3000V/µs High slew rate
• 100MHz Wide unity-gain bandwidth
• 2.3mA Low supply current per channel
• 50mA High output current per channel
• Specified for ±15V and ±5V operation
• Green product and no Sb/Br
| Серия | VIP III |
| Тип усилителя | с обратной связью по напряжению |
| Кол-во каналов | 2 |
| Скорость нарастания выходного сигнала, В/мкс | 3000 |
| Частота единичного усиления, МГц | 100 |
| Полоса пропускания -3 дБ, МГц | 160 |
| Токовое смещение на входе, нА | 1200 |
| Напряжение смещения на входе, мкВ | 400 |
| Ток собственного потребления, мА | 4.6 |
| Выходной ток на канал, мА | 90 |
| Напряжение питания однополярное(+)/двуполярное (±), В | +5.5...36, ±2.75...18 |
| Рабочая температура, °C | -40…+85 |

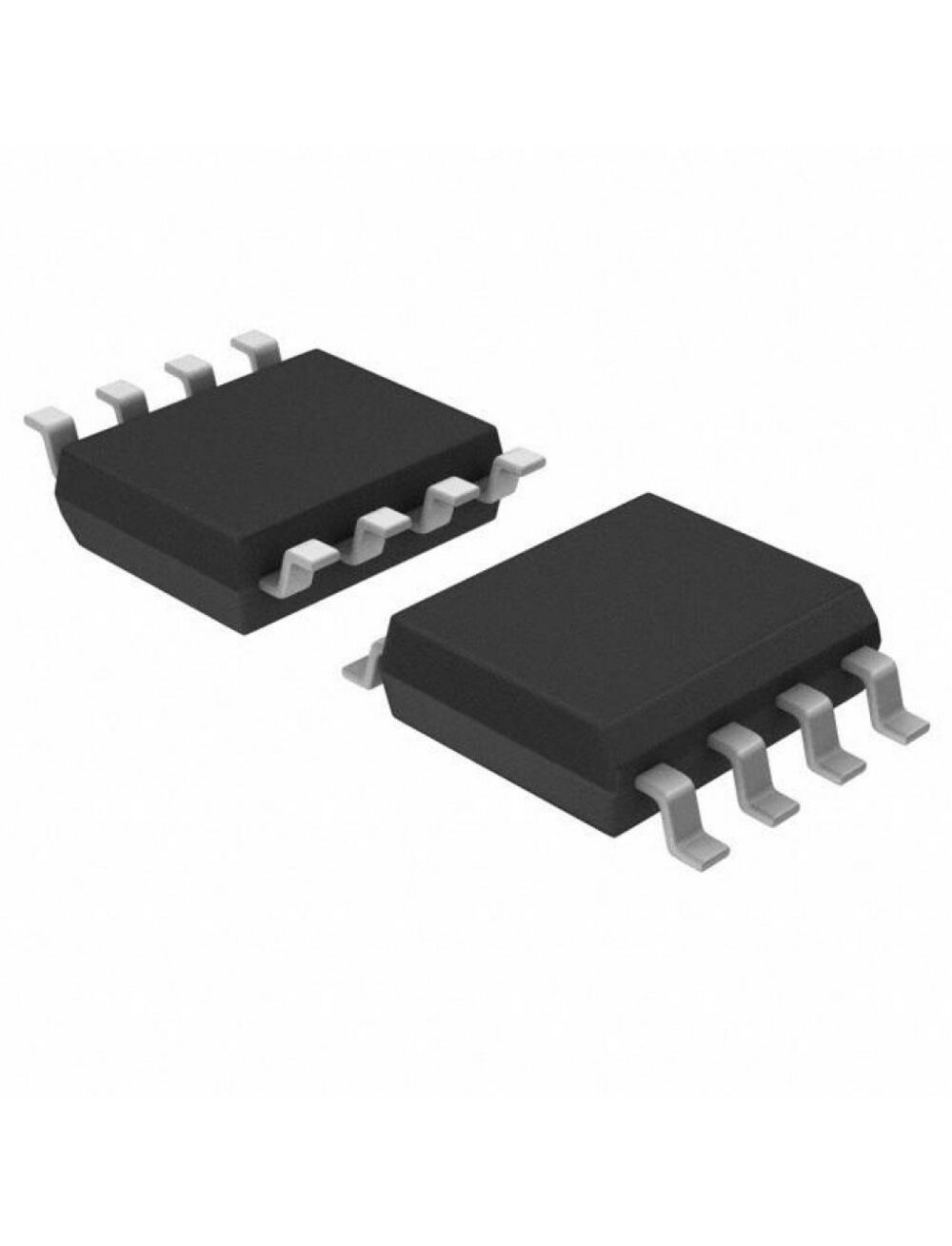

| Корпус | soic-8 (0.154 inch) |
| Вес, г | 0.15 |
