LM358N/NOPB, операционный усилитель, 1 мгц
Описание
Описание LM358N/NOPB
The LM358N/NOPB from Texas Instruments is a LM158 series low-power, dual-operational amplifier in 8 pin DIP package. This LM158 series consists of two independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages. It has unique characteristics such as in the linear mode the input common-mode voltage range includes ground and the output voltage can also swing to ground even though operated from only a single power supply voltage, the unity gain cross frequency is temperature compensated and the input bias current is also temperature compensated. Typically used at active filters, general signal conditioning and amplification and 4 to 20mA current loop transmitters.
• Internally frequency compensated for unity gain
• Large DC voltage gain: 100dB
• Wide bandwidth (unity gain): 1MHz
• Single supply: 3V to 32V
• Low input offset voltage: 2mV
• Differential input voltage range equal to the power supply voltage
• Large output voltage swing
• Allows direct sensing near GND and VOUT also goes to GND
• Compatible with all forms of logic
• Power drain suitable for battery operation
| Тип усилителя | общего применения |
| Кол-во каналов | 2 |
| Скорость нарастания выходного сигнала, В/мкс | 0.1 |
| Частота единичного усиления, МГц | 1 |
| Токовое смещение на входе, нА | 45 |
| Напряжение смещения на входе, мкВ | 2000 |
| Ток собственного потребления, мА | 1 |
| Выходной ток на канал, мА | 40 |
| Напряжение питания однополярное(+)/двуполярное (±), В | +3...32, ±1.5...16 |
| Рабочая температура, °C | 0…+70 |

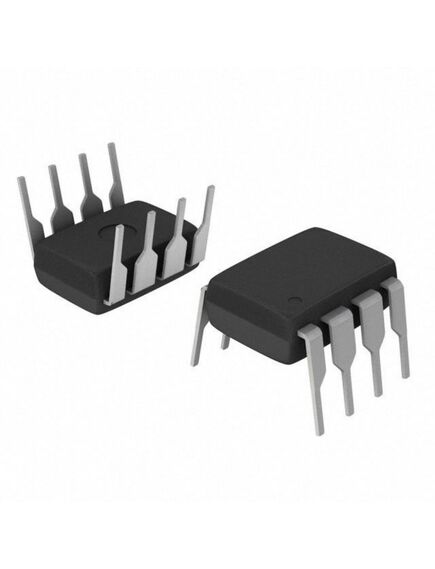

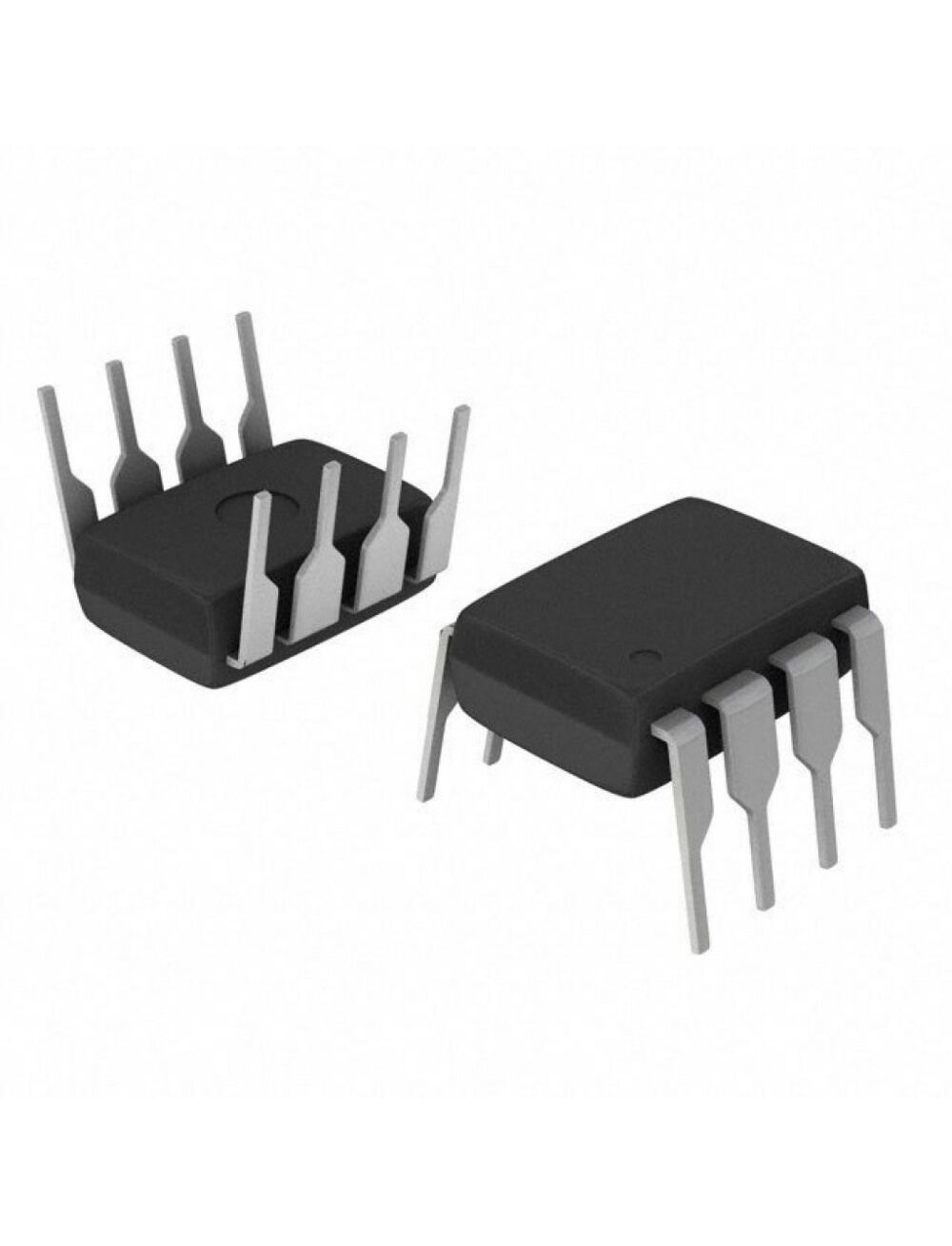

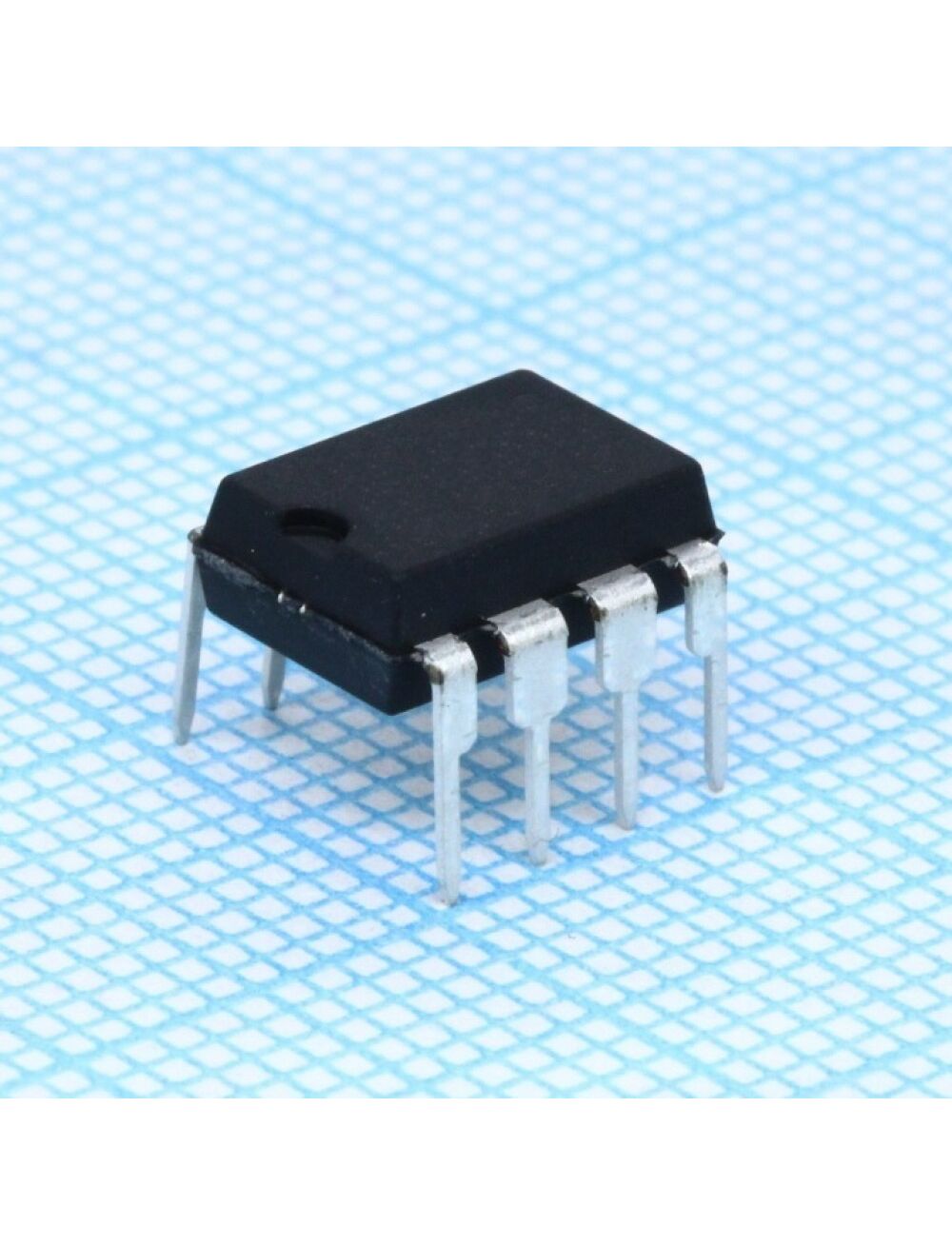

| Корпус | DIP-8 (0.300 inch) |
| Вес, г | 1 |
