AD8033ARZ, операционный усилитель, 80 мгц
Описание
Описание AD8033ARZ
The AD8033ARZ is a 80MHz FastFET™ Operational Amplifier with FET inputs, offering ease of use and excellent performance. It is a single voltage feedback amplifier that provides excellent overall performance. They offer a high common-mode rejection of -100dB, low input offset voltage of 2mV maximum and low noise of 11nV/√Hz. With a wide supply voltage range from 5 to 24V and fully operational on a single supply, the AD8033 amplifier works in more applications than similarly priced FET input amplifiers. In addition, the AD8033 has rail-to-rail outputs for added versatility. This amplifier only draws 3.3mA/amplifier of quiescent current while having the capability of delivering up to 40mA of load current. The FastFET™ operational amplifier in proprietary XFCB process offer significant performance improvements over other low cost FET amps, such as low noise and high speed.
• FET input amplifier
• 1pA Typical input bias current
• Low noise
• 1mV Typical low offset voltage
• Single-supply and rail-to-rail output
• -100dB High common-mode rejection ratio
• Low power
• No phase reversal
• 3.3mA/amplifier Typical supply current
| Серия | FastFET |
| Тип усилителя | с обратной связью по напряжению |
| Кол-во каналов | 1 |
| Тип выхода | Rail-to-Rail |
| Скорость нарастания выходного сигнала, В/мкс | 80 |
| Полоса пропускания -3 дБ, МГц | 80 |
| Токовое смещение на входе, нА | 0.0015 |
| Напряжение смещения на входе, мкВ | 1000 |
| Ток собственного потребления, мА | 3.3 |
| Выходной ток на канал, мА | 60 |
| Напряжение питания однополярное(+)/двуполярное (±), В | +5...24, ±2.5...12 |
| Рабочая температура, °C | -40…+85 |

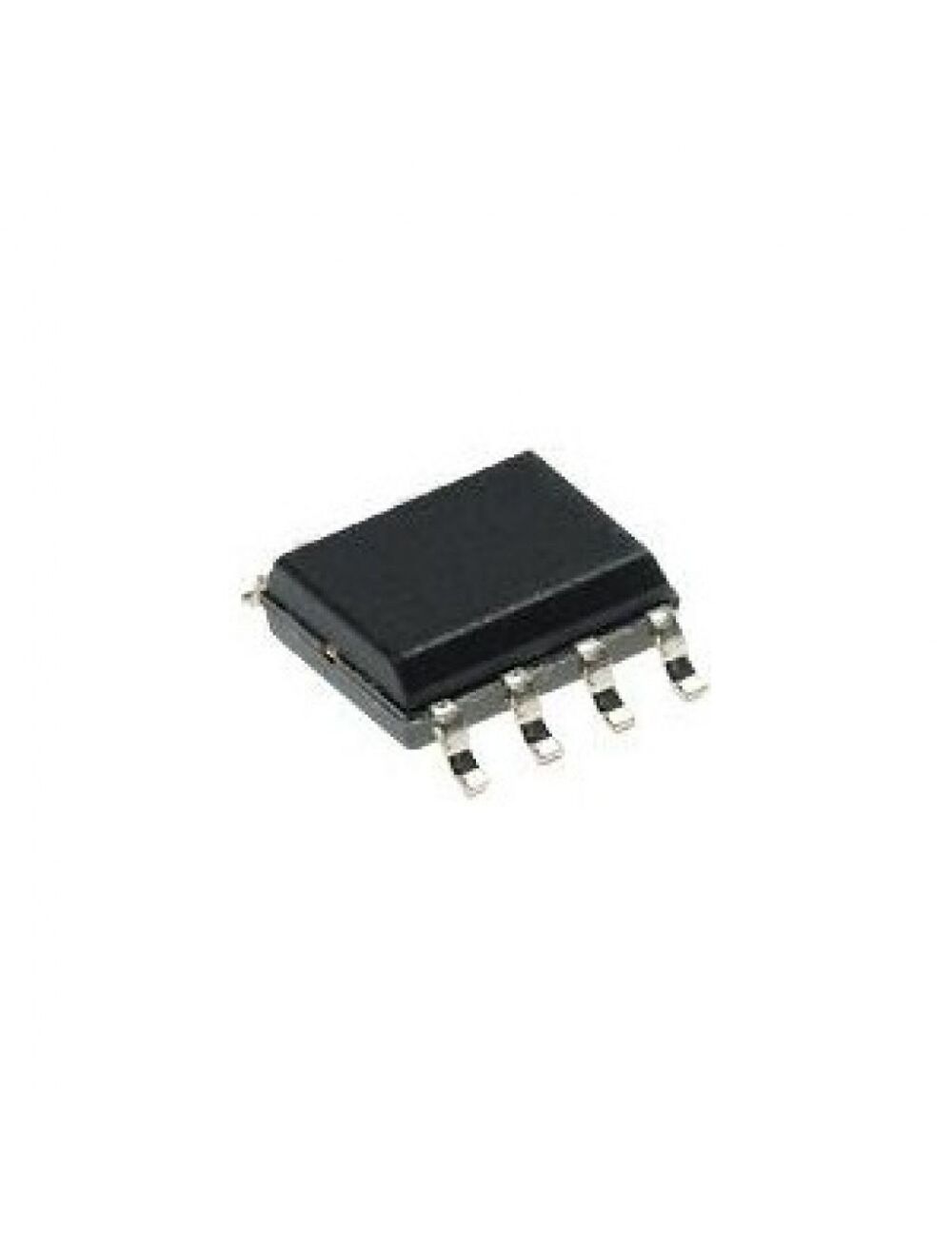

| Корпус | soic-8 (0.154 inch) |
| Вес, г | 0.15 |
