UA78L09ACLP, линейный стабилизатор с низким падением напряжения положительной полярности, 9 в, 0.1 а
Описание
Описание UA78L09ACLP
The µA78L00 series fixed Voltage Regulator designed for a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, it can be used with power-pass elements to make high-current voltage regulator. It can deliver up to 100mA of output current. The internal limiting and thermal-shutdown features of this regulator essentially make it immune to overload. When used as a replacement for a Zener diode-resistor combination, an effective improvement in output impedance can be obtained, together with lower bias current. The device is characterized for operation over the virtual junction temperature range of 0 to 125°C.
• No external components
• Internal short-circuit current limiting
• Green product and no Sb/Br
| Полярность | положительная |
| Тип выхода | фиксированный |
| Количество выходов | 1 |
| Выходное напряжение, В | 9 |
| Максимальный ток нагрузки, А | 0.1 |
| Падение напряжения при Iвых, В (А) | 1.7(0.04) |
| Максимальное входное напряжение, В | 24 |
| Рабочая температура,°C | 0…+125 |

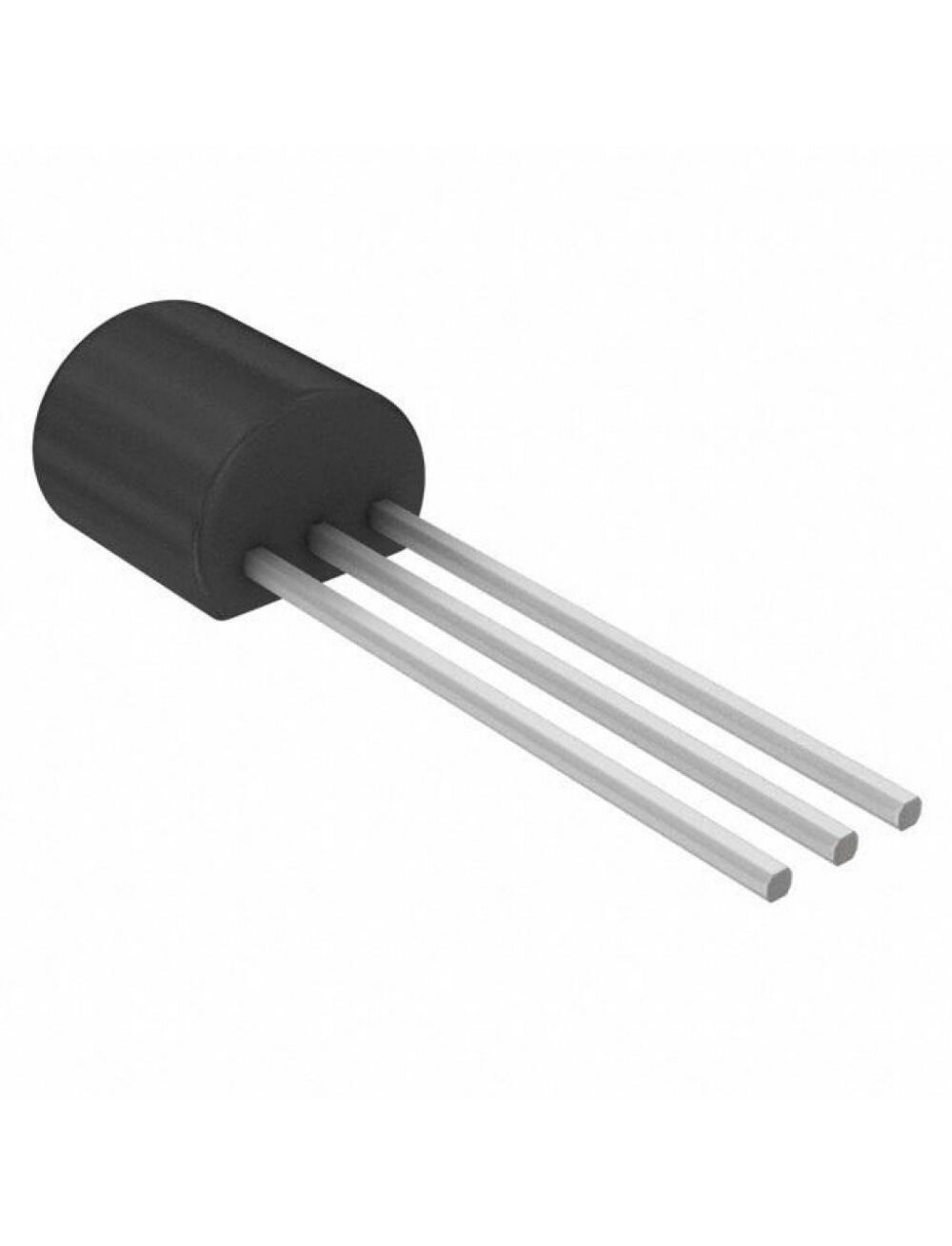

| Корпус | to-92 |
| Вес, г | 0.3 |
