TPS73133DBVT, линейный стабилизатор с низким падением напряжения положительной полярности, 3.3 в, 0.15 а
Описание
Описание TPS73133DBVT
The TPS73133DBVT is a 3.3V fixed output low-dropout (LDO) Linear Regulator with reverse current protection uses a new topology, an NMOS pass element in a voltage-follower configuration. This topology is stable using output capacitors with low equivalent series resistance (ESR) and even allows operation without a capacitor. The device also provides high reverse blockage (low reverse current) and ground pin current that is nearly constant over all values of output current. The device uses an advanced BiCMOS process to yield high precision while delivering very low-dropout (LDO) voltages and low ground pin current. Current consumption, when not enabled, is less than 1µA and ideal for portable applications. The extremely low output noise is ideal for powering VCOs. These devices are protected by thermal shutdown and fold-back current limit.
• Stable with or without capacitors of all types
• Excellent load transient response-with or without optional output capacitor
• New NMOS topology provides low reverse leakage current
• 30µVrms Low noise (10kHz to 100kHz)
• 0.5% Initial accuracy
• 1% Overall accuracy over line, load and temperature
• <1µA Quiescent current (IQ) in shutdown mode
• Thermal shutdown and specified minimum and maximum current limit protection
• Green product and no Sb/Br
| Полярность | положительная |
| Тип выхода | фиксированный |
| Количество выходов | 1 |
| Выходное напряжение, В | 3.3 |
| Максимальный ток нагрузки, А | 0.15 |
| Падение напряжения при Iвых, В (А) | 0.1(0.15) |
| Максимальное входное напряжение, В | 5.5 |
| Рабочая температура,°C | -40…+125 |

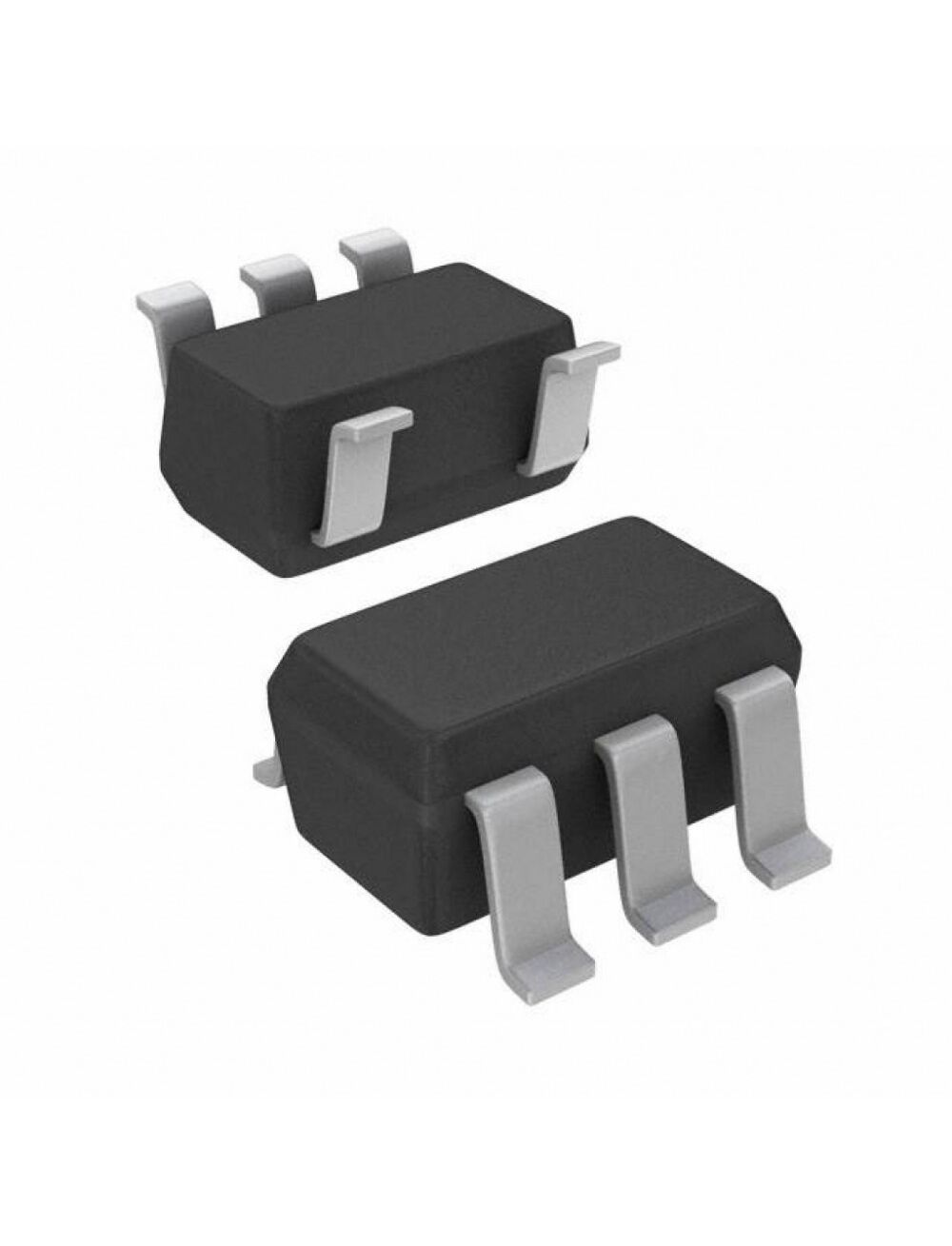

| Корпус | sot-23-5 |
| Вес, г | 0.08 |
