TPS73033DBVR, линейный стабилизатор с низким падением напряжения положительной полярности, 3.3 в, 0.2 а
Описание
Описание TPS73033DBVR
The TPS73033DBVR is a 3.3V fixed output low-power low-dropout (LDO) Linear Regulator features high power-supply rejection ratio (PSRR), low noise, fast start-up and excellent line and load transient responses. The device is stable with a small 2.2µF ceramic capacitor on the output. The device family uses an advanced, proprietary BiCMOS fabrication process to yield low-dropout (LDO) voltages. The device achieves fast start-up times (approximately 50µs with a 0.001µF bypass capacitor) while consuming low quiescent current (170µA typical). Moreover, when the device is placed in standby mode, the supply current is reduced to less than 1µA.
• 68dB at 100Hz High PSRR
• 50µs Fast start-up time
• Stable with a 2.2µF ceramic capacitor
• Excellent load/line transient response
• Green product and no Sb/Br
| Полярность | положительная |
| Тип выхода | фиксированный |
| Количество выходов | 1 |
| Выходное напряжение, В | 3.3 |
| Максимальный ток нагрузки, А | 0.2 |
| Падение напряжения при Iвых, В (А) | 0.21(0.2) |
| Максимальное входное напряжение, В | 5.5 |
| Рабочая температура,°C | -40…+125 |

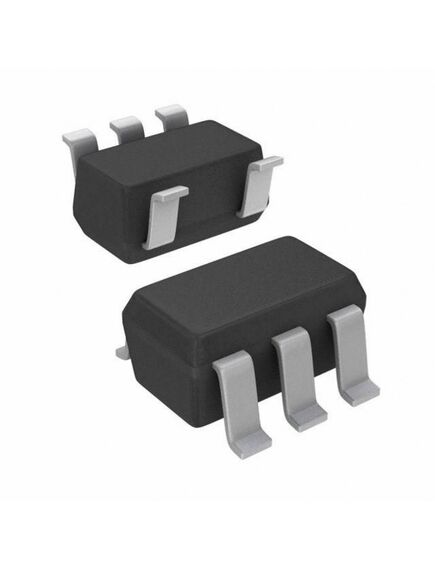

| Корпус | sot-23-5 |
| Вес, г | 0.08 |
