TPS71533DCKR, линейный стабилизатор с низким падением напряжения положительной полярности, 3.3 в, 50 ма
Описание
Описание TPS71533DCKR
The TPS71533DCKR is a Low-dropout (LDO) Voltage Regulator offers the benefits of high input voltage, low-dropout voltage and low-power operation. The device, which operate over an input range of 2.5 to 24V, are stable with any capacitor greater than or equal to 0.47µF. The low dropout voltage and low quiescent current allow operation at extremely low power levels. Therefore, the devices are ideal for powering battery management ICs. Specifically, because the devices are enabled as soon as the applied voltage reaches the minimum input voltage, the output is quickly available to power continuously operating battery charging ICs. The usual PNP pass transistor has been replaced by a PMOS pass element. Because the PMOS pass element behaves as a low-value resistor, the low dropout voltage, typically 415mV at 50mA of load current, is directly proportional to the load current. The low quiescent current (3.2µA typically) is stable over the entire range of output load current (0 to 50mA).
• Low 3.2µA quiescent current at 50mA
• Stable with any capacitor>=0.47µF
• 50mA Low-dropout regulator
• Minimum and maximum specified current limit
• Green product and no Sb/Br
| Полярность | положительная |
| Тип выхода | фиксированный |
| Количество выходов | 1 |
| Выходное напряжение, В | 3.3 |
| Максимальный ток нагрузки, А | 0.05 |
| Падение напряжения при Iвых, В (А) | 0.75(0.05) |
| Максимальное входное напряжение, В | 24 |
| Рабочая температура,°C | -40…+125 |

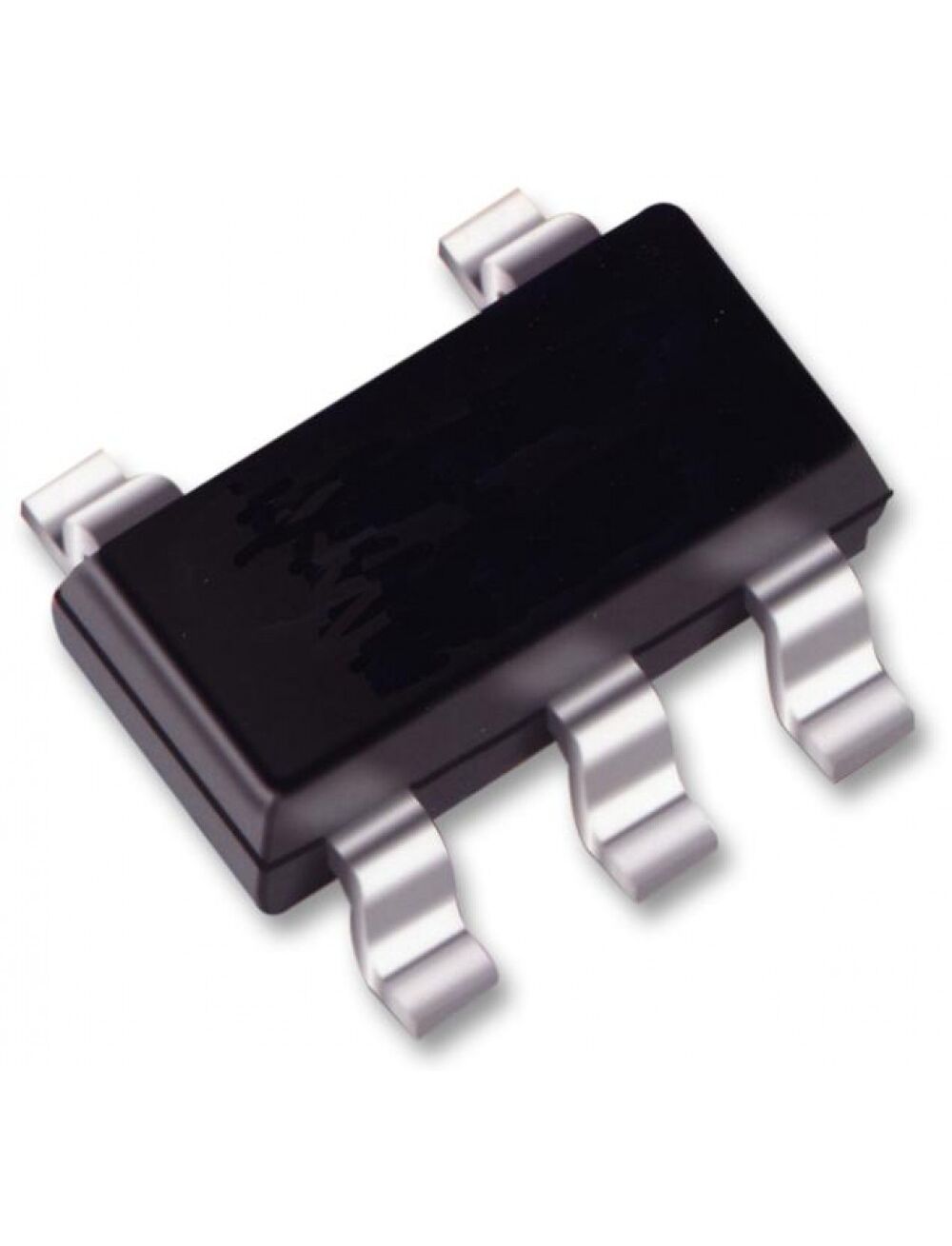

| Корпус | sc-70-5 |
| Вес, г | 0.1 |
