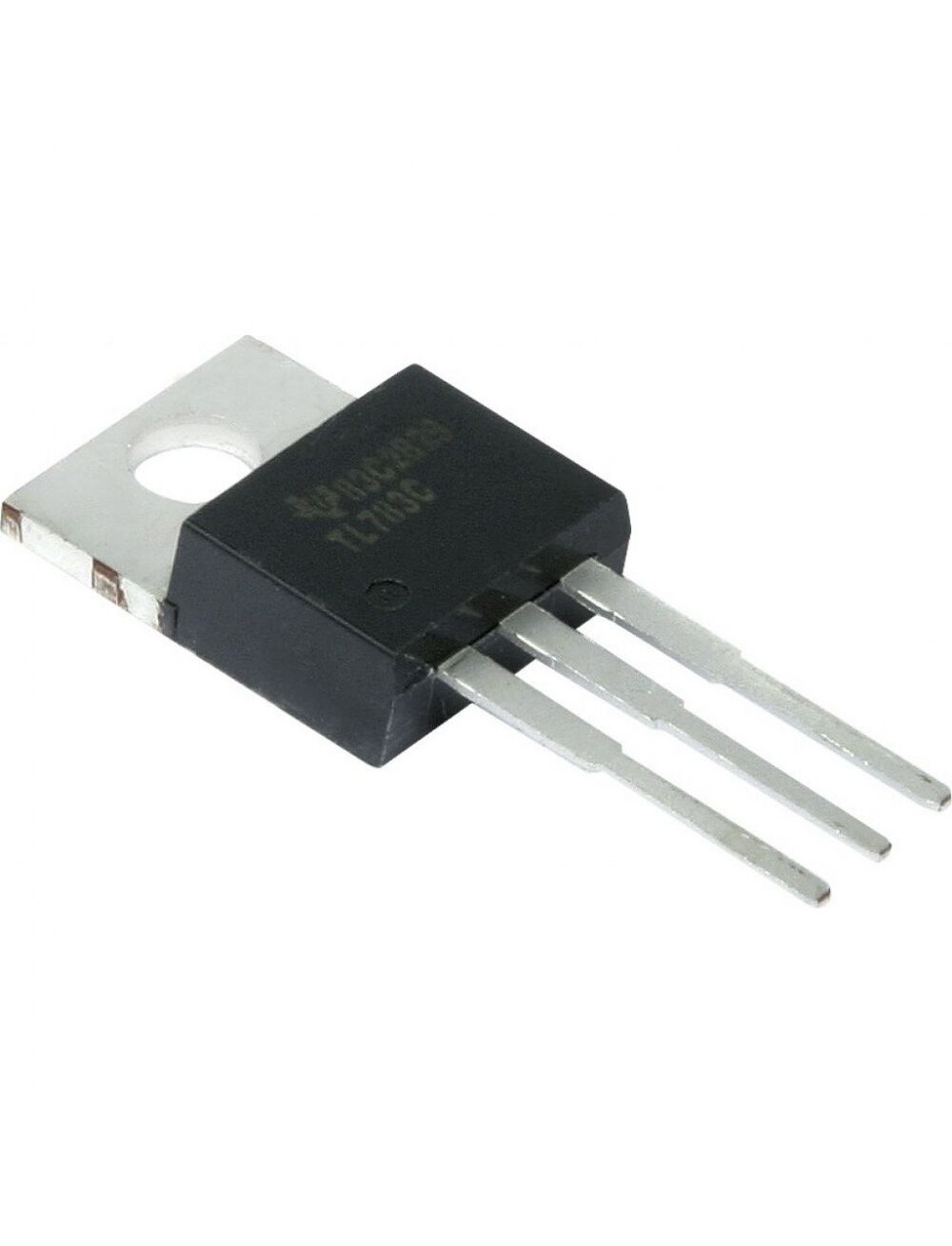

TL783CKCSE3, регулируемый стабилизатор с низким падением напряжения положительной полярности, 1.25 в-125 в, 0.7 а

TL783CKCSE3
Цена: по запросу
Нет в наличии

Описание

Описание TL783CKCSE3

The TL783CKCSE3 is an adjustable three-terminal high-voltage regulator with an output range of 1.25 V to 125 V and a DMOS output transistor capable of sourcing more than 700 mA. It is designed for use in high-voltage applications where standard bipolar regulators cannot be used. Excellent performance specifications, superior to those of most bipolar regulators, are achieved through circuit design and advanced layout techniques. As a state-of-the-art regulator, the TL783 combines standard bipolar circuitry with high-voltage double-diffused MOS transistors on one chip, to yield a device capable of withstanding voltages far higher than standard bipolar integrated circuits.

• 0.001%/V typical input voltage regulation
• 0.15% typical output voltage regulation
• Full short-circuit, safe-operating-area, and thermal-shutdown protection
• 76-dB Typical ripple rejection

Полярностьположительная
Тип выходарегулируемый
Количество выходов1
Выходное напряжение, В1.25…125
Максимальный ток нагрузки, А0.7
Максимальное входное напряжение, В150
Рабочая температура,°C0…+125
Корпусto-220
Вес, г2.5

Особенности

Вес брутто
2.95 г
Выходное напряжение
1.25 V ~ 125 V
Выходной ток
700mA
Код товара
79570
Корпус
TO-220AB
Краткое описание
Standard Regulator Pos 1.25V to 125V 0.7A 3-Pin(3+Tab) TO-220 Tube Регулируемый стабилизатор с низким падением напряжения положительной полярности, 1.25 В-125 В, 0.7 А
Максимальное входное напряжение
150 V
Минимальное входное напряжение
21.5 V
Нормоупаковка
50 шт
Тип стабилизатора
Positive Adjustable
Тип упаковки
Tube (туба)
Файлы
Https://www.promelec.ru/fs/sources/9f/94/6c/39/d9c0ae4275ae436b40a056c4.pdf
