MC79L12ACLP, линейный стабилизатор с низким падением напряжения отрицательной полярности, 12 в, 0.1 а
Описание
Описание MC79L12ACLP
The MC79L12ACLP is a fixed Negative-Voltage Regulator designed for a wide range of applications. This includes on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, it can be used to control series pass elements to make high-current voltage-regulator circuits. This regulator can deliver up to 100mA of output current. The internal current-limiting and thermal-shutdown features essentially make the regulator immune to overload. When used as a replacement for a Zener-diode and resistor combination, this device can provide an effective improvement in output impedance of two orders of magnitude with lower bias current.
• No external components required
• Internal thermal-overload protection
• Internal short-circuit current limiting
| Полярность | отрицательная |
| Тип выхода | фиксированный |
| Количество выходов | 1 |
| Выходное напряжение, В | 12 |
| Максимальный ток нагрузки, А | 0.1 |
| Падение напряжения при Iвых, В (А) | 1.7(0.04) |
| Максимальное входное напряжение, В | 27 |
| Рабочая температура,°C | 0…+125 |

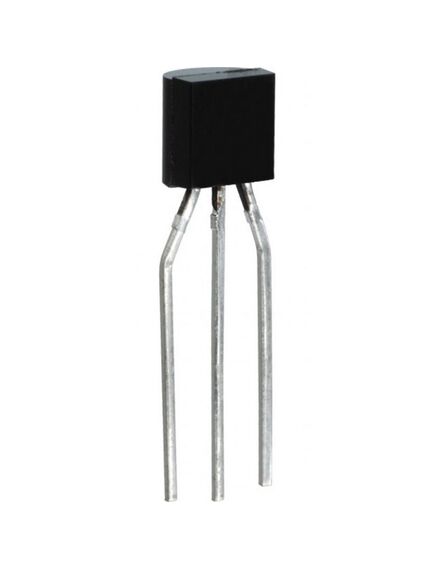

| Корпус | to-92 |
| Вес, г | 0.3 |
