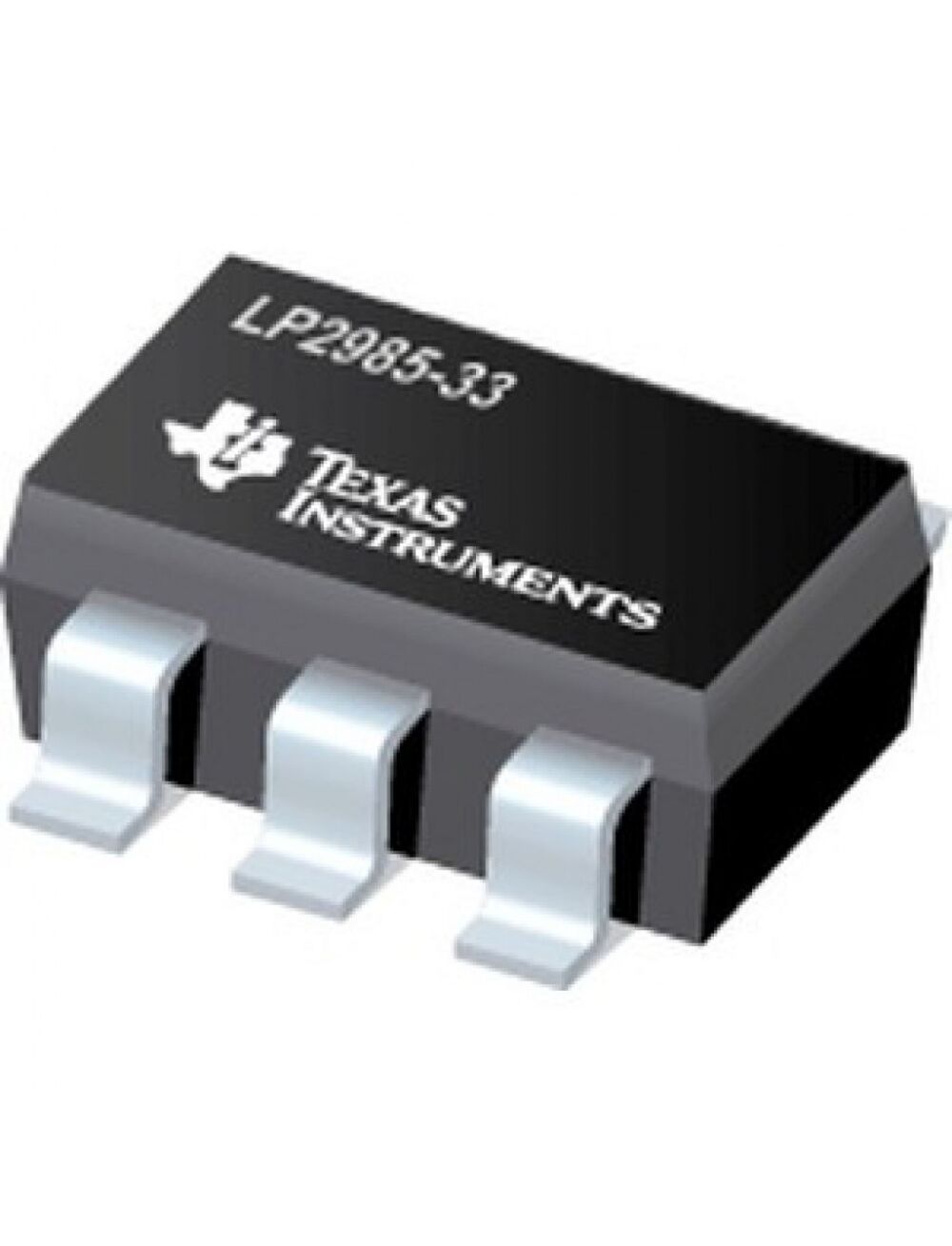

LP2985-33DBVR, линейный стабилизатор с низким падением напряжения положительной полярности, 3.3 в, 0.15 а
Описание
Описание LP2985-33DBVR
The LP2985-33DBVR is a fixed-output, low-dropout Voltage Regulator, offers exceptional, cost-effective performance for both portable and non-portable applications. Available in voltages of 1.8, 2.5, 2.8, 2.9, 3, 3.1, 3.3, 5 and 10V, the family has an output tolerance of 1% for the A version (1.5% for the non-A version) and is capable of delivering 150mA continuous load current. Standard regulator features, such as over-current and over-temperature protection, are included.
• Output Tolerance of 1% (A Grade) and 1.5% (Standard Grade)
• Ultra-low Dropout, Typically 280mV at Full Load of 150mA and 7mV at 1mA
• 16V Maximum Wide VIN Range
• 850µA at Full Load at 150mA Low IQ
• 0.01µA Typical Shutdown Current
• 30µVRMS with 10nF Bypass Capacitor Low Noise
• Stable with Low-ESR Capacitors, Including Ceramic
• Overcurrent and Thermal Protection
• High Peak-current Capability
• Green Product, No Sb/Br
| Полярность | положительная |
| Тип выхода | фиксированный |
| Количество выходов | 1 |
| Выходное напряжение, В | 3.3 |
| Максимальный ток нагрузки, А | 0.15 |
| Падение напряжения при Iвых, В (А) | 0.58(0.15) |
| Максимальное входное напряжение, В | 16 |
| Рабочая температура,°C | -40…+125 |
| Корпус | sot-23-5 |
| Вес, г | 0.08 |
