LP2980AIM5-5.0/NOPB, линейный стабилизатор с низким падением напряжения положительной полярности, 5 в, 50 ма
Описание
Описание LP2980AIM5-5.0/NOPB
The LP2980AIM5-5.0/NOPB is a 5V fixed output ultra-low-dropout (LDO) Linear Regulator designed specifically to meet the requirements of battery-powered applications. Using an optimized VIP (Vertically integrated PNP) process, the device delivers unequalled performance in all specifications critical to battery-powered designs, Dropout voltage - typically 120mV at 50mA load and 7mV at 1mA load. Ground pin current - typically 375µA at 50mA load and 80µA at 1-mA load. Sleep mode - less than 1µA quiescent current when ON/OFF pin is pulled low. Minimum part count - requires only a 1µF capacitor on the regulator output.
• Ultra-low-dropout voltage
• 0.5% Output voltage accuracy
• <1µA Quiescent current when shutdown
• Low ground pin current at all load currents
• High peak current capability (150mA typical)
• Fast dynamic response to line and load
• Low ZOUT over wide frequency range
• Overtemperature and overcurrent protection
• Green product and no Sb/Br
| Полярность | положительная |
| Тип выхода | фиксированный |
| Количество выходов | 1 |
| Выходное напряжение, В | 5 |
| Максимальный ток нагрузки, А | 0.05 |
| Падение напряжения при Iвых, В (А) | 0.22(0.05) |
| Максимальное входное напряжение, В | 16 |
| Рабочая температура,°C | -40…+125 |

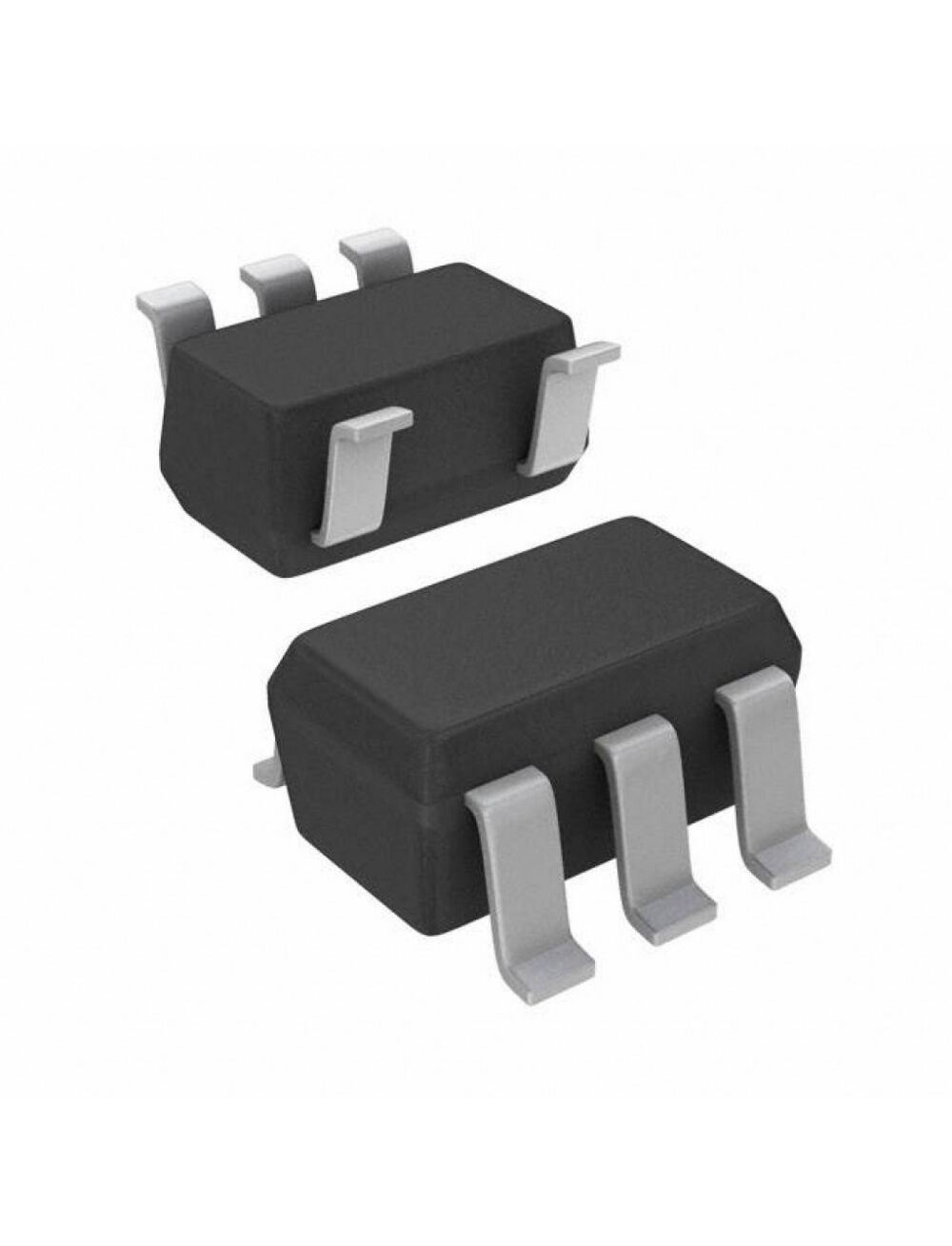

| Корпус | sot-23-5 |
| Вес, г | 0.08 |
