LP2950ACZ-3.3/NOPB, линейный стабилизатор с низким падением напряжения положительной полярности, 3.3 в, 0.1 а
Описание
Описание LP2950ACZ-3.3/NOPB
The LP2950ACZ-3.3/NOPB is a fixed Micropower Voltage Regulator with very low quiescent current and very low dropout voltage. This regulator ideally suited for use in battery-powered systems. Careful design of the regulator has minimized all contributions to the error budget. This includes a tight initial tolerance (0.5% typical.), extremely good load and line regulation and a very low output voltage temperature coefficient, making the part useful as a low-power voltage reference. One such feature is an error flag output which warns of a low output voltage, often due to falling batteries on the input. It may be used for a power-on reset. A second feature is the logic-compatible shutdown input which enables the regulator to be switched on and off. Also, the part may be pin-strapped for a 3.3V output.
• High accuracy output voltage
• Extremely low quiescent current
• Low dropout voltage
• Extremely tight load and line regulation
• Very low temperature coefficient
• Use as regulator or reference
• Needs minimum capacitance for stability
• Current and thermal limiting
• Stable with low-ESR output capacitors
• Green product and no Sb/Br
| Полярность | положительная |
| Тип выхода | фиксированный |
| Количество выходов | 1 |
| Выходное напряжение, В | 3.3 |
| Максимальный ток нагрузки, А | 0.1 |
| Падение напряжения при Iвых, В (А) | 0.6(0.1) |
| Максимальное входное напряжение, В | 30 |
| Рабочая температура,°C | -40…+125 |

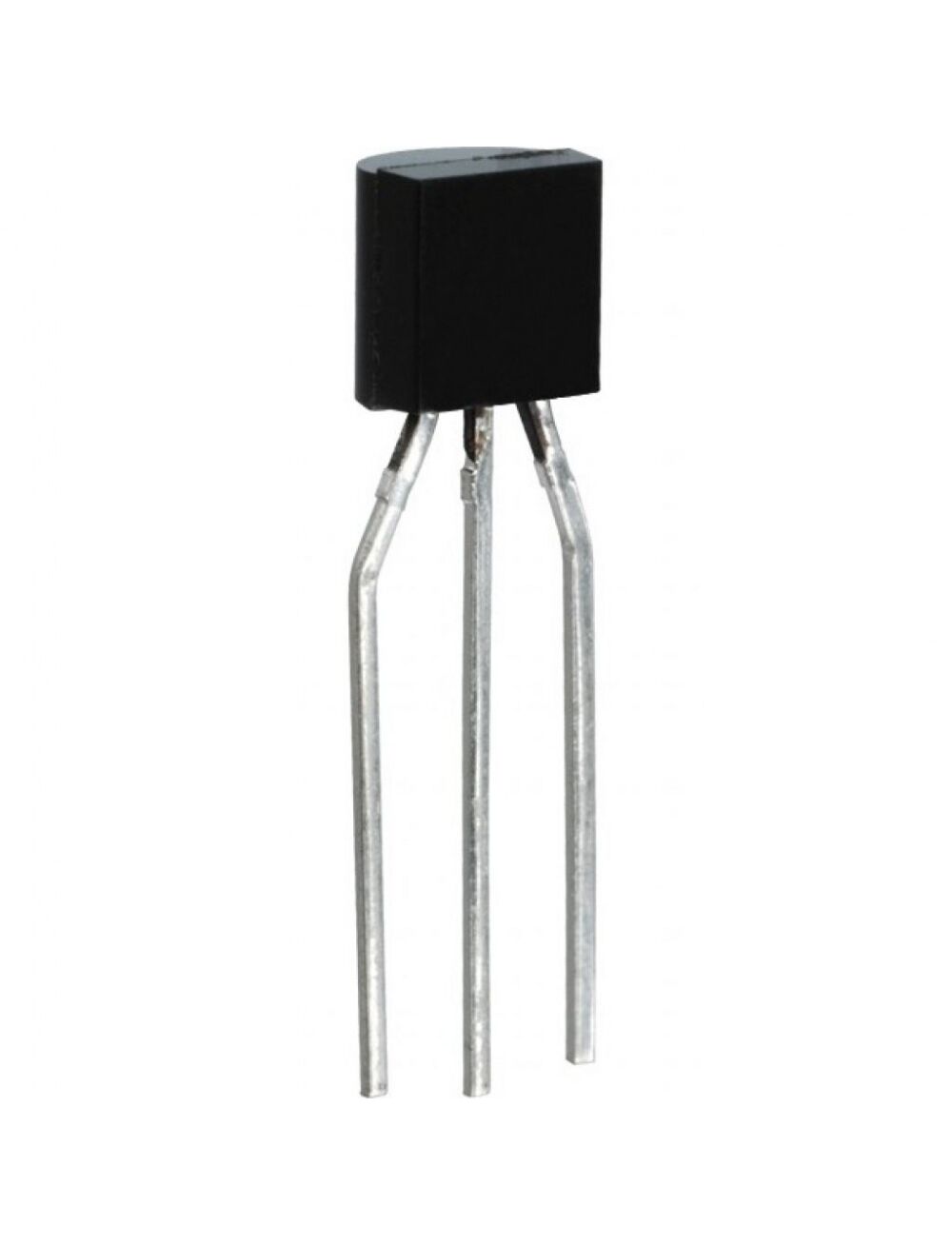

| Корпус | to-92 |
| Вес, г | 0.3 |
