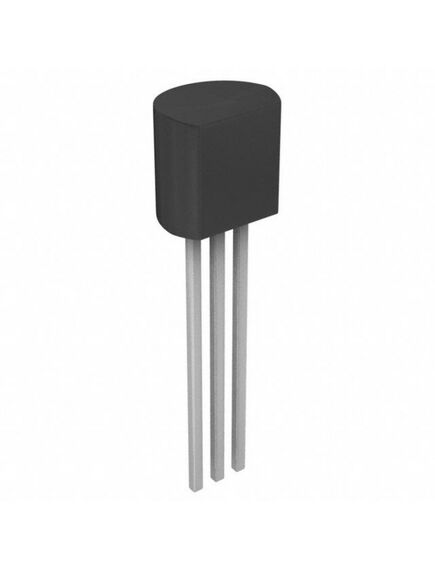

LM79L05ACZ/NOPB, линейный стабилизатор с низким падением напряжения отрицательной полярности, 5 в, 0.1 а
Описание
Описание LM79L05ACZ/NOPB
The LM79L05ACZ/NOPB is a 3-terminal Negative Voltage Regulator features fixed output voltages of -5, -12 and -15V with output current capabilities in excess of 100mA. This device is designed using the latest computer techniques for optimizing the packaged IC thermal/electrical performance. The device when combined with a minimum output capacitor of 0.1µF, exhibits an excellent transient response, a maximum line regulation of 0.07% VO/V and a maximum load regulation of 0.01% VO/mA. The device also includes, as self-protection circuitry - safe operating area circuitry for output transistor power dissipation limiting, a temperature independent short circuit current limit for peak output current limiting and a thermal shutdown circuit to prevent excessive junction temperature. Although designed primarily as fixed voltage regulators, these devices may be combined with simple external circuitry for boosted and/or adjustable voltages and currents.
• Internal short-circuit, thermal and safe operating area protection
• Easily adjustable to higher output voltages
• Easily compensated with a small 0.1µF output capacitor
• Preset output voltage error is less than ±5% over load, line and temperature
• Green product and no Sb/Br
| Полярность | отрицательная |
| Тип выхода | фиксированный |
| Количество выходов | 1 |
| Выходное напряжение, В | 5 |
| Максимальный ток нагрузки, А | 0.1 |
| Максимальное входное напряжение, В | 35 |
| Рабочая температура,°C | 0…+70 |
| Корпус | to-92 |
| Вес, г | 0.3 |
