LM78L12ACZ/NOPB, линейный стабилизатор с низким падением напряжения положительной полярности, 12 в, 0.1 а
Описание
Описание LM78L12ACZ/NOPB
The LM78L12ACZ/NOPB is a 3-terminal Positive Regulator available with several fixed output voltages making it useful in a wide range of applications. When used as a Zener diode/resistor combination replacement, the device usually results in an effective output impedance improvement of two orders of magnitude and lower quiescent current. This regulator can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. The voltages available allow the device to be used in many applications. With adequate heat sinking the regulator can deliver 100mA output current. Current limiting is included to limit the peak output current to a safe value. Safe area protection for the output transistors is provided to limit internal power dissipation. If internal power dissipation becomes too high for the heat sinking provided, the thermal shutdown circuit takes over preventing the IC from overheating.
• Internal thermal overload protection
• Output transistor safe area protection
• Internal short circuit current limit
• Output voltage tolerances of ±5% over the temperature range
• Green product and no Sb/Br
| Полярность | положительная |
| Тип выхода | фиксированный |
| Количество выходов | 1 |
| Выходное напряжение, В | 12 |
| Максимальный ток нагрузки, А | 0.1 |
| Максимальное входное напряжение, В | 35 |
| Рабочая температура,°C | 0…+125 |

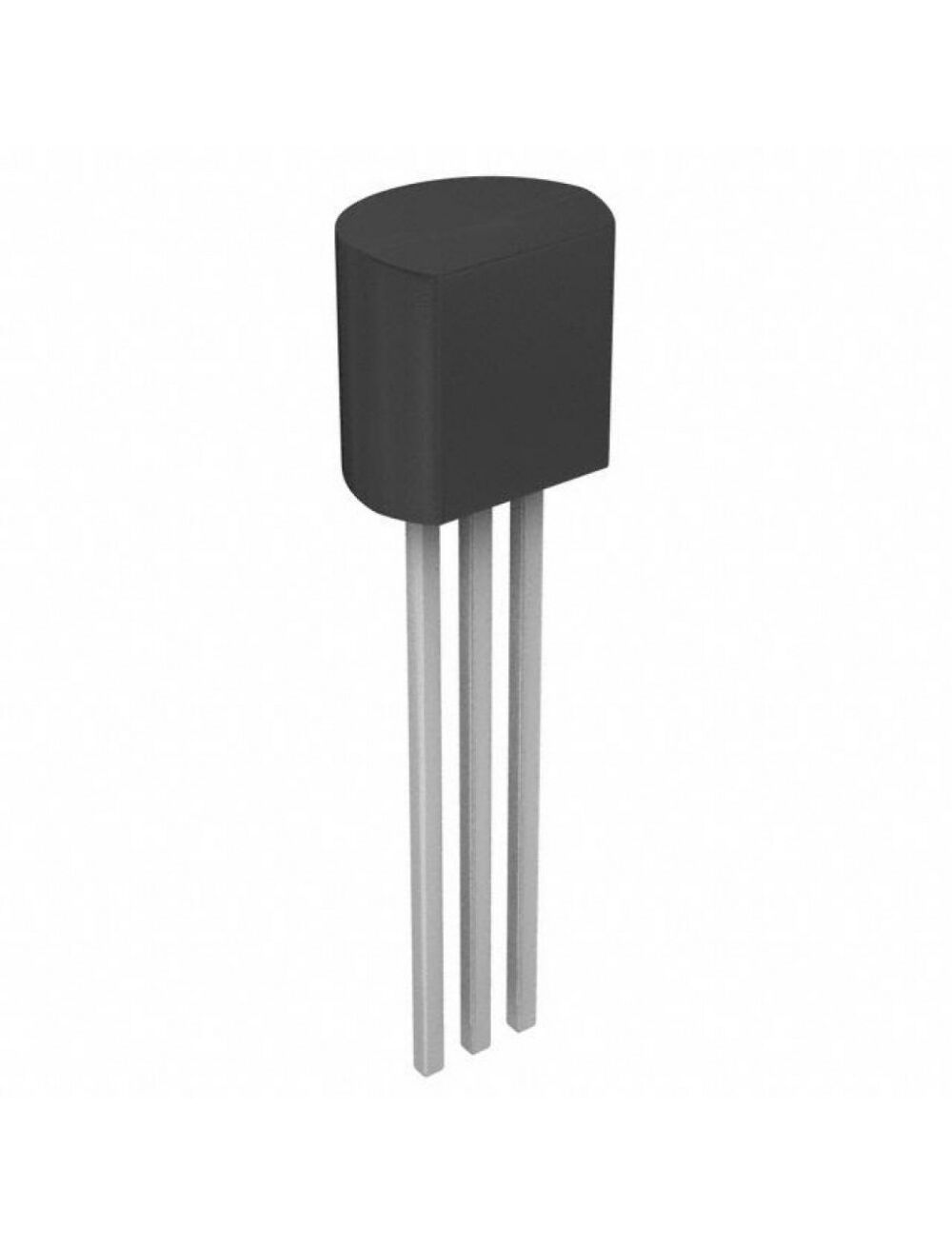

| Корпус | to-92 |
| Вес, г | 0.3 |
