LM78L05ACM/NOPB, линейный стабилизатор с низким падением напряжения положительной полярности, 5 в, 0.1 а
Описание
Описание LM78L05ACM/NOPB
The LM78L05ACM/NOPB is a 3-terminal Positive Regulator available with several fixed output voltages making them useful in a wide range of applications. When used as a Zener diode/resistor combination replacement, the LM78LXX usually results in an effective output impedance improvement of two orders of magnitude and lower quiescent current. This regulator can provide local on card regulation, eliminating the distribution problems associated with single point regulation. The voltages available allow the regulator to be used in logic systems, instrumentation, HiFi and other solid state electronic equipment.
• No external components
• Output voltage tolerances of ±5% over the temperature range
• Internal thermal overload protection
• Output transistor safe area protection
• Internal short-circuit current limit
• Green product and no Sb/Br
| Полярность | положительная |
| Тип выхода | фиксированный |
| Количество выходов | 1 |
| Выходное напряжение, В | 5 |
| Максимальный ток нагрузки, А | 0.1 |
| Максимальное входное напряжение, В | 35 |
| Рабочая температура,°C | 0…+125 |

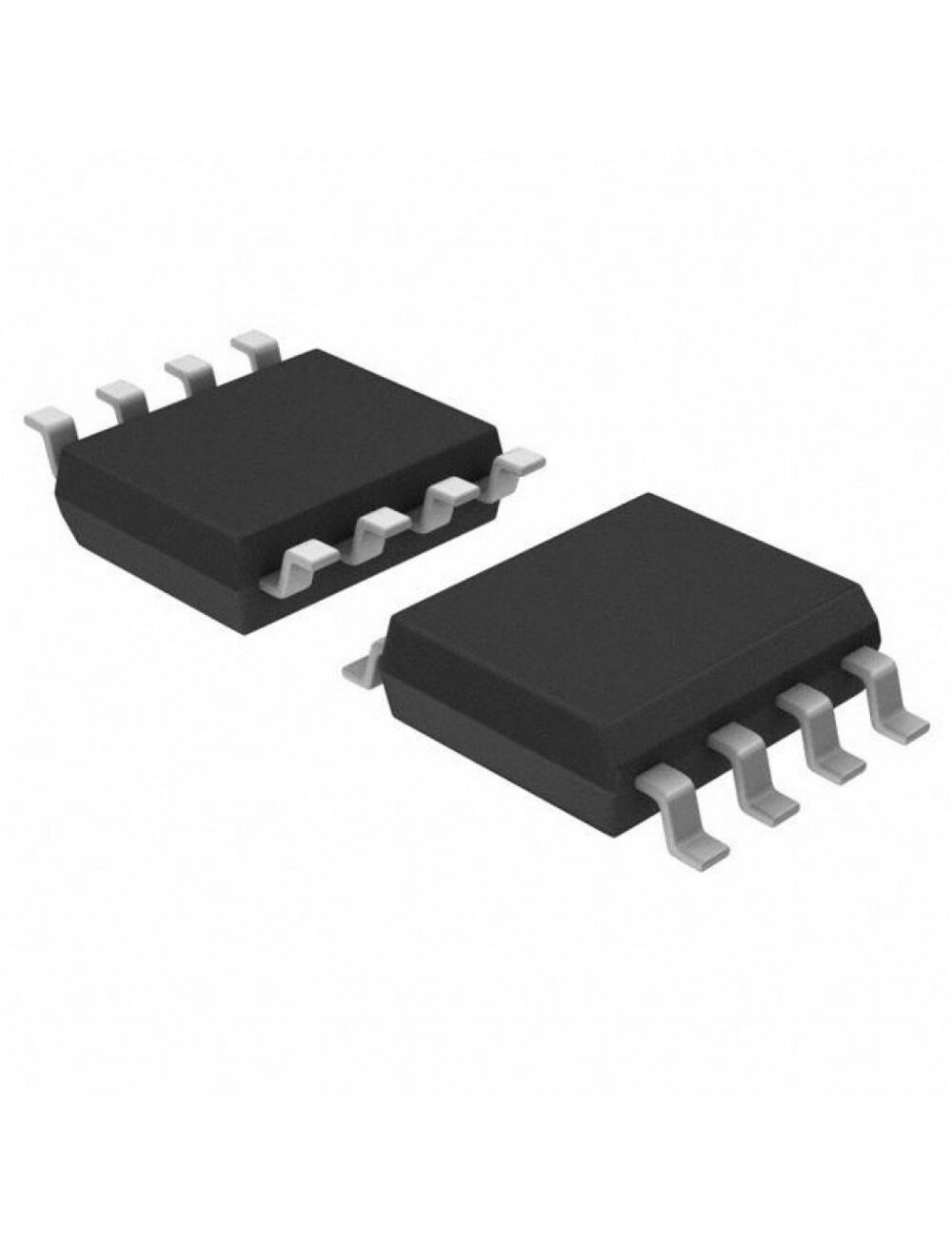

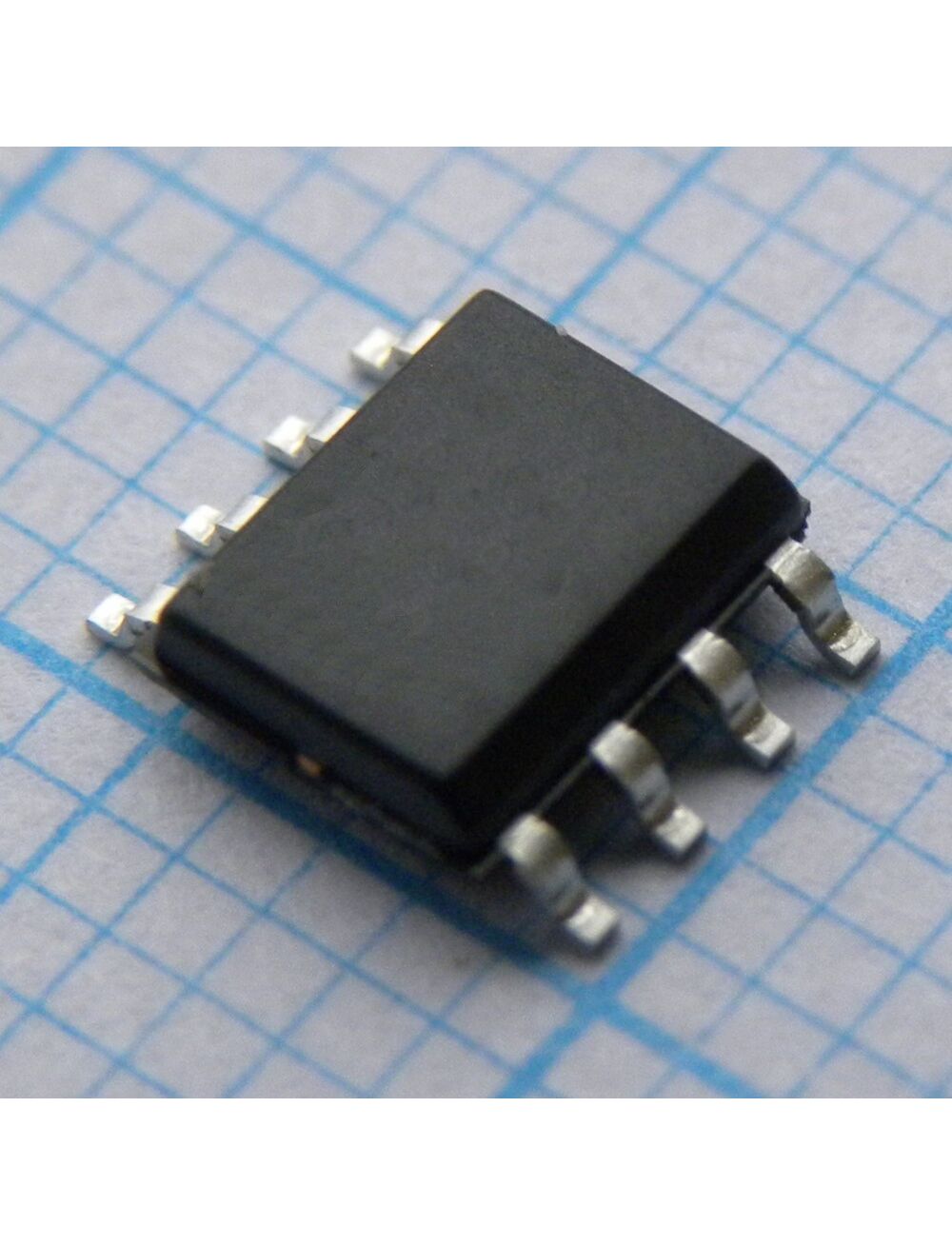

| Корпус | soic-8 |
| Вес, г | 0.15 |
