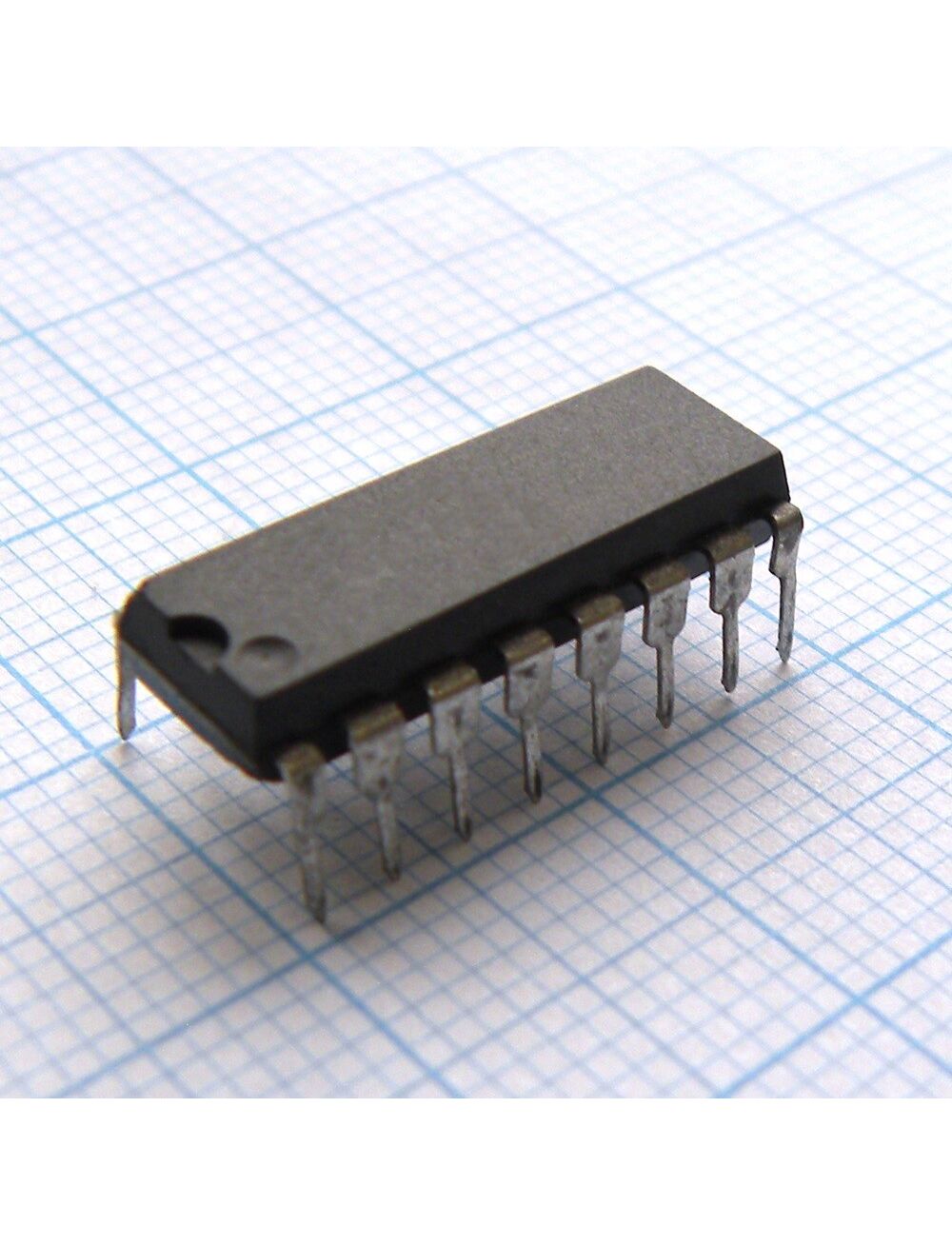

SG3525ANG, шим контроллер связь по напряжению 16-dip
Описание
Описание SG3525ANG
The SG3525ANG is a pulse width modulator Control Circuit offers improved performance and lower external parts count when implemented for controlling all types of switching power supplies. The on-chip +5.1V reference is trimmed to ±1% and the error amplifier has an input common-mode voltage range that includes the reference voltage, thus eliminating the need for external divider resistors. A sync input to the oscillator enables multiple units to be slaved or a single unit to be synchronized to an external system clock. A wide range of dead-time can be programmed by a single resistor connected between the CT and discharge pins. This device also features built-in soft-start circuitry, requiring only an external timing capacitor. A shutdown pin controls both the soft-start circuitry and the output stages, providing instantaneous turn off through the PWM latch with pulsed shutdown, as well as soft-start recycle with longer shutdown commands.
• Separate oscillator sync pin
• Adjustable dead-time control
• Input under-voltage lockout
• Latching PWM to prevent multiple pulses
• Pulse-by-pulse shutdown
| Максимальная рабочая температура | +70 °C |
| Длина | 19.55мм |
| Время нарастания | 100нс |
| Контакт вкл./выкл. | Yes |
| Производитель | ON Semiconductor |
| Тип корпуса | PDIP |
| Тип монтажа | Монтаж на плату в отверстия |
| Минимальная рабочая температура | 0 °C |
| Ширина | 6.85мм |
| Время спада | 50нс |
| Высота | 3.43мм |
| Максимальная частота преобразования | 400 кГц |
| Число контактов | 16 |
| Размеры | 19.55 x 6.85 x 3.43мм |
| Коэффициент заполнения | 49% |
| Метод управления | Напряжение |
| Количество выходов ШИМ | 2 |
| Синхронный контакт | Yes |
| Выходной ток | 400 mA |
| Типичное рабочее напряжение питания | 8 → 35 V |
| Вес, г | 1.628 |
