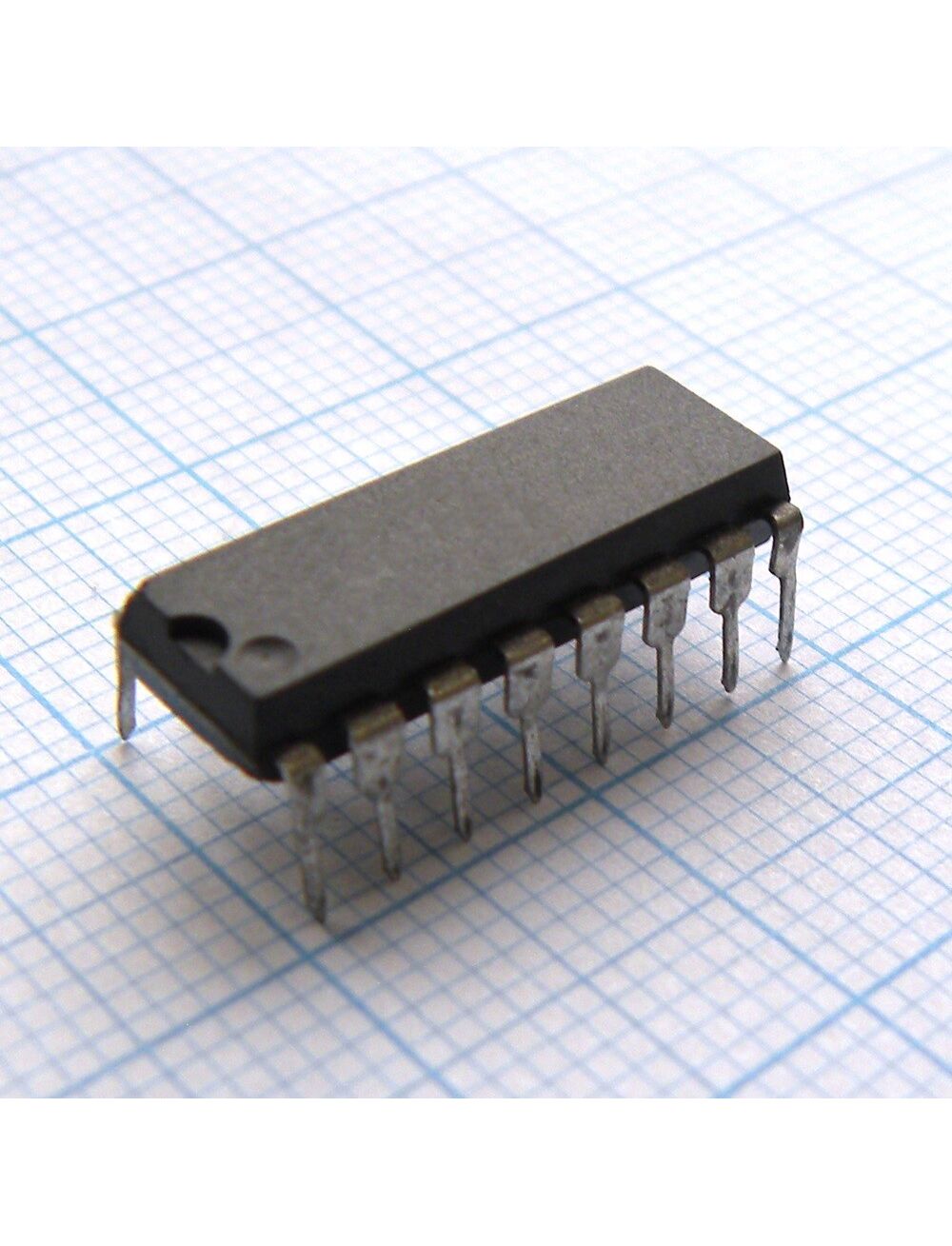

SG3525AN, шим контроллер связь по напряжению 400ма 16-pin pdip туба

КОД: SG3525AN

284.10 ₽

Нет в наличии

Задать вопрос

Описание

Описание SG3525AN

PWM Controllers, STMicroelectronics
Pulse-width modulator (PWM) controllers can support isolated and non-isolated AC-DC and DC-DC switch mode power supplies. They are based on the most popular topologies in both single-ended, such as fly-back, forward or quasi-resonant controllers, and double-ended configurations, such as asymmetrical half-bridge, for Switch Mode Power Supplies (SMPS).
The PMW controllers also integrate a comprehensive set of protections for enhanced robustness and reliability.

PWM Controller Type	Switching Regulator
Maximum Operating Temperature	+150 °C
Line Regulation	20 mV
Length	20мм
Brand	STMicroelectronics
Package Type	PDIP
Minimum Input Voltage	8 V
Load Regulation	50 mV
Mounting Type	Монтаж на плату в отверстия
Minimum Operating Temperature	-55 °C
Width	7.1mm
Height	5.1мм
Maximum Switching Frequency	400 kHz
Output Type	Регулируемый
Supply Voltage	4.5 → 35V
Pin Count	16
Dimensions	20 x 7.1 x 5.1mm
Maximum Input Voltage	35 V
Output Voltage	5 → 5.2 V
Number of PWM Outputs	2
Output Current	50 (Reference) mA, 500 (Source) mA
Typical Operating Supply Voltage	Maximum of 35 V
Вес, г	2.1
