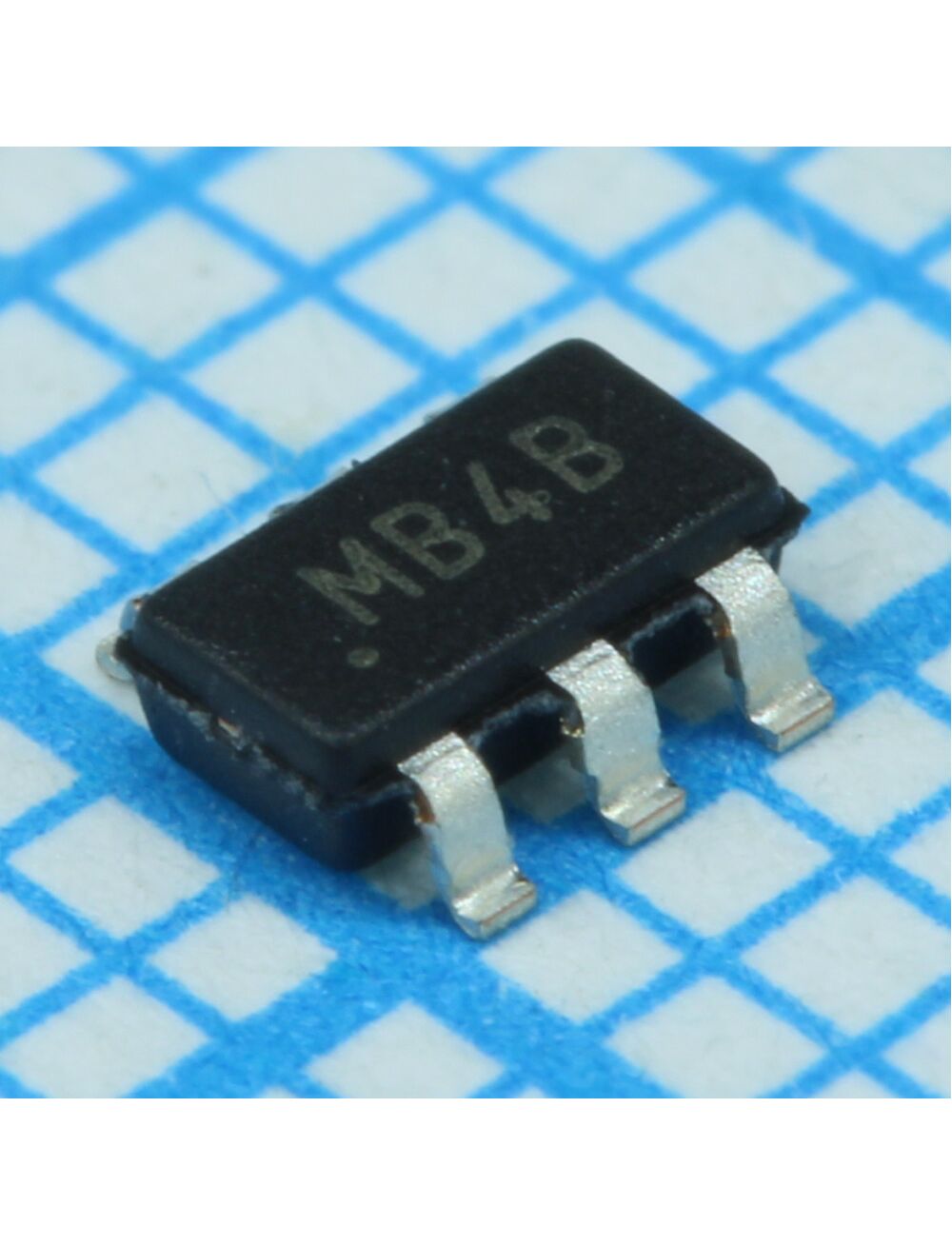

TPS3808G01DBVT, монитор питания с программируемой задержкой и ручным сбросом
Описание
Описание TPS3808G01DBVT
The TPS3808G01DBVT is a Low Quiescent Current Programmable Delay Supervisory Circuit that monitors system voltages from 0.4 to 5V, asserting an open-drain RESET signal when the SENSE voltage drops below a preset threshold or when the manual reset (MR) pin drops to a logic low. The RESET output remains low for the user-adjustable delay time after the SENSE voltage and manual reset (MR) return above the respective thresholds. The TPS3808 device uses a precision reference to achieve 0.5% threshold accuracy for VIT <=3.3V. The reset delay time can be set to 20ms by disconnecting the CT pin, 300ms by connecting the CT pin to VDD using a resistor or can be user-adjusted between 1.25ms and 10s by connecting the CT pin to an external capacitor. The TPS3808 device has a very low typical quiescent current of 2.4µA, so it is well-suited to battery-powered applications.
• Power-on reset generator with adjustable delay time (1.25ms to 10s)
• Very low quiescent current (2.4µA typical)
• High threshold accuracy (0.5% typical)
• Fixed threshold voltages for standard voltage rails from 0.9 to 5V & adjustable voltage down to 0.4V
• Manual reset (MR) input
• Open-drain reset output
• Green product and no Sb/Br
| Тип | simple reset/power-on reset |
| Количество проверяемых напряжений | 1 |
| Выход | open drain or open collector |
| Сброс | active low |
| Сброс ожидания, мс (Min) | adj |
| Пороговое напряжение, В | adj |
| Рабочая температура, °C | -40…+125 |

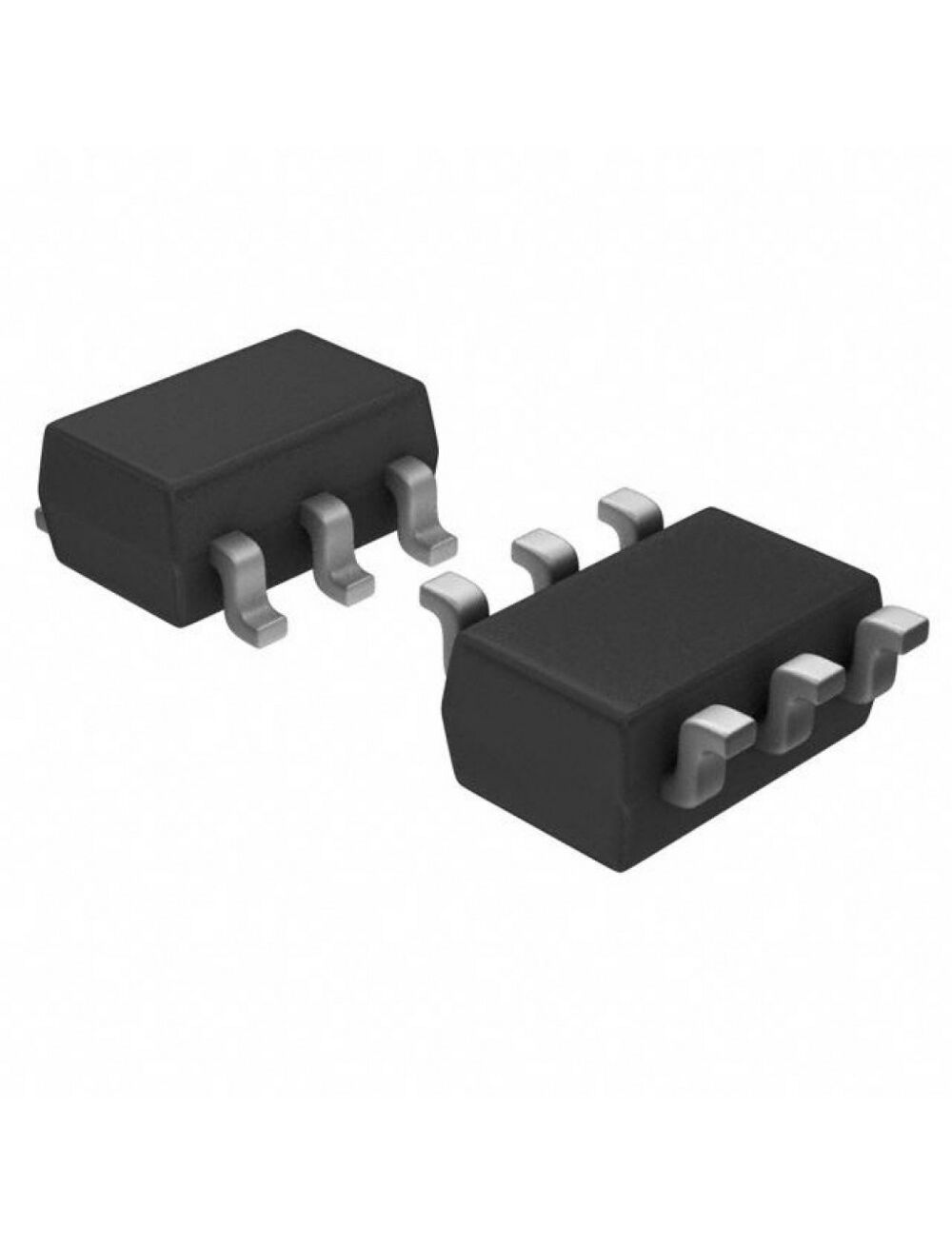

| Корпус | sot-23-6 |
| Вес, г | 0.403 |
