REF3025AIDBZR, источник опорного напряжения, 2.5 в
Описание
Описание REF3025AIDBZR
The REF3025 series precision low-power Voltage reference for use with temperature and pressure transmitters. It offers excellent temperature drift and initial accuracy while operating at a quiescent current of 42µA (typical). The low power consumption and the relatively high precision make the REF30xx very attractive for loop-powered industrial applications such as pressure and temperature transmitter applications. The REF30xx is easy to use in intrinsically safe and explosion-proof applications because it does not require a load capacitor to be stable. The REF30xx is specified over the extended industrial temperature range of -40 to +125°C. The REF30xx operates with supplies within 1mV of output voltage under zero-load conditions. The low dropout along with small size and low power consumption make the REF30xx ideal for battery-powered applications.
• 1mV Low dropout voltage
• 25mA High output current
• 42µA Typical low quiescent current
• Green product and no Sb/Br
| Тип ИОН | последовательный |
| Тип выхода | фиксированный |
| Выходное напряжение | 2.5 В |
| Выходной ток | 25 мА |
| Точность | ±0.2 % |
| Входное напряжение | 2.55…5.5 В |
| Ток потребления | 50 мкА |
| Рабочая температура | -40…+125 C (TA) |

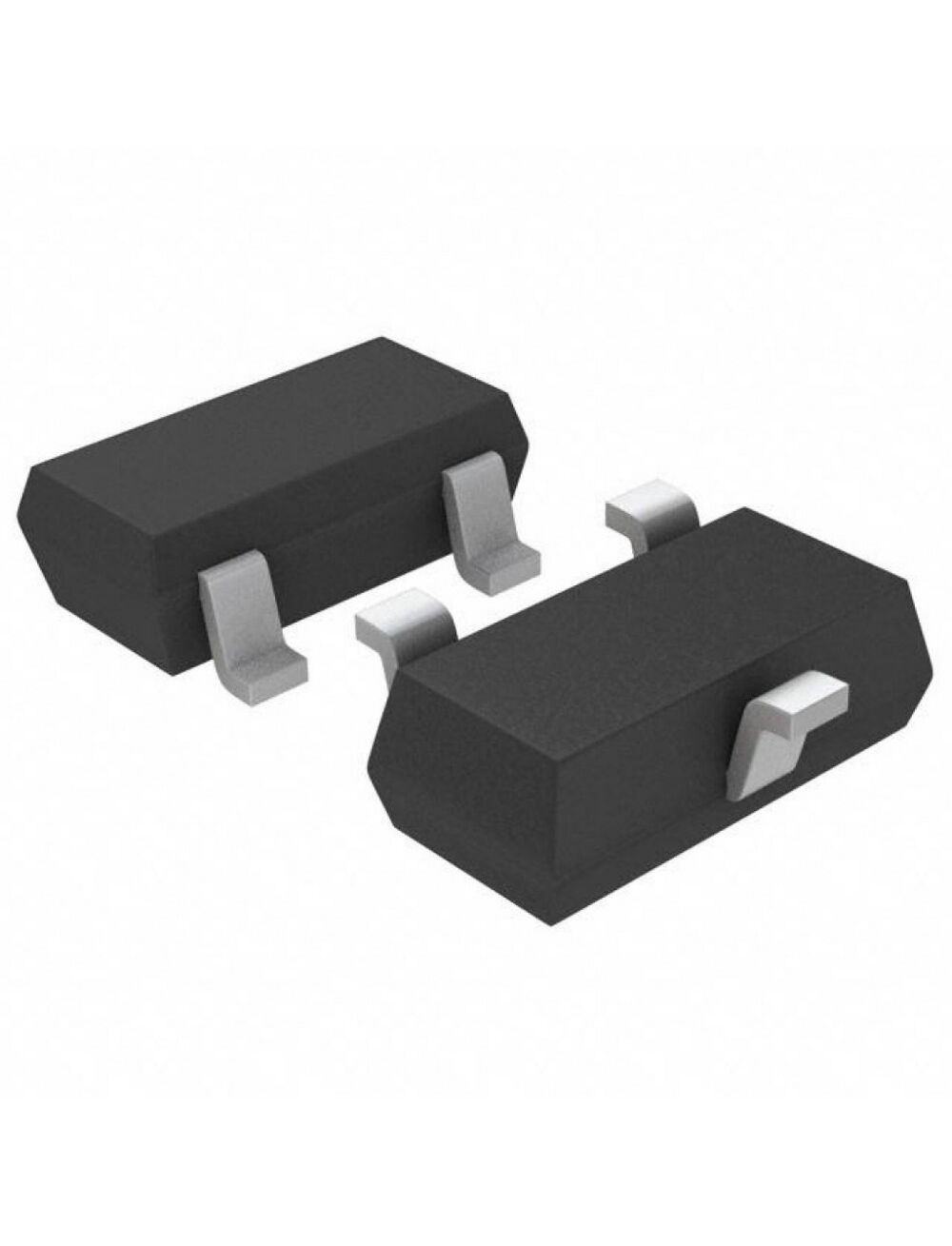

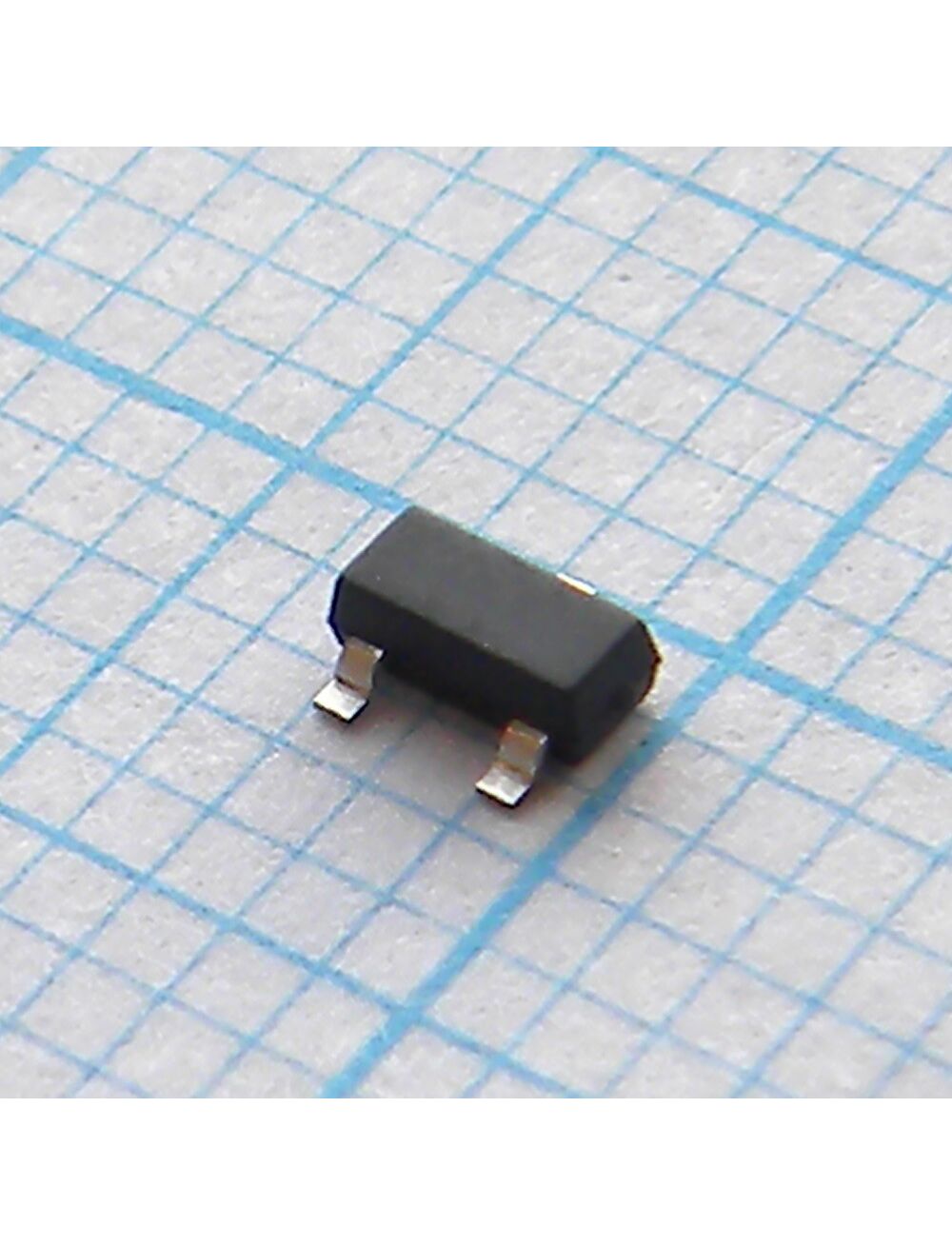

| Корпус | SOT-23-3 |
| Вес, г | 0.05 |
