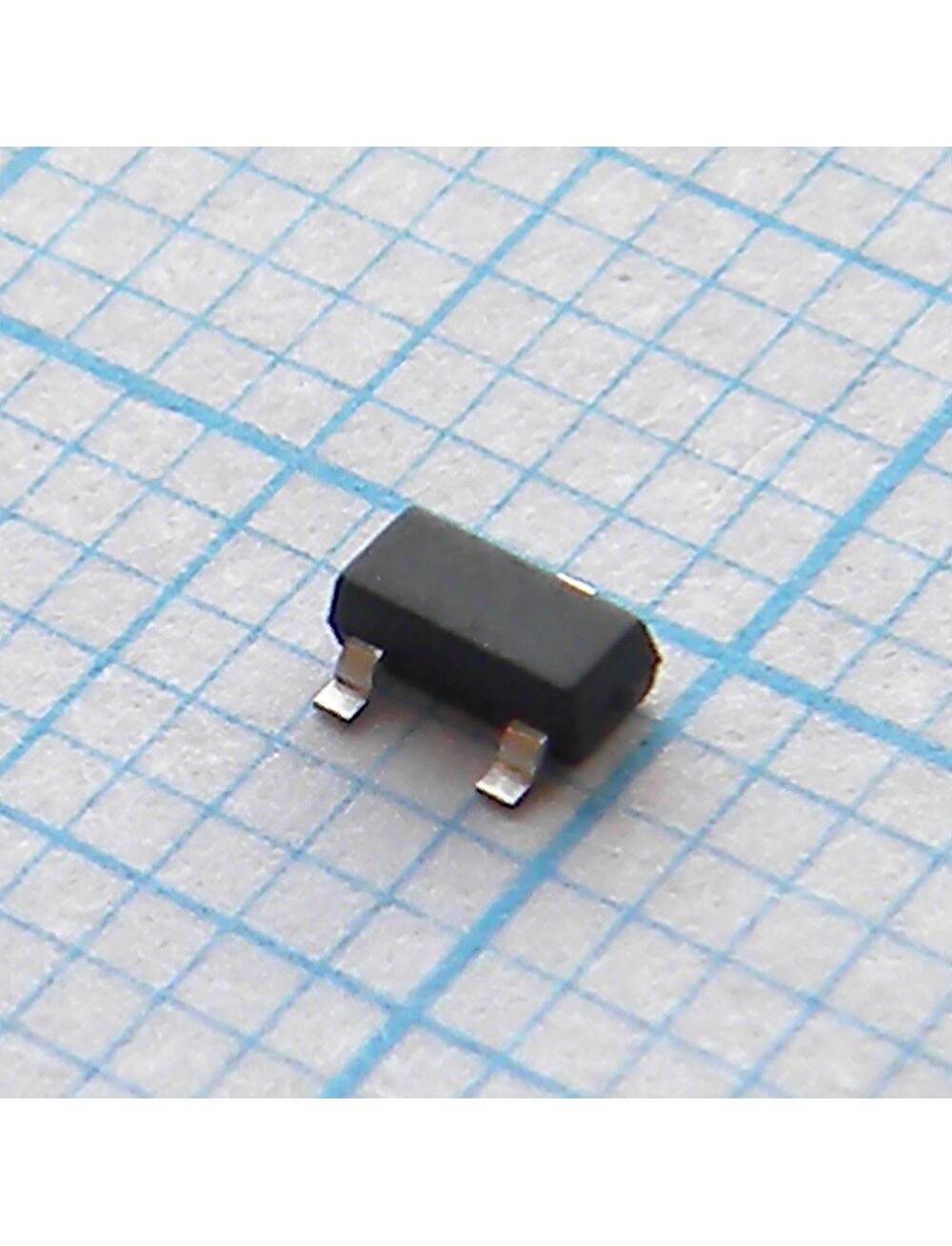

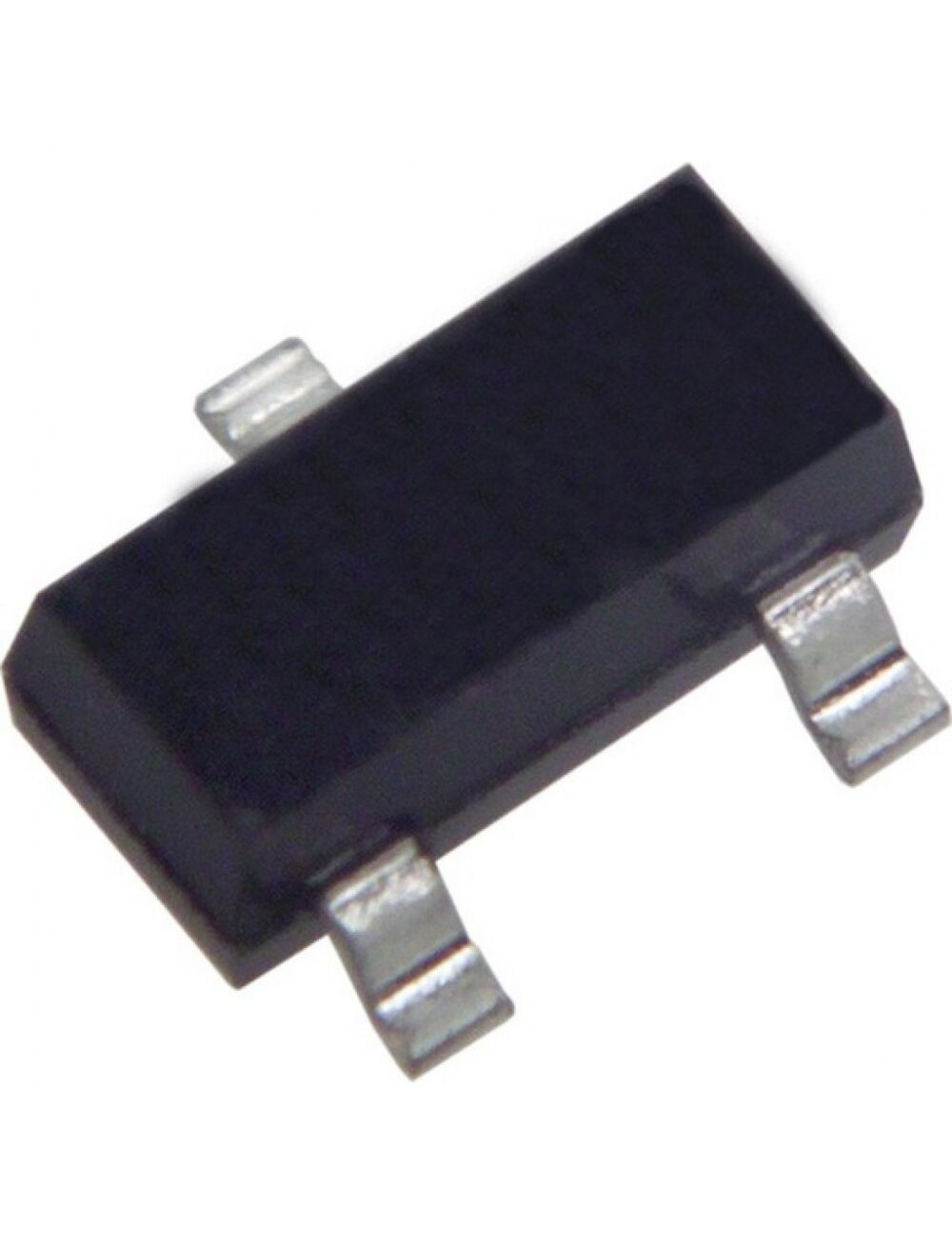

LM4040BIM3-2.5/NOPB, источник опорного напряжения, 2.5 в
Описание
Описание LM4040BIM3-2.5/NOPB
The LM4040BIM3-2.5/NOPB is a Precision Micropower Shunt Voltage Reference eliminates the need for an external stabilizing capacitor while ensuring stability with any capacitive load, thus making the LM4040 easy to use. Further reducing design effort is the availability in fixed reverse breakdown voltage of 2.5V. This voltage reference uses a fuse and Zener-zap reverse breakdown voltage trim during wafer sort to ensure that the prime parts have an accuracy of better than ±0.1% (A grade) at 25°C. Band gap reference temperature drift curvature correction and low dynamic impedance ensure stable reverse breakdown voltage accuracy over a wide range of operating temperatures and currents.
• No output capacitor required
• Tolerates capacitive loads
• 35µVrms Low output noise
• Green product and no Sb/Br
| Тип ИОН | Шунтовой |
| Тип выхода | фиксированный |
| Выходное напряжение | 2.5 В |
| Выходной ток | 15 мА |
| Точность | ±0.2 % |
| Рабочая температура | -40…+85 C (TA) |
| Корпус | SOT-23-3 |
| Вес, г | 0.05 |
