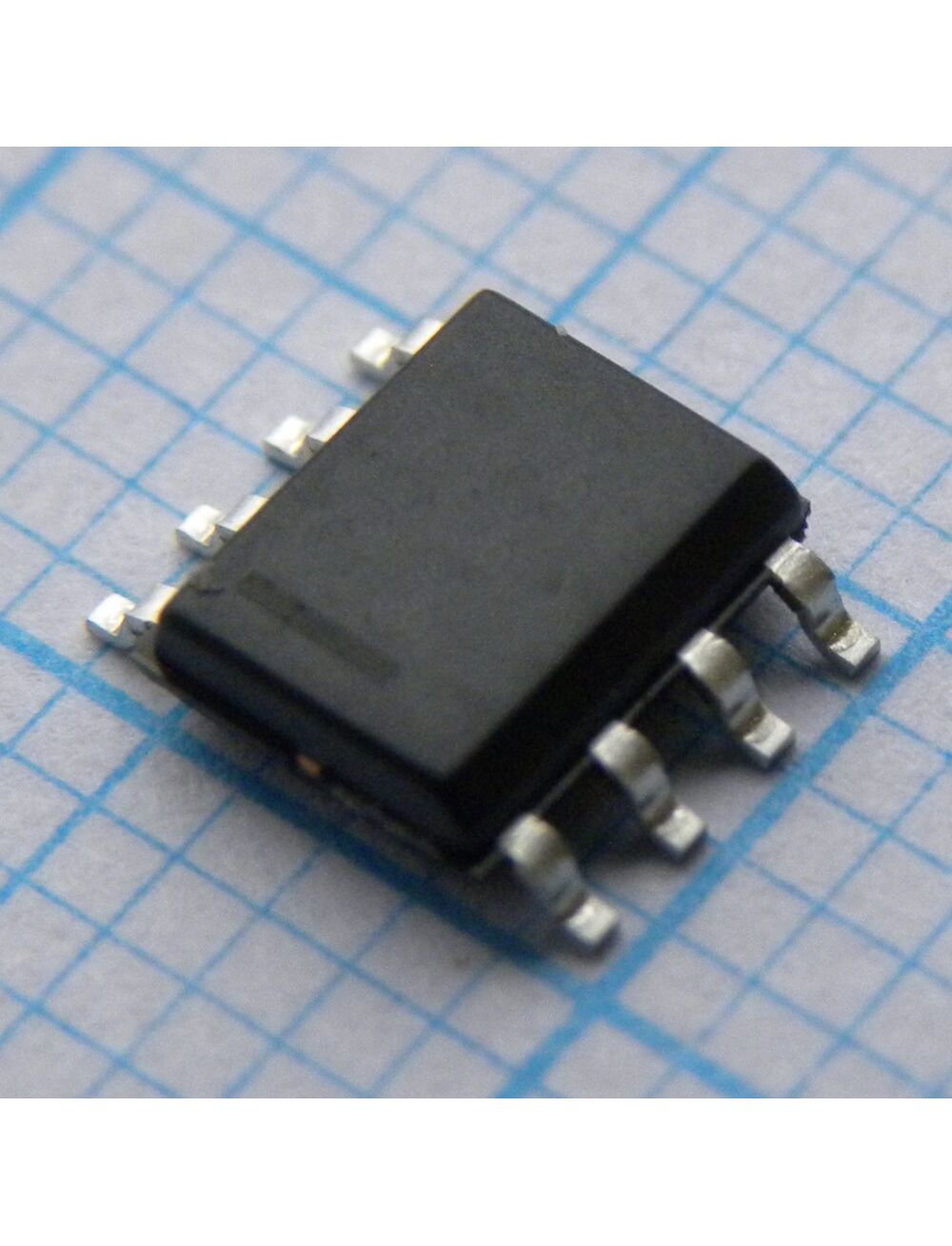

MAX5035DASA+, преобразователь постоянного тока понижающий подстраиваемый 1а
Описание
Описание MAX5035DASA+
The MAX5035DASA+ is a MAXPower high-efficiency Step-down DC-DC Converter operates from an input voltage up to 76V and consumes only 270µA quiescent current at no load. This pulse-width modulated (PWM) converter operates at a fixed 125kHz switching frequency at heavy loads and automatically switches to pulse-skipping mode to provide low quiescent current and high efficiency at light loads. The MAX5035 includes internal frequency compensation simplifying circuit implementation. The device uses an internal low on-resistance, high-voltage, DMOS transistor to obtain high efficiency and reduce overall system cost. This device includes under-voltage lockout, cycle-by-cycle current limit, hiccup mode output short-circuit protection and thermal shutdown. The MAX5035 delivers up to 1A output current.
• Efficiency up to 94%
• Internal 0.4R high-side DMOS FET
• 350µA quiescent current at no load and 10µA shutdown current
• Internal frequency compensation
• Thermal shutdown and short-circuit current limit
| Тип преобразователя | step-down |
| Диапазон входных напряжений, В | 7.5…76 |
| Диапазон выходных напряжений, В | 1.25…13.2 |
| Максимальный выходной ток, А | 1 |
| Рабочая частота, кГц | 125 |
| Температурный диапазон, C | -40…125 |
| Тип корпуса | so8 |
| Вес, г | 0.15 |
