LM2577S-ADJ/NOPB, преобразователь постоянного тока повышающий 3 а вход 3.5...40в выход 5...60в -40...+125°с
Описание
Описание LM2577S-ADJ/NOPB
The LM2577S-ADJ/NOPB is a SIMPLE SWITCHER® low component count Step-up Voltage Regulator provides all of the power and control functions for step-up (boost), flyback and forward converter switching regulators. This regulator is available in adjustable voltage version and requiring a minimum number of external components. This monolithic integrated circuit voltage regulator associated protection circuitry, consisting of current and thermal limiting and under-voltage lockout. Other features includes a 52kHz fixed-frequency oscillator that requires no external components, a soft start mode to reduce in-rush current during start-up and current mode control for improved rejection of input voltage and output load transients.
• Requires few external components
• NPN output switches 3A can stand-off 65V
• Current-mode operation for improved transient response, line regulation and current limit
• Soft-start function reduces in-rush current during start-up
• Output switch protected by current limit, under-voltage lockout and thermal shutdown
| Тип преобразователя | step-up |
| Диапазон входных напряжений, В | 3.5…40 |
| Диапазон выходных напряжений, В | 1.23…65 |
| Максимальный выходной ток, А | 3 |
| Рабочая частота, кГц | 52 |
| Температурный диапазон, C | -40…+125 |

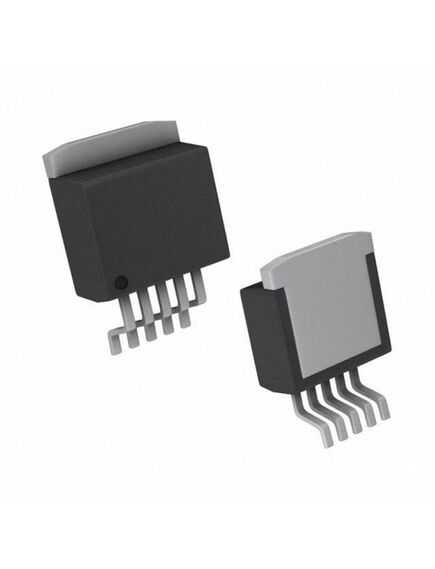

| Тип корпуса | ddpak(to-263-5) |
| Вес, г | 2.8 |
