LM2576T-5.0/NOPB, преобразователь постоянного тока понижающий 5в/3а 52кгц
Описание
Описание LM2576T-5.0/NOPB

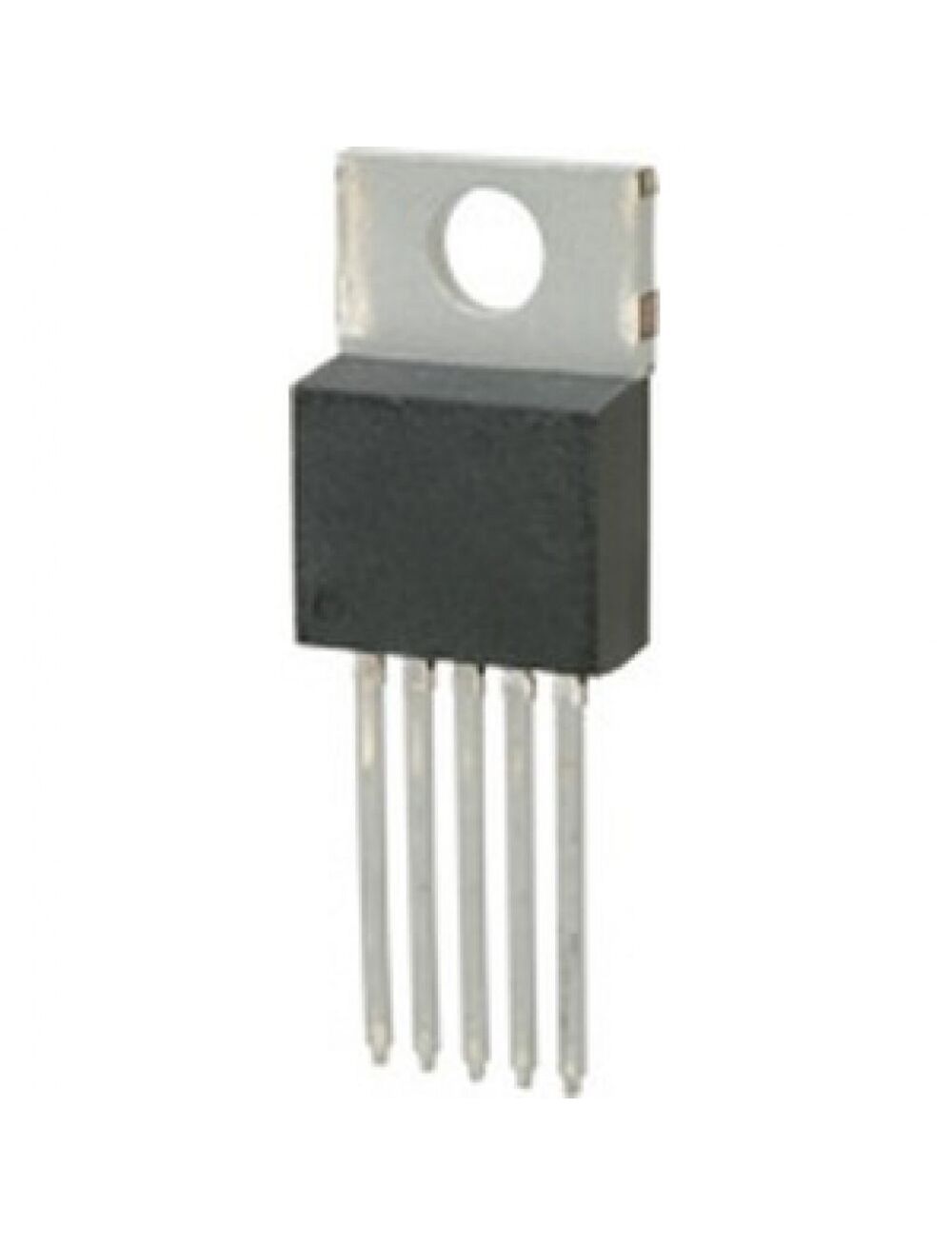

The LM2576T-5.0/NOPB is a fixed output SIMPLE SWITCHER step down voltage regulator in 5 pin TO-220 package. This regulator is a monolithic integrated circuit that provides all active functions for a step down (buck) switching regulator. This regulator requires a minimum number of external components and features internal frequency compensation, fixed frequency oscillator. The LM2576 offers high efficiency replacement for popular three terminal linear regulators. It substantially reduces size of heat sink and in some cases no heat sink is required. Standard series of inductors are optimized for use with LM2576 step down regulator. This feature greatly simplifies the design of switch mode power supplies. External shut down featuring 50µA (typical) standby current.
• Fixed output voltage is 5V
• 3A output current
• Wide input voltage range from 4V to 40V
• Requires only 4 external components
• 52KHz fixed frequency internal oscillator
• TTL shutdown capability and low power standby mode
• Excellent line and load regulation
• High efficiency up to 77%
• Thermal shutdown and current limit protection
• Operating temperature range -40°C to 125°C
| Максимальный ток нагрузки, А | 3 |
| Выходное напряжение, В | 5 |
| Диапазон допустимых входных напряжений, В | 40 |
| Корпус | to220-5 |
| Вес, г | 3 |
