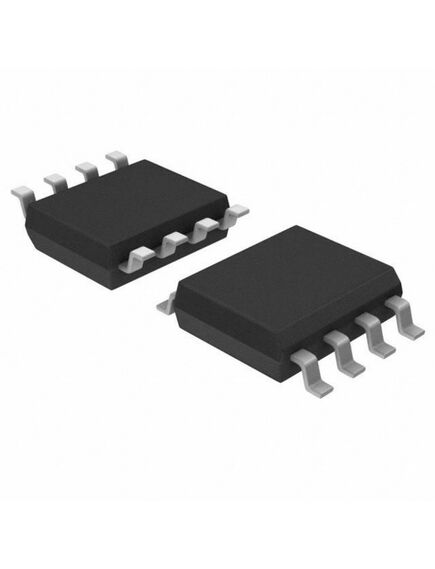

M24C04-WMN6P, энергонезависимое ппзу 4к-бит 400кгц 8so
Описание
Описание M24C04-WMN6P
The M24C04-WMN6P is a 4Kbit (512 x 8bit) serial I2C bus EEPROM (Electrically Erasable Programmable Memory) in 8 pin SOIC package. The device supports I2C protocol. The data transfer can only be initiated by bus master which will also provide serial clock for synchronization. The M24C04-WMN6P device always act as slave during communication.
• Two wire I2C serial interface supports 400KHz protocol
• Single supply voltage range from 2.5V to 5.5V
• Write control input
• Byte and page write (up to 16Bytes)
• Random and sequential read modes
• Self timed programming cycle
• Automatic address incrementing
• Enhanced ESD/latch up protection
• More than 1 million write cycles and more than 40 year data retention
• Operating temperature range from -40°C to 85°C
| Серия | m24c |
| Тип памяти | eeprom |
| Объем памяти | 4 kбит(512x8) |
| Максимальная тактовая частота (скорость) | 400 кгц |
| Интерфейс | i2c, 2-wire serial |
| Напряжение питания, В | 2.5…5.5 |
| Рабочая температура, °C | -40…+85 |
| Корпус | soic-8(3.9мм) |
| Напряжение питания | 2.5…5.5 в |
| Рабочая температура | -40…+85 гр.c |
| Вес, г | 0.15 |
