M24C02-WMN6P, энергонезависимое ппзу шина i2c 256x8 электропитание 2.5в, -40°...+85°с
Описание
Описание M24C02-WMN6P

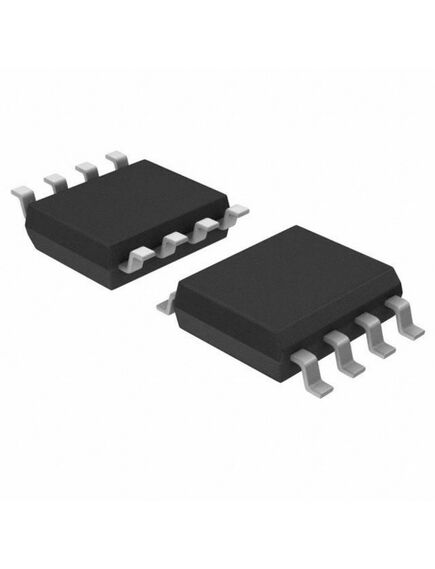

The M24C02-WMN6P is a 2Kbit (256 x 8bit) serial I2C bus EEPROM (Electrically Erasable Programmable Memory) in 8 pin SOIC package. The device supports I2C protocol. Any device that sends data on to the bus is defined as transmitter and any device that reads data as receiver. The device that controls data transfer is known as bus master and other as slave device. Data transfer can only be initiated by bus master which will also provide serial clock for synchronization. The M24C02-WMN6P device is always a slave in all communications.
• Compatible with all I2C bus modes
• Clock frequency is 400KHz
• Single supply voltage range from 2.5V to 5.5V
• Random and sequential read modes
• Write protect of whole memory array
• Enhanced ESD/latch up protection
• More than 4 million write cycles
• More than 200 year data retention
• Operating temperature range -40°C to 85°C
| Серия | m24c |
| Тип памяти | eeprom |
| Объем памяти | 2 kбит(256x8) |
| Максимальная тактовая частота (скорость) | 400 кгц |
| Интерфейс | i2c, 2-wire serial |
| Напряжение питания, В | 2.5…5.5 |
| Рабочая температура, °C | -40…+85 |
| Корпус | soic-8(3.9мм) |
| Напряжение питания | 2.5…5.5 в |
| Рабочая температура | -40…+85 гр.c |
| Вес, г | 0.15 |
