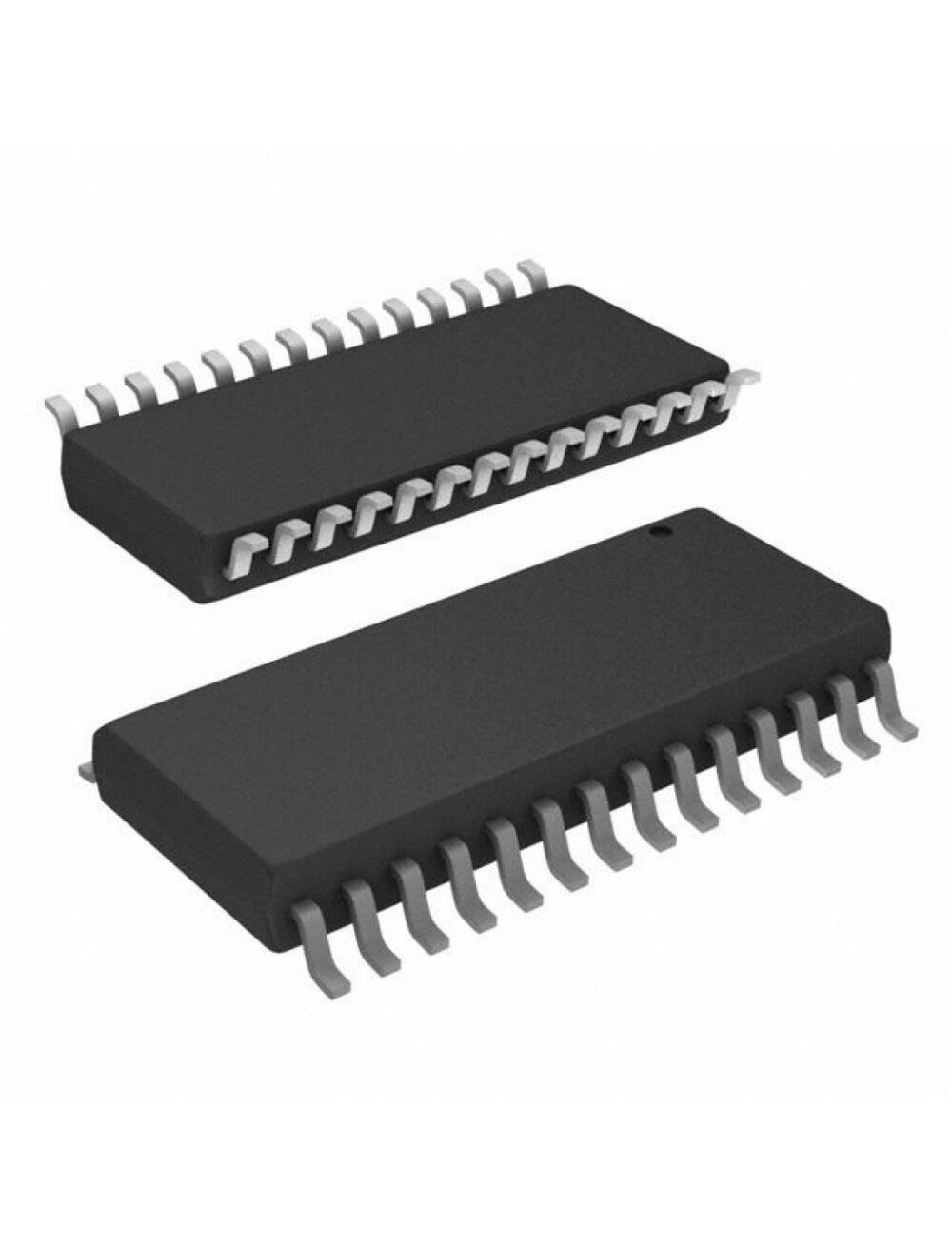

PIC18F25K80-I/SO, микроконтроллер 8-бит 32кб флэш-память 28soic
Описание
Описание PIC18F25K80-I/SO
The PIC18F25K80-I/SO is a 8-bit high-performance enhanced Flash Microcontroller with nanoWatt XLP technology and integrated ECAN™ featuring eXtreme low power consumption. New features in PIC18F25K80 include low sleep current for low power application, 1.8V to 5.5V operating voltage for building control and elevator control application, timers/enhanced compare/capture/PWMs for precision timing control, 12-bit ADC for advance analogue interface and charge time measurement unit for easy capacitive touch user interface. Charge time measurement unit (CTMU) supports touch sensing and advanced sensing applications.
• 20nA Sleep mode (watch webinar)
• 300nA Watch dog timer operation in sleep modes
• Integrated ECAN™ conforming to CAN 2.0B active specification
• Extreme low power sleep mode ideal for battery applications
• 4 Capture/compare/PWM modules and 1 enhanced capture/compare/PWM modules
• 1 MSSP serial ports for SPI or I²C™ communication
• 2 Enhanced USART modules
• Two analogue comparators
• Self programming flash supports 10k erase/write cycles and 20-year retention
• DeviceNet™ data byte filter support
• Six programmable receive/transmit buffers
• Three dedicated transmit buffers with prioritization
• Automatic remote frame handling
| Серия | pic xlp 18k |
| Ядро | pic |
| Ширина шины данных | 8-бит |
| Тактовая частота | 64 мгц |
| Количество входов/выходов | 24 |
| Объем памяти программ | 32 кбайт (16k x 16) |
| Тип памяти программ | flash |
| Объем EEPROM | 1k x 8 |
| Объем RAM | 3.6k x 8 |
| Наличие АЦП/ЦАП | ацп 8x12b |
| Встроенные интерфейсы | CAN, I2C, LIN, SPI, UART |
| Встроенная периферия | brown-outdetect/reset, lvd, por, pwm, wdt |
| Напряжение питания | 1.8…5.5 в |
| Рабочая температура | -40…+85c |
| Корпус | soic-28 (0.295 inch) |
| Вес, г | 1.7 |
