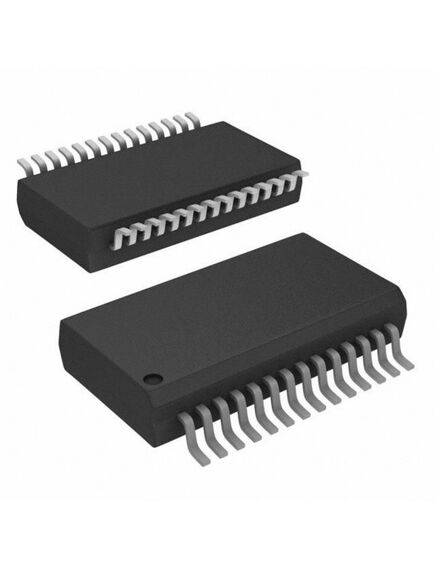

PIC18F25K20-I/SS, микроконтроллер 8-бит 32кб флэш-память 28ssop
Описание
Описание PIC18F25K20-I/SS
The PIC18F25K20-I/SS is a high-performance PIC18 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture with up to 16 MIPS of processing power with benchmark nanoWatt XLP extreme low power consumption. This product offer all of the advantages of the well recognized high-performance x16 architecture with standardized features including 32kB of addressable program memory size, 1536bytes of data memory size, 25 general-purpose I/O pins, two comparators and 10-channel 10-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 64MHz wide operating voltage of 1.8 to 3.6V.
• 83 (16-bit wide) powerful C-optimized
• 32 level hardware stack
• 1 (8-bit) file select register
• Integrated 8x8 hardware multiply
• Programmable brown-out reset (BOR)
• Programmable low voltage detection
• Power on reset (POR)
• 32kHz to 16MHz internal oscillator
• Watch dog timer (WDT)
• Internal voltage reference (Bandgap)
• One 8-bit digital timer
• Three 16-bit digital timers
• 1x Capture/Compare/PWM (CCP)
• 1x Enhanced Capture/Compare/PWM (ECCP)
• Local interconnect network (LIN)
• 10x Capacitive touch channels
• In-Circuit Serial Programming™ (ICSP™)
• 256bytes of EEPROM data memory
| Серия | pic xlp 18k |
| Ядро | pic |
| Ширина шины данных | 8-бит |
| Тактовая частота | 64 мгц |
| Количество входов/выходов | 24 |
| Объем памяти программ | 32 кбайт (16k x 16) |
| Тип памяти программ | flash |
| Объем EEPROM | 256 x 8 |
| Объем RAM | 1.5k x 8 |
| Наличие АЦП/ЦАП | ацп 11x10b |
| Встроенные интерфейсы | i2c, spi, uart |
| Встроенная периферия | brown-outdetect/reset, hlvd, por, pwm, wdt |
| Напряжение питания | 1.8…3.6 в |
| Рабочая температура | -40…+85c |
| Корпус | ssop-28 (0.209 inch) |
| Вес, г | 1.7 |
