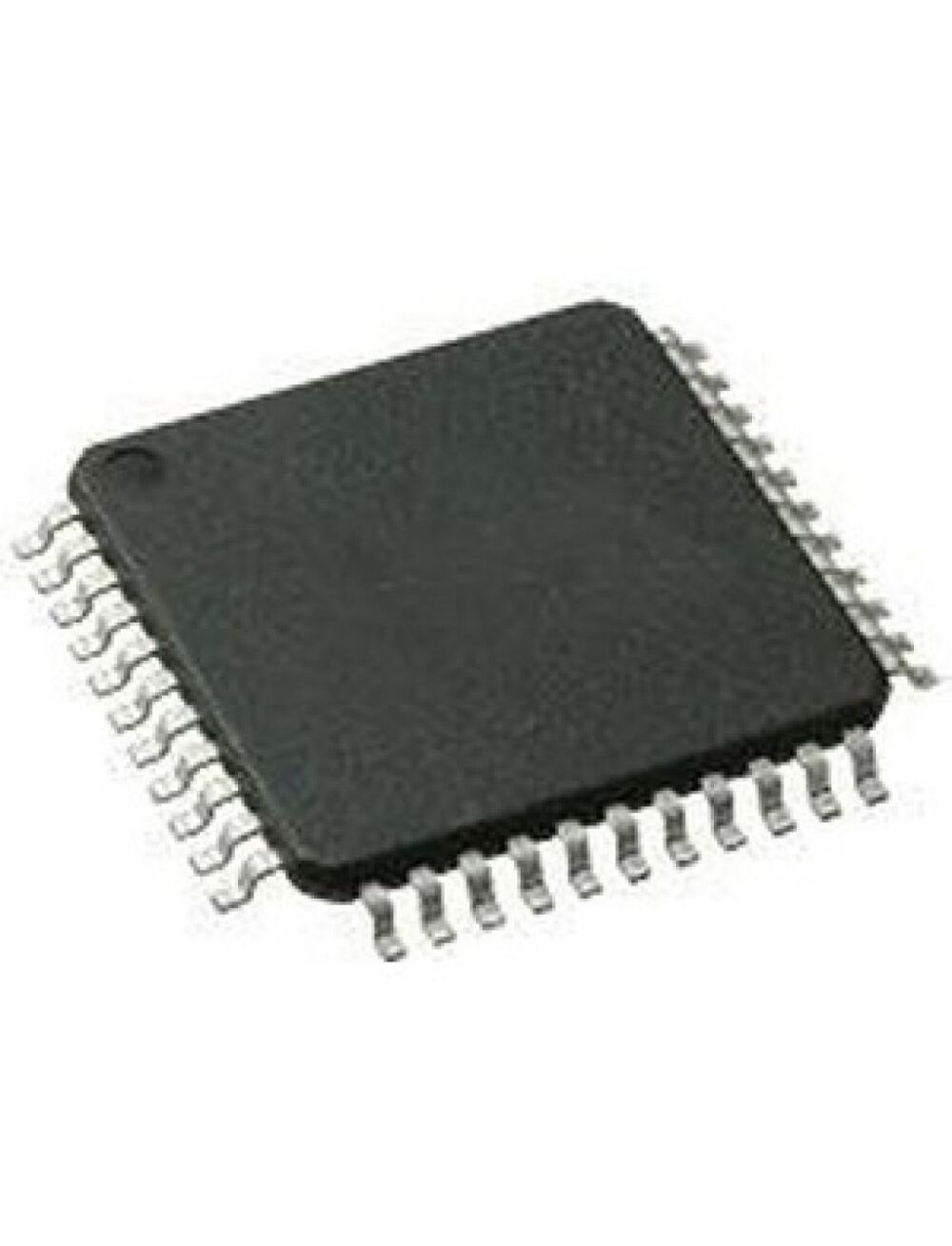

PIC16F914-I/PT, микроконтроллер 8-бит 7кб флэш-память 44tqfp
Описание
Описание PIC16F914-I/PT
The PIC16F914-I/PT is a mid-range PIC16 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 7kB of addressable program memory size, 256bytes of data memory size, 36 general-purpose I/O pins, two comparators and 8-channel 10-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 20MHz with wide operating voltage of 2 to 5.5V.
• 35 (14-bit wide) easy instructions to learn
• 8 level hardware stack
• 1 (9-bit) file select register
• Hardware interrupt handling
• 32kHz to 8MHz internal oscillator
• 256bytes of EEPROM data memory
• Brown-out reset (BOR)
• Programmable low voltage detection
• Power on reset (POR)
• Two 8-bit digital timers
• One 16-bit digital timer
• 2x Capture/Compare/PWM (CCP)
• Up to 96 LCD segments
• In-Circuit Serial Programming™ (ICSP™)
| Серия | pic 16f |
| Ядро | pic |
| Ширина шины данных | 8-бит |
| Тактовая частота | 20 мгц |
| Количество входов/выходов | 35 |
| Объем памяти программ | 7 кбайт (4k x 14) |
| Тип памяти программ | flash |
| Объем EEPROM | 256 x 8 |
| Объем RAM | 256 x 8 |
| Наличие АЦП/ЦАП | ацп 8x10b |
| Встроенные интерфейсы | i2c, spi, uart |
| Встроенная периферия | brown-outdetect/reset, lcd, por, pwm, wdt |
| Напряжение питания | 2…5.5 в |
| Рабочая температура | -40…+85c |
| Корпус | TQFP-44 (10 x 10) |
| Вес, г | 1.4 |
