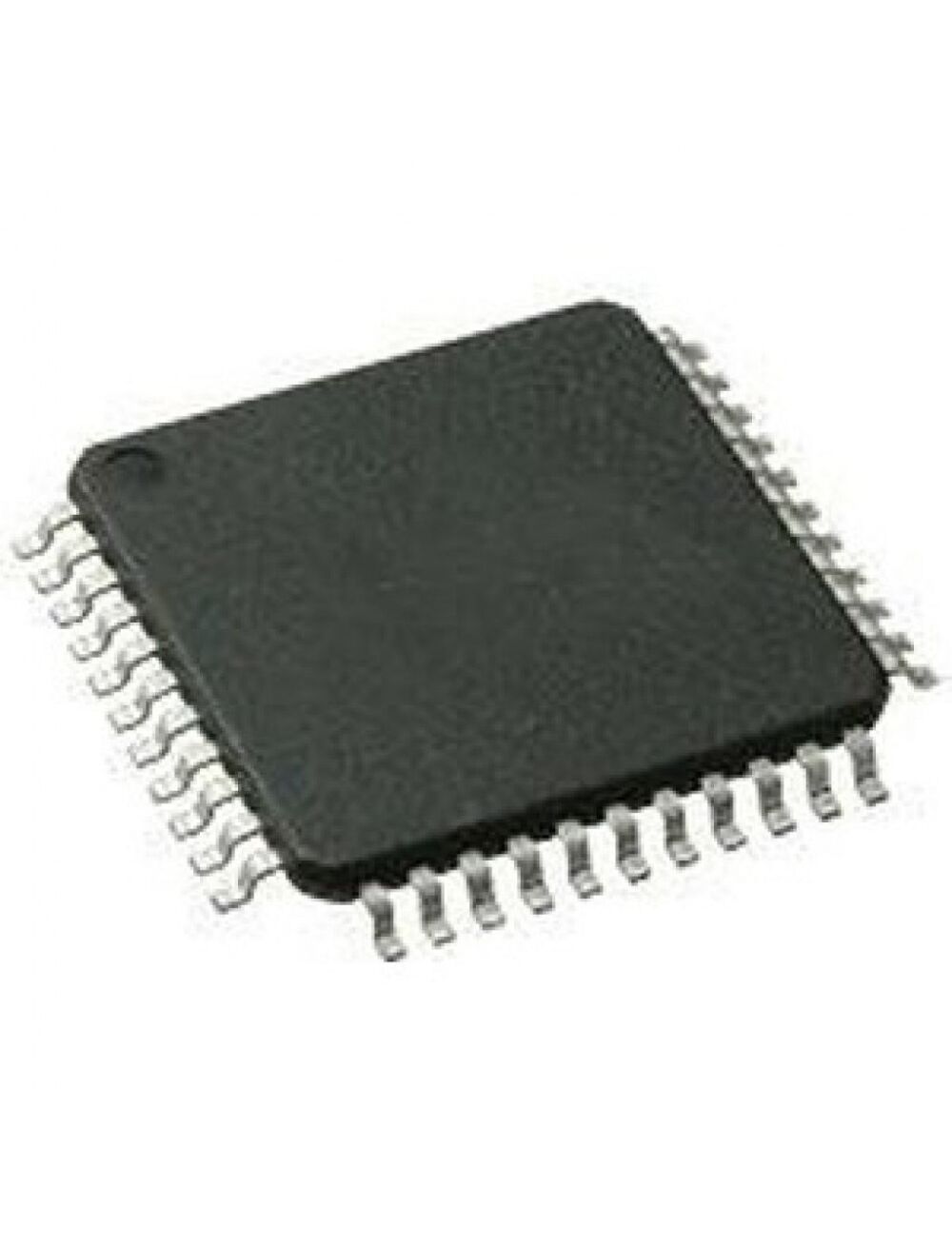

PIC16F887-I/PT, микроконтроллер 8kx14 флэш-память 36 портов ввода-вывода 20мгц
Описание
Описание PIC16F887-I/PT
PIC16F882/883/884/886/887 8-Bit Flash Microcontrollers
The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchips PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.
The PIC16F882/883/884/886/887 family of microcontrollers is based upon Microchips Mid-Range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, up to 14 Kbytes program memory, up to 368 bytes RAM and EEPROM of up to 256 bytes. On board is a configurable oscillator factory calibrated to ±1% accuracy.
| Серия | pic 16f |
| Ядро | pic |
| Ширина шины данных | 8-бит |
| Тактовая частота | 20 мгц |
| Количество входов/выходов | 35 |
| Объем памяти программ | 14 кбайт (8k x 14) |
| Тип памяти программ | flash |
| Объем EEPROM | 256 x 8 |
| Объем RAM | 368 x 8 |
| Наличие АЦП/ЦАП | ацп 14x10b |
| Встроенные интерфейсы | i2c, spi, uart |
| Встроенная периферия | brown-outdetect/reset, por, pwm, wdt |
| Напряжение питания | 2…5.5 в |
| Рабочая температура | -40…+85c |
| Корпус | TQFP-44 (10 x 10) |
| Вес, г | 1.4 |
