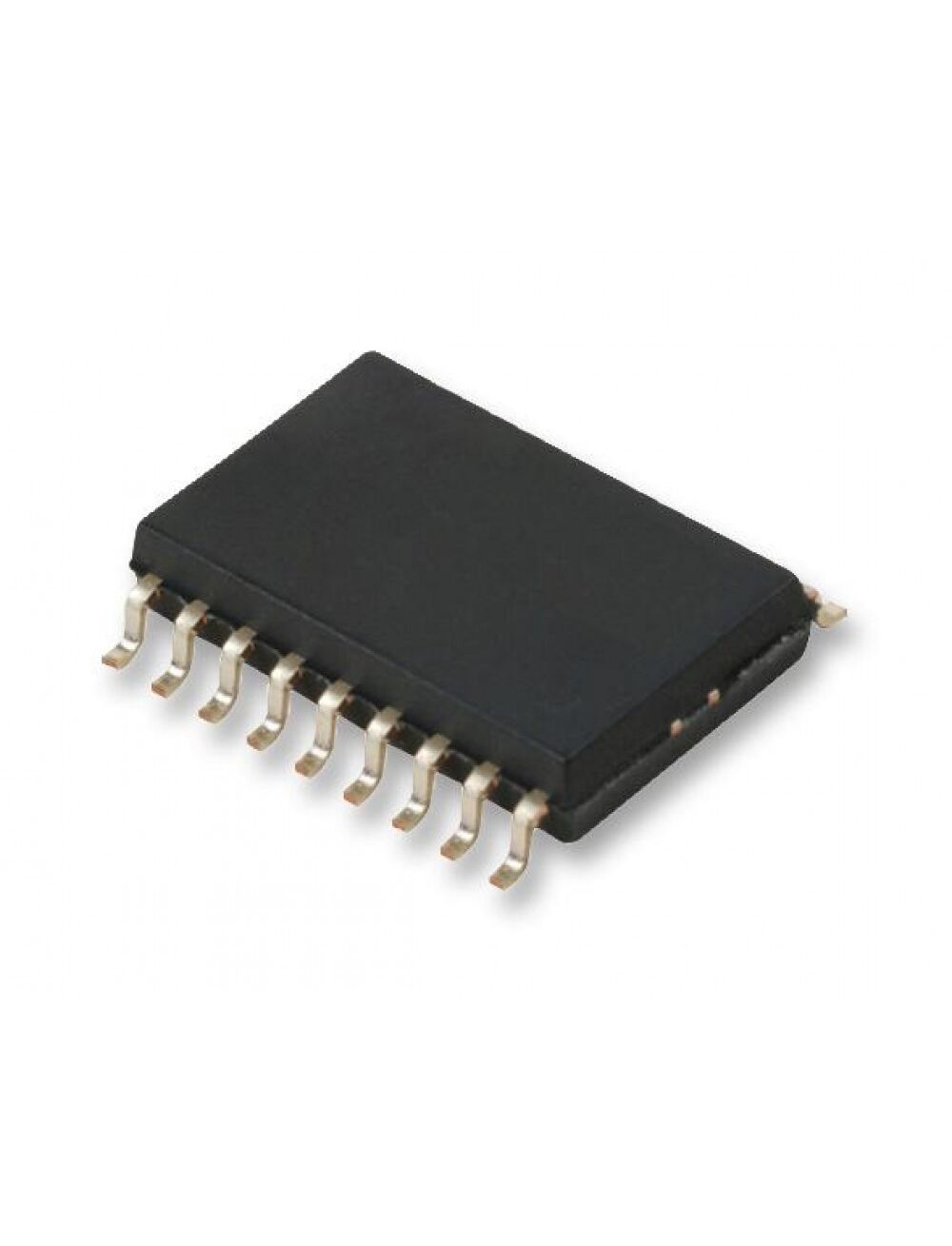

PIC16F84A-20I/SO, микроконтроллер pic 1024 x 14 - ппзу/68-озу 13порт(-ов) ввода-вывода таймер + сторожевой таймер icsp
Описание
Описание PIC16F84A-20I/SO
The PIC16F84A-20I/SO is a mid-range PIC16 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 1.75kB of addressable program memory size, 68bytes of data memory size and 13 general-purpose I/O pins. This device operates at a maximum frequency of 20MHz with wide operating voltage of 2 to 6V.
• 35 (14-bit wide) easy instructions to learn
• 8 level hardware stack
• 1 (9-bit) file select register
• Hardware interrupt handling
• In-Circuit Serial Programming™ (ICSP™)
• Power on reset (POR)
• Power-up timer (PWRT)
• Oscillator start-up timer (OST)
• Watchdog timer (WDT)
• Code-protection
• Power saving SLEEP mode
• Selectable oscillator options
• 64bytes of EEPROM data memory
| Серия | pic 16f |
| Ядро | pic |
| Ширина шины данных | 8-бит |
| Тактовая частота | 20 мгц |
| Количество входов/выходов | 13 |
| Объем памяти программ | 1.75 кбайт (1k x 14) |
| Тип памяти программ | flash |
| Объем EEPROM | 64 x 8 |
| Объем RAM | 68 x 8 |
| Встроенная периферия | por, wdt |
| Напряжение питания | 4…5.5 в |
| Рабочая температура | -40…+85c |
| Корпус | soic-18 (0.295 inch) |
| Вес, г | 0.7 |
