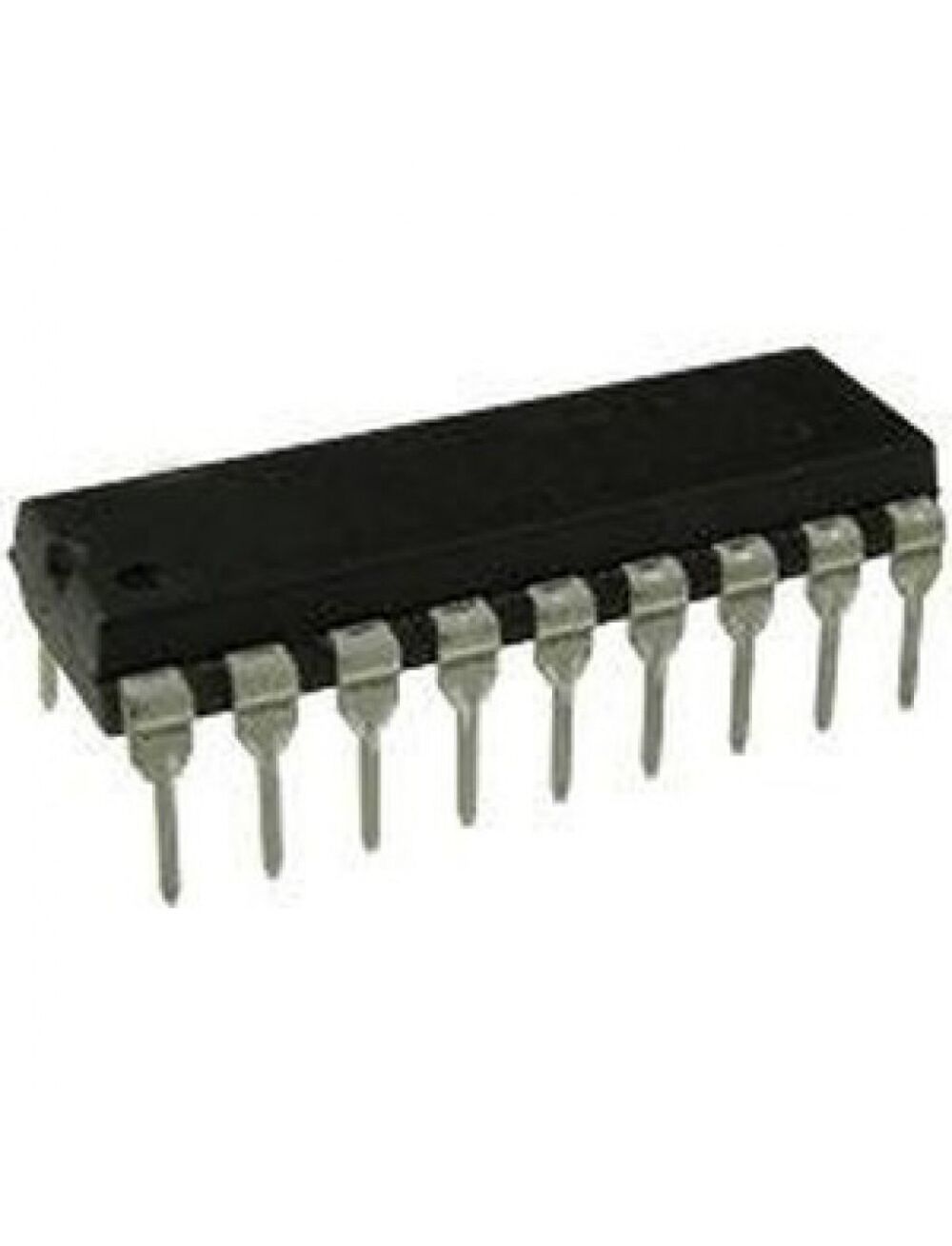

PIC16F819-I/P, микроконтроллер pic 2048x14 - ппзу/256-озу 256-эппзу 5-ацп 16 портов ввода-вывода 3 таймера + сторожевой таймер шины spi/i2c 1x10-bits-pwm icsp icd
Описание
Описание PIC16F819-I/P
PIC16F818/819 8-Bit Microcontrollers
The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip's PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.
The PIC16F818/819 family of microcontrollers is based upon Microchip's Mid-Range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, up to 14 Kbytes program memory and 368 bytes RAM. On board is a configurable oscillator factory calibrated to ±1% accuracy.
| Серия | pic 16f |
| Ядро | pic |
| Ширина шины данных | 8-бит |
| Тактовая частота | 20 мгц |
| Количество входов/выходов | 16 |
| Объем памяти программ | 3.5 кбайт (2k x 14) |
| Тип памяти программ | flash |
| Объем EEPROM | 256 x 8 |
| Объем RAM | 256 x 8 |
| Наличие АЦП/ЦАП | ацп 5x10b |
| Встроенные интерфейсы | i2c, spi |
| Встроенная периферия | brown-outdetect/reset, por, pwm, wdt |
| Напряжение питания | 4…5.5 в |
| Рабочая температура | -40…+85c |
| Корпус | dip-18 (0.300 inch) |
| Вес, г | 2.2 |
