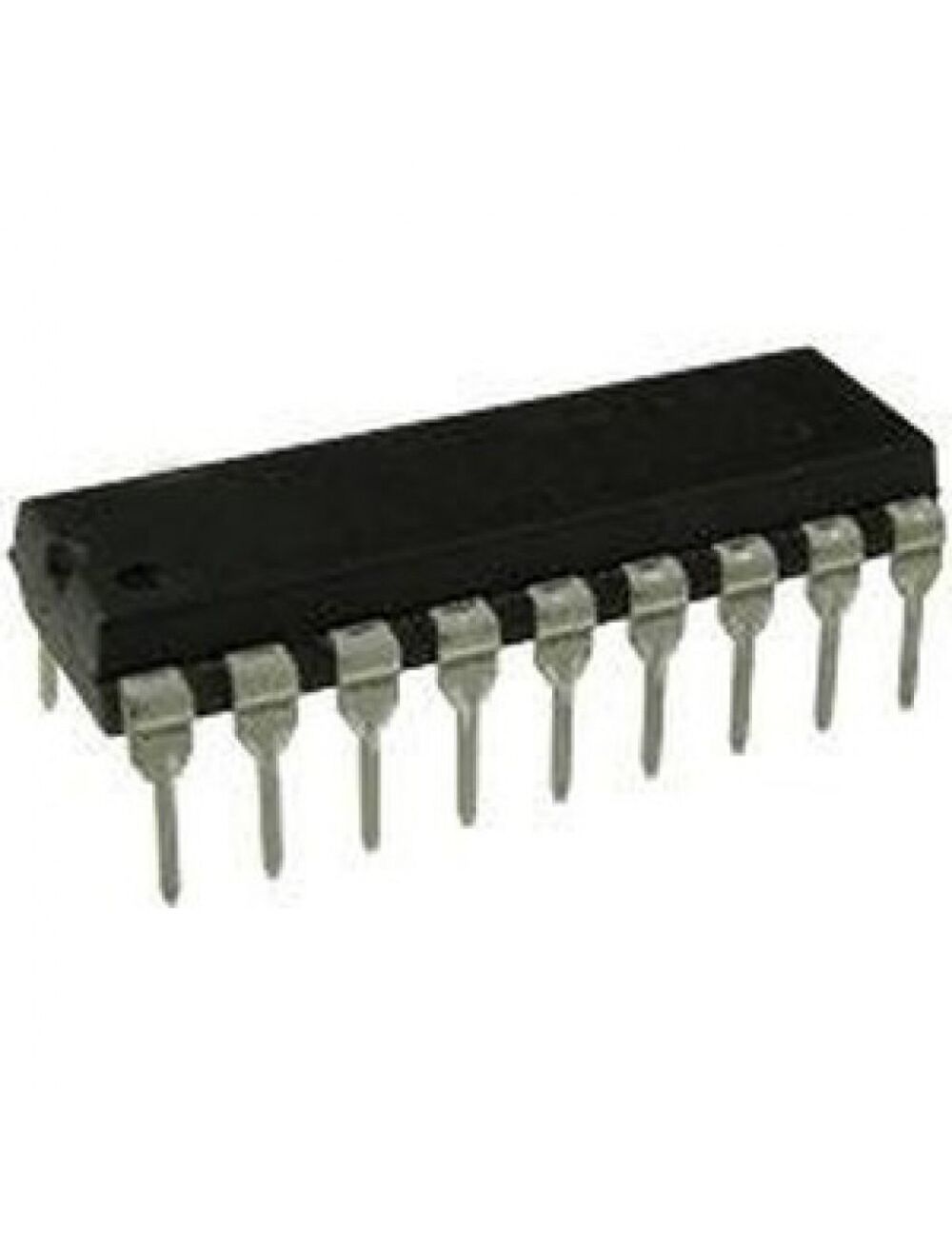

PIC16F648A-I/P, микроконтроллер 8-бит pic16 pic risc 7кб флэш-память электропитание 3.3в/5в
Описание
Описание PIC16F648A-I/P
PIC16F627A/628A/648A Microcontrollers
The PIC16F range of Microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip's PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.
The PIC16F627A/628A/648A family of Microcontrollers is based upon Microchip's Mid-Range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, up to 3.5 Kbytes program memory, 224 bytes RAM and Data EEPROM of up to 128 bytes. On board is an oscillator factory calibrated to ±1% accuracy.
| Серия | pic 16f |
| Ядро | pic |
| Ширина шины данных | 8-бит |
| Тактовая частота | 20 мгц |
| Количество входов/выходов | 16 |
| Объем памяти программ | 7 кбайт (4k x 14) |
| Тип памяти программ | flash |
| Объем EEPROM | 256 x 8 |
| Объем RAM | 256 x 8 |
| Встроенные интерфейсы | uart |
| Встроенная периферия | brown-outdetect/reset, por, pwm, wdt |
| Напряжение питания | 3…5.5 в |
| Рабочая температура | -40…+85c |
| Корпус | dip-18 (0.300 inch) |
| Вес, г | 2.2 |
