PIC16F630-I/P, микроконтроллер microchip 1024 x 14 - ппзу/64-озу 128-эппзу 12 портов ввода-вывода 2 таймера + компаратор + сторожевой таймер интерфейс icsp
Описание
Описание PIC16F630-I/P
PIC16F630/676 8-Bit Flash Microcontrollers
The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip's PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.
The PIC16F630/676 family of microcontrollers is based upon Microchip's Mid-range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, up to 1.75 Kbytes program memory, up to 64 bytes RAM and Data EEPROM of 128 bytes. On board is an oscillator factory calibrated to ±1% accuracy.
| Серия | pic 16f |
| Ядро | pic |
| Ширина шины данных | 8-бит |
| Тактовая частота | 20 мгц |
| Количество входов/выходов | 12 |
| Объем памяти программ | 1.75 кбайт (1k x 14) |
| Тип памяти программ | flash |
| Объем EEPROM | 128 x 8 |
| Объем RAM | 64 x 8 |
| Встроенная периферия | brown-outdetect/reset, por, wdt |
| Напряжение питания | 2…5.5 в |
| Рабочая температура | -40…+85c |

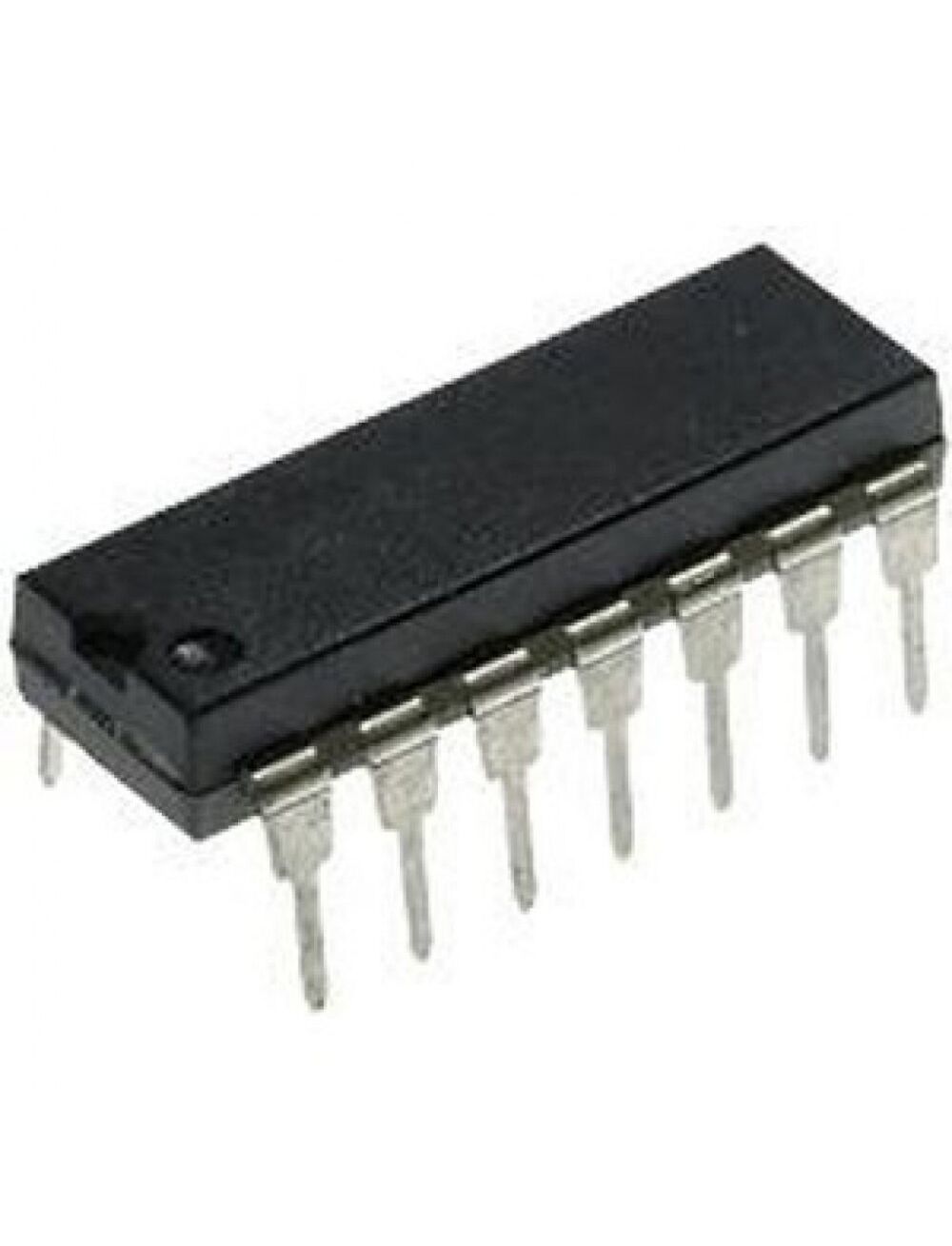

| Корпус | dip-14 (0.300 inch) |
| Вес, г | 1.9 |
