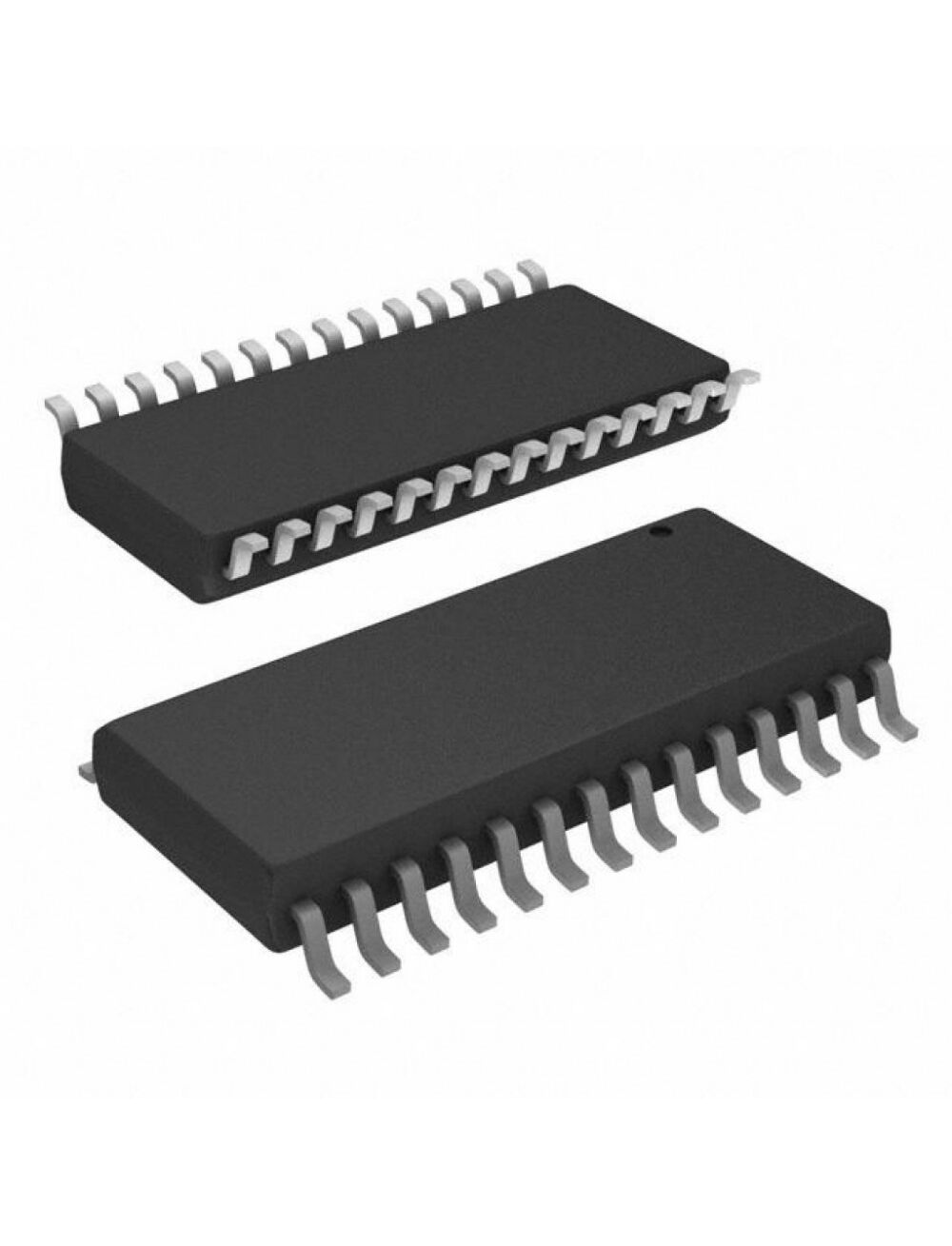

PIC16F1936-I/SO, микроконтроллер 8-бит pic16 pic risc 14кб флэш-память электропитание 2.5в/3.3в/5в
Описание
Описание PIC16F1936-I/SO
PIC16F1934/1936/1937 8-Bit Flash Microcontrollers
The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip's PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.
The PIC16F1934/1936/1937 family of microcontrollers is based upon Microchip's enhanced mid-range core with a 16 level deep hardware stack and 49 instructions. These MCUs provide up to 8 MIPS, up to 14 Kbytes program memory, up to 512 bytes RAM and Data EEPROM of 256 bytes. On board is a configurable oscillator with ±1% accuracy.
| Серия | pic xlp 16f |
| Ядро | pic |
| Ширина шины данных | 8-бит |
| Тактовая частота | 32 мгц |
| Количество входов/выходов | 25 |
| Объем памяти программ | 14 кбайт (8k x 14) |
| Тип памяти программ | flash |
| Объем EEPROM | 256 x 8 |
| Объем RAM | 512 x 8 |
| Наличие АЦП/ЦАП | ацп 11x10b |
| Встроенные интерфейсы | I2C, LIN, SPI, UART |
| Встроенная периферия | brown-outdetect/reset, lcd, por, pwm, wdt |
| Напряжение питания | 1.8…5.5 в |
| Рабочая температура | -40…+85c |
| Корпус | soic-28 (0.295 inch) |
| Вес, г | 1.7 |
