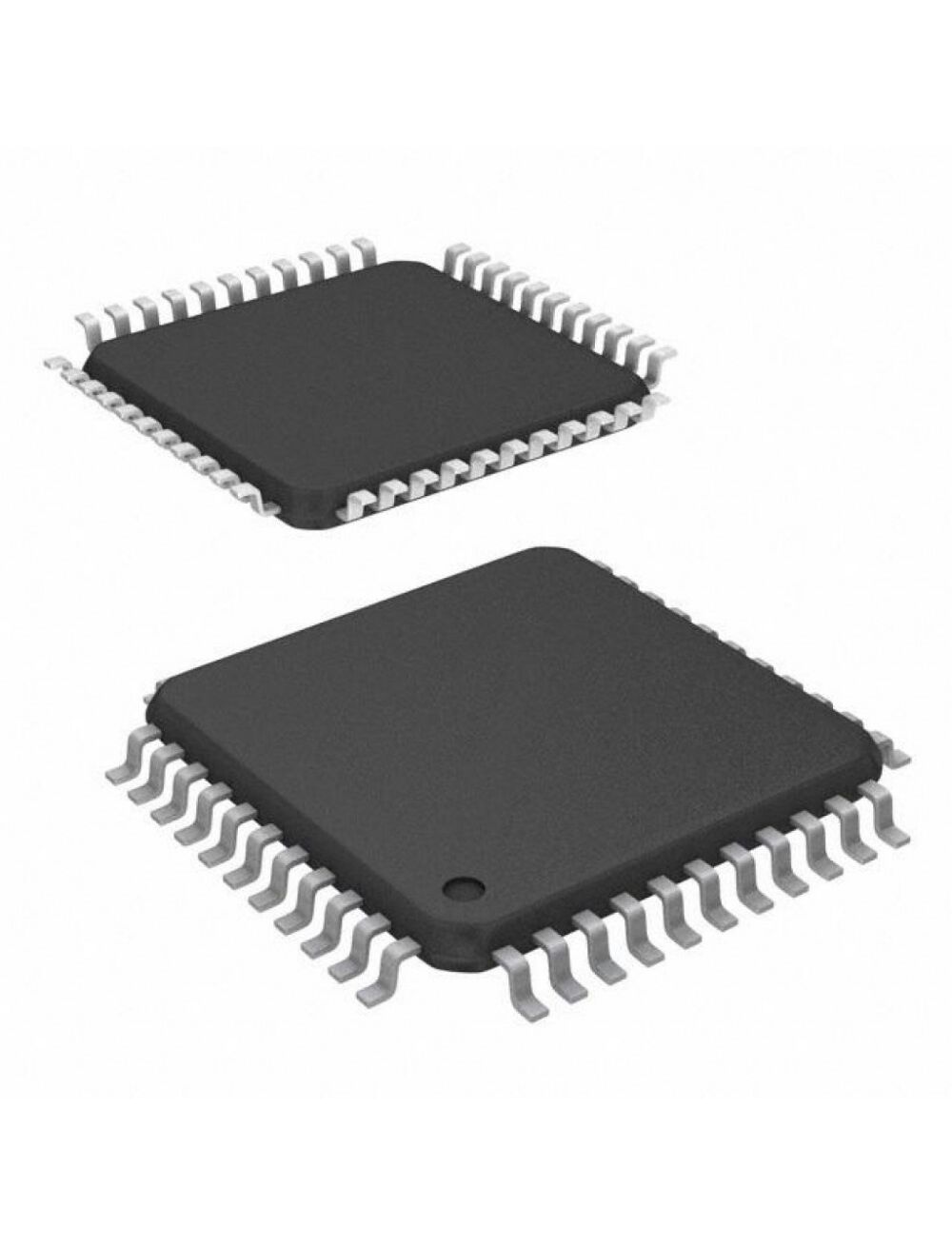

ATMEGA164P-20AU, микроконтроллер avr 16-k-флэш-память , 1-кбайт озу, 512-бит eepпзу, 8 каналов 10-бит ацп, интерфейс jtag
Описание
Описание ATMEGA164P-20AU
The ATMEGA164P-20AU is a 8-bit high-performance picoPower AVR RISC-based Microcontroller combines 16kB ISP flash memory with read-while-write capabilities, 512B EEPROM, 1kB SRAM, 32 general purpose I/O lines, 32 general purpose working registers, real time counter, three flexible timer/counters with compare modes and PWM, 2 USARTs, byte oriented 2-wire serial interface, 8-channel/10-bit A/D converter with optional differential input stage with programmable gain, programmable watchdog timer with internal oscillator, SPI serial port, JTAG (IEEE 1149.1 compliant) interface for on-chip debugging and programming and six software selectable power saving modes. The device operates between 2.7 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processor speed. The AVR core combines a rich instruction set with 32 general purpose working registers.
• Advanced RISC architecture - On-chip 2-cycle multiplier
• High endurance, non-volatile memory segments
• JTAG (IEEE 1149.1 compliant) interface
• Peripheral features - Real time counter with separate oscillator
• Power-on reset (POR) and programmable brown-out detection
• Internal calibrated RC oscillator
• External and internal interrupt sources
• Six sleep modes - Idle, ADC noise reduction, power-save, power-down, standby and extended standby
• 32 Programmable I/O lines
| Серия | avr atmega |
| Ядро | avr |
| Ширина шины данных | 8-бит |
| Тактовая частота | 20 мгц |
| Количество входов/выходов | 32 |
| Объем памяти программ | 16 кбайт (8k x 16) |
| Тип памяти программ | flash |
| Объем EEPROM | 512 x 8 |
| Объем RAM | 1k x 8 |
| Наличие АЦП/ЦАП | ацп 8x10b |
| Встроенные интерфейсы | i2c, spi, uart |
| Встроенная периферия | brown-outdetect/reset, por, pwm, wdt |
| Напряжение питания | 2.7…5.5 в |
| Рабочая температура | -40…+85c |
| Корпус | TQFP-44 (10 x 10) |
| Вес, г | 1.4 |
