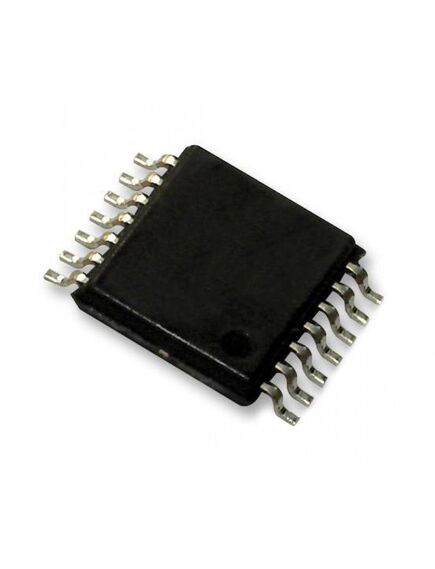

TXB0104PWR, 4-х канальный двунаправленый транслятор уровня, tssop14
Описание
Описание TXB0104PWR
The TXB0104PWR is a 4-bit non-inverting translator IC uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2 to 3.6V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.65 to 5.5V. This allows for universal low-voltage bidirectional translation between any of the 1.2, 1.5, 1.8, 2.5, 3.3V and 5V voltage nodes. VCCA should not exceed VCCB. When the output-enable (OE) input is low, all outputs are placed in the high-impedance state. To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pull-down resistor, the minimum value of the resistor is determined by the current-sourcing capability of the driver. It is designed so that the OE input circuit is supplied by VCCA.
• 1.2 to 3.6V on A Port and 1.65 to 5.5V on B Port (VCCA<=VCCB)
• VCC Isolation Feature - If Either VCC Input Is at GND, All Outputs are in High-Impedance State
• OE Input Circuit Referenced to VCCA
• Low-power Consumption, 5µA Maximum ICC
• Ioff Supports Partial-Power-Down Mode Operation
• Latch-up Performance Exceeds 100mA Per JESD 78, Class II
• Green Product, No Sb/Br
| Тип | Транслятор Уровня Напряжения |
| Тип канала | двунаправленный |
| Кол-во схем | 1 |
| Кол-во каналов в схеме | 4 |
| Напряжение - VCC(A), В | 1.2…3.6 |
| Напряжение - VCC(B), В | 1.65…5.5 |
| Тип выхода | 3-state, non-inverted |
| Скорость передачи данных | 100 mbps |
| Рабочая температура, °C | -40…+85 |
| Корпус | tssop-14(4.4мм) |
| Вес, г | 0.12 |
