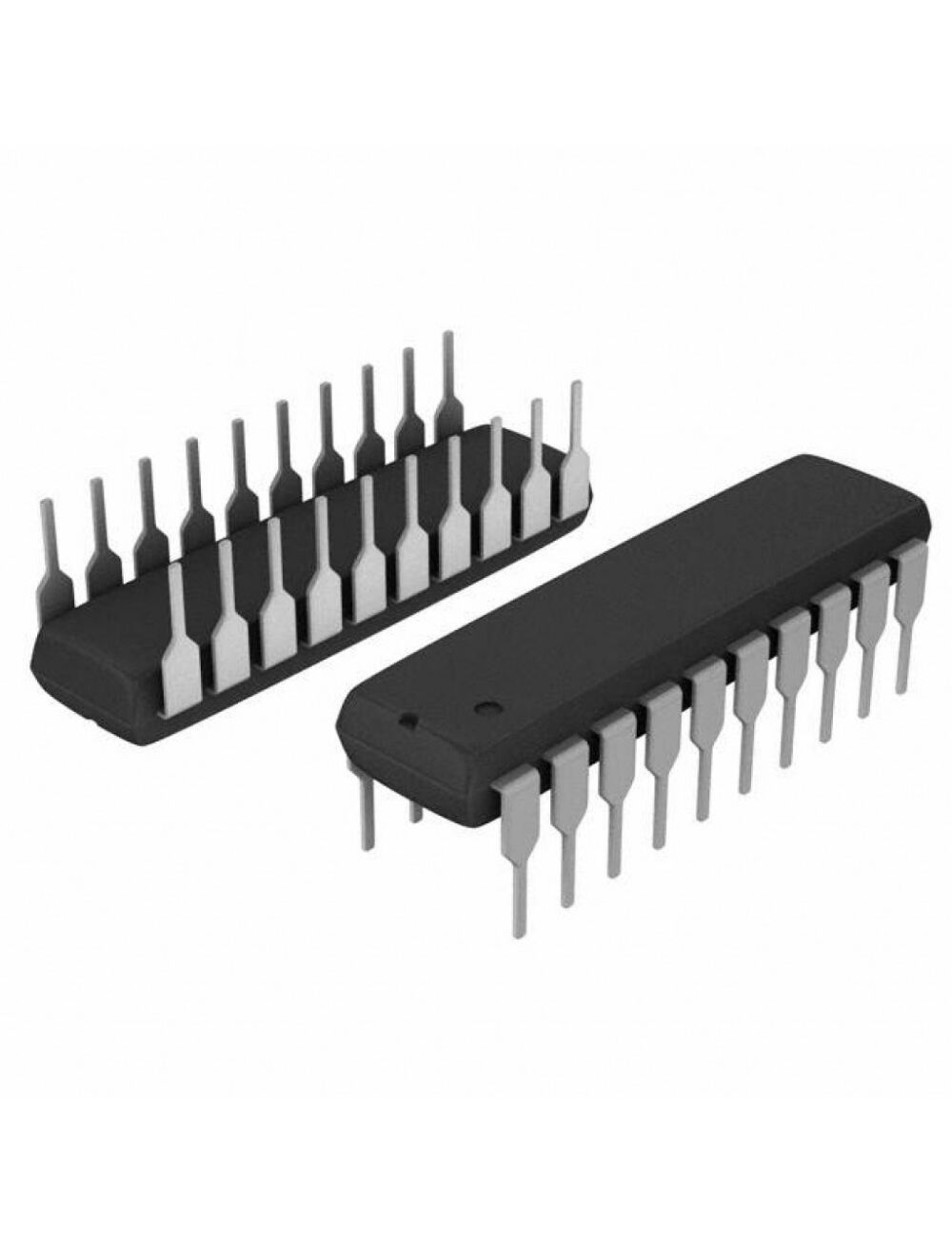

SN74AC245N, шинный формирователь неинвертирующий двунаправленный 8-бит кмоп кристалл, dip20
Описание
Описание SN74AC245N
The SN74AC245N is an octal Bus Transceiver with 3-state outputs. It is designed for asynchronous 2-way communication between data buses. The control-function implementation minimizes external timing requirements. When the output-enable (OE)\ is low, the device passes non-inverted data from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction control (DIR) input. A high on OE\ disables the device so that the buses are effectively isolated. To ensure the high-impedance state during power up or power down, OE\ should be tied to VCC through a pull-up resistor and the minimum value of the resistor is determined by the current-sinking capability of the driver.
• Inputs accept voltages to 6V
• 7.5ns at 5V Propagation delay (tpd)
| Серия | 74AC |
| Технология | cmos |
| Тип | Transceiver |
| Полярность | неинвертирующий |
| Число элементов | 1 |
| Количество Бит на Элемент | 8 |
| Тип выхода | push-pull(3-state) |
| Выходной ток высокого уровня, IOH (мА) | -24 |
| Выходной ток низкого уровня, IOL (мА) | 24 |
| Напряжение питания, В | 2…6 |
| Рабочая температура,°C | -40…+85 |
| Корпус | dip-20(0.300 inch) |
| Вес, г | 2.5 |
