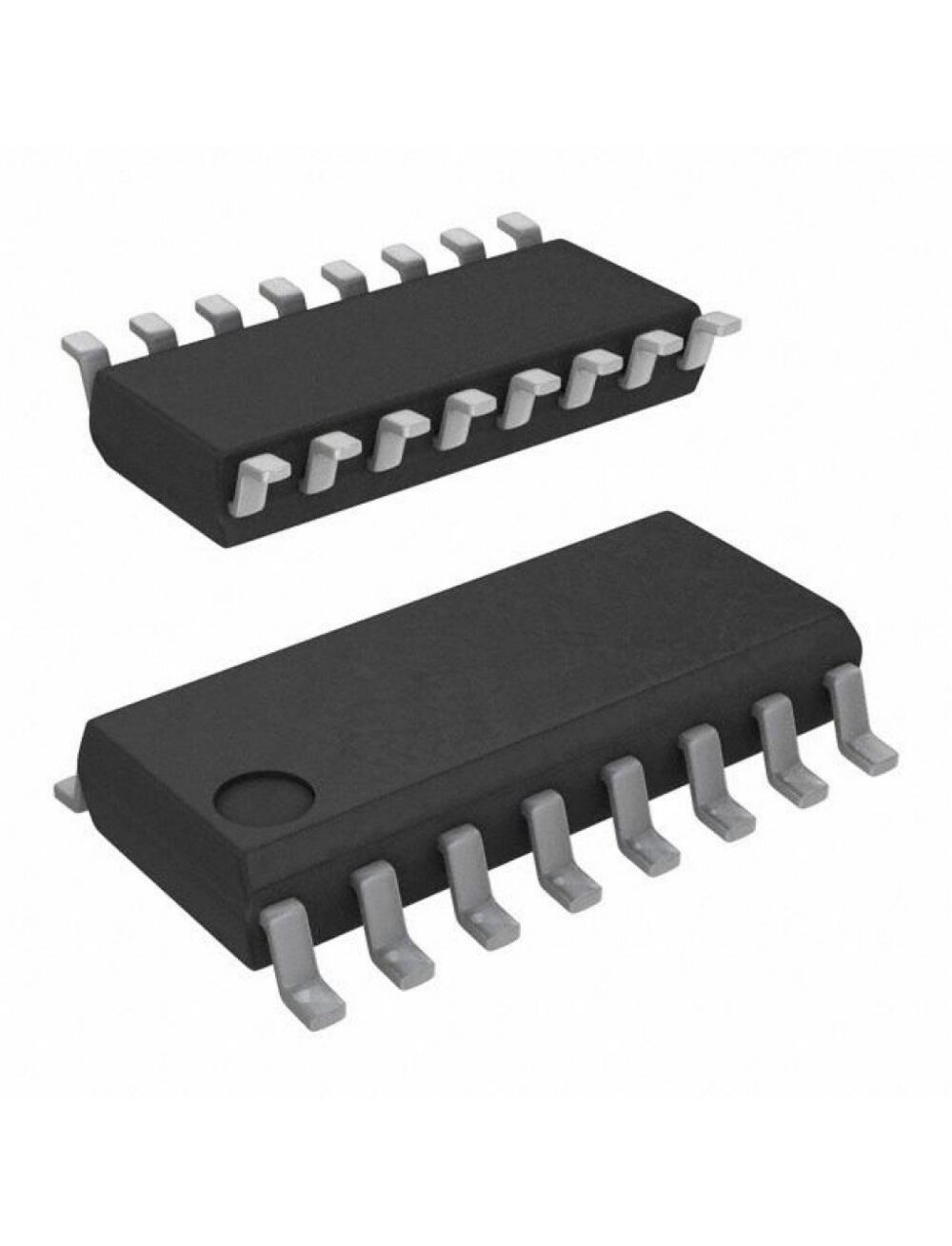

CD74HCT238M, 3 на 8 декодер демультиплексор, 16-soic
Описание
Описание CD74HCT238M
The CD74HCT238M is a 3-to-8 high speed CMOS Decoder/Demultiplexer well suited to memory address decoding or data routing applications. It features low power consumption usually associated with CMOS circuitry, yet have speeds comparable to low power Schottky TTL logic. It has three binary select inputs (A0, A1 and A2). If the device is enabled, these inputs determine which of the normally low outputs of the HCT238 series will go high. Two active low and one active high enables (E1\, E2\ and E3) are provided to ease the cascading of decoders. The decoder's 8 outputs can drive 10 low power Schottky TTL equivalent loads.
• I/O Port or memory selector
• Three enable inputs to simplify cascading
• Balanced propagation delay and transition times
• Significant power reduction compared to LSTTL logic ICs
• High noise immunity
• Direct LSTTL input logic compatibility
• CMOS Input compatibility
• Green product and no Sb/Br
| Серия | 74HCT |
| Тип | decoder/demultiplexer |
| Схема | 1x3:8 |
| Кол-во каналов | 1 |
| Максимальный выходной ток: High/Low, мА | -4/4 |
| Напряжение питания, В | 4.5…5.5 |
| Рабочая температура, °C | -55…+125 |
| Корпус | soic-16(3.9мм) |
| Вес, г | 0.3 |
