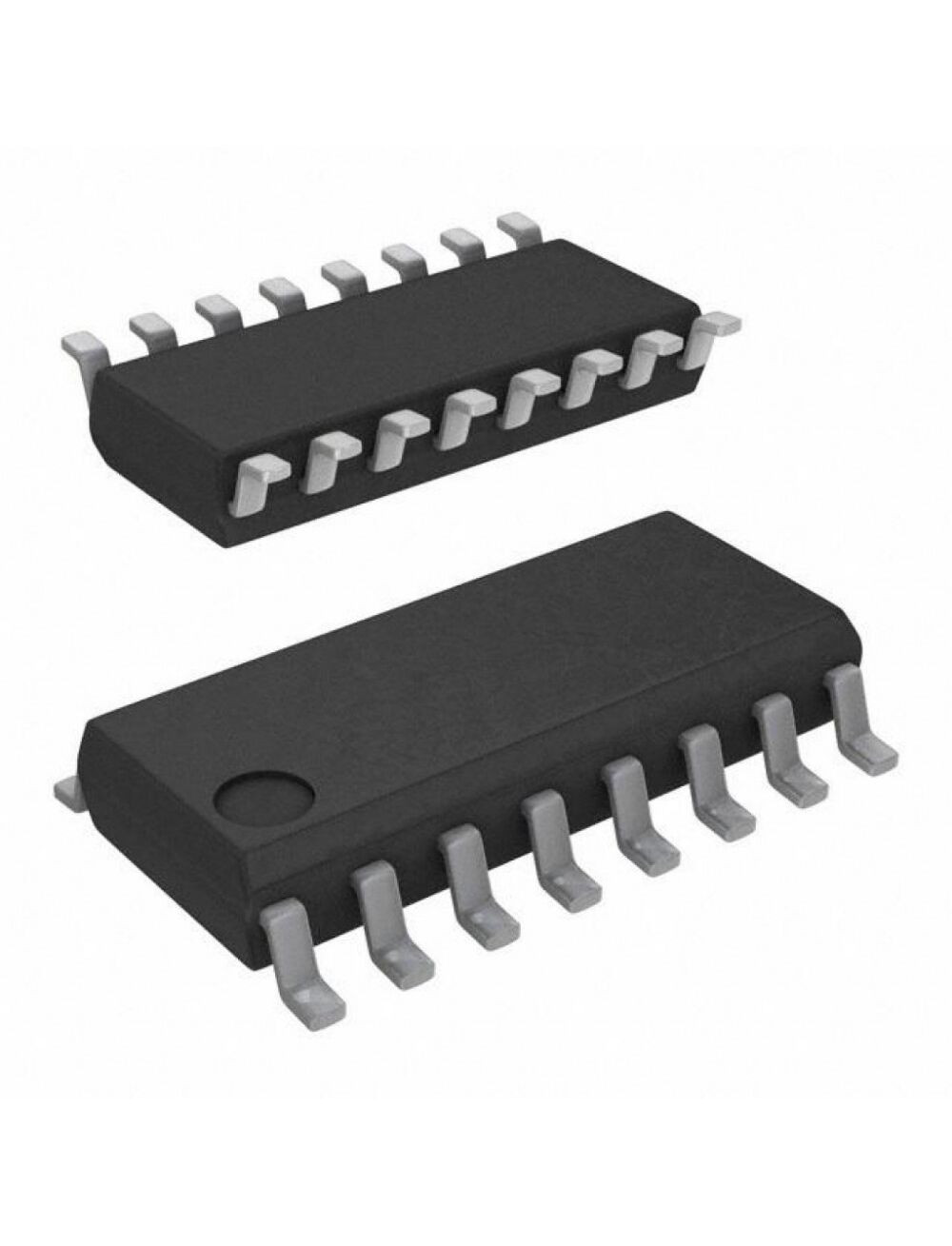

CD74HC4538M, мультивибратор двойной кмоп кристалл, 16-soic
Описание
Описание CD74HC4538M
The CD74HC4538M is a CMOS logic high-speed dual retriggerable precision Monostable Multi-vibrator for fixed voltage timing applications. An external resistor (RX) and an external capacitor (CX) control the timing and the accuracy for the circuit. Adjustment of RX and CX provides a wide range of output pulse widths from the Q and Q\ terminals. The propagation delay from trigger input-to-output transition and the propagation delay from reset input-to-output transition are independent of RX and CX. Leading-edge triggering (A) and trailing edge triggering (B)\ inputs are provided for triggering from either edge of the input pulse. An unused "A" input should be tied to GND and an unused B\ should be tied to VCC. On power up the IC is reset. Unused resets and sections must be terminated. In normal operation the circuit retriggers on the application of each new trigger pulse.
• Retriggerable/resettable capability
• Trigger and reset propagation delays independent of RX, CX
• Triggering from the leading or trailing edge
• Q and Q\ Buffered outputs available
• Separate resets
• Wide range of output pulse widths
• Schmitt trigger input on a and b\ inputs
• Retrigger time is independent of CX
• Balanced propagation delay and transition times
• Significant power reduction compared to LSTTL logic ICs
• Green product and no Sb/Br
| Серия | 74HC |
| Тип логичекого элемента | моностабильный мультивибратор |
| Кол-во каналов | 2 |
| Вход триггер Шмитта | да |
| Время задержки, нс | 21 |
| Максимальный выходной ток: High/Low, мА | -5.2/5.2 |
| Напряжение питания, В | 2…6 |
| Рабочая температура, °C | -55…+125 |
| Корпус | soic-16(3.9мм) |
| Вес, г | 0.3 |
