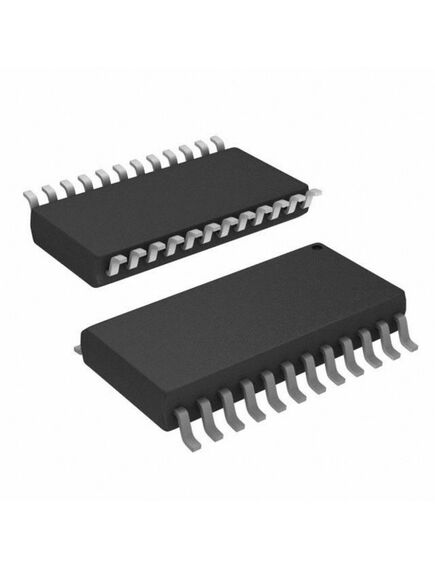

CD74HC4067M96, мультиплексор 1 в 16 24soic кмоп кристалл, 24soic
Описание
Описание CD74HC4067M96
The CD74HC4067M96 is a 16-channel high speed CMOS Analogue Multiplexer/Demultiplexer. This device is digitally controlled analogue switch that utilize silicon-gate CMOS technology to achieve operating speeds similar to LSTTL, with the low power consumption of standard CMOS integrated circuits. This analogue multiplexer/demultiplexer control analogue voltages that may vary across the voltage supply range. This multiplexer/demultiplexer is bidirectional switch thus allowing any analogue input to be used as an output and vice-versa. The switch has low "on" resistance and low "off" leakages. In addition, this device has an enable control which when high will disable all switch to its "off" state.
• Wide analogue input voltage range
• Low "ON" resistance
• Fast switching and propagation speeds
• 6ns Typical at 4.5V "break-before-make" switching
• Balanced propagation delay and transition times
• Significant power reduction compared to LSTTL logic ICs
• CMOS Input compatibility
• Green product and no Sb/Br
| Тип | мультиплекcор/демультиплексор |
| Конфигурация | 1 x 16:1 |
| Сопротивление канала во включенном состоянии (Max), Ом | 160 |
| Напряжение питания: одиночное (В+), двойное (В±) | +2…6 |
| Рабочая температура, °C | -55…+125 |
| Корпус | SOIC-24 (0.295") |
| Вес, г | 1.3 |
