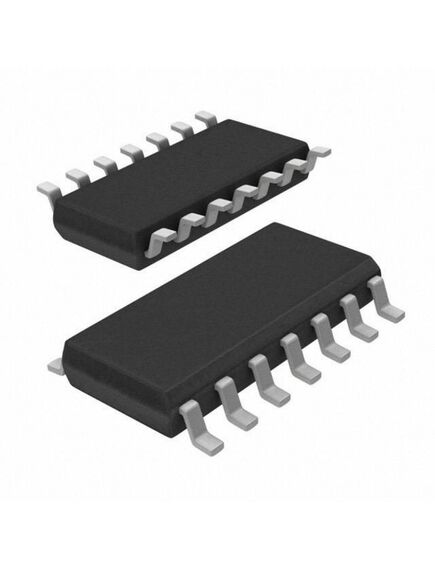

CD4066BM96, логический элемент кмоп переключатель х 4, so14
Описание
Описание CD4066BM96
The CD4066BM96 is a CMOS quad Bilateral Switch intended for the transmission or multiplexing of analog or digital signals. It is pin-for-pin compatible with the CD4016B, but exhibits a much lower on-state resistance. In addition, the on-state resistance is relatively constant over the full input-signal range. It consists of four bilateral switches, each with independent controls. Both the p and the n device in a given switch are biased on or off simultaneously by the control signal. The advantages over single-channel switches include peak input-signal voltage swings equal to the full supply voltage and more constant on-state impedance over the input-signal range.
• 15V Digital or ±7.5V Peak-to-peak switching
• 125R Typical on-state resistance for 15V operation
• Extremely low off-state switch leakage
• Extremely high control input impedance
• Low crosstalk between switches
• Matched control-input to signal-output capacitance
• 40MHz Typical frequency response at switch on
• 100% Tested for quiescent current at 20V
• Green product and no Sb/Br
| Тип | переключатель |
| Конфигурация | 4 х spst-no |
| Сопротивление канала во включенном состоянии (Max), Ом | 240 |
| Напряжение питания: одиночное (В+), двойное (В±) | +3…18 |
| Время включения, Ton (Max), нс | 30 |
| Время отключения, Toff (Max), нс | 30 |
| Рабочая температура, °C | -40…+125 |
| Корпус | soic-14 |
| Вес, г | 0.25 |
