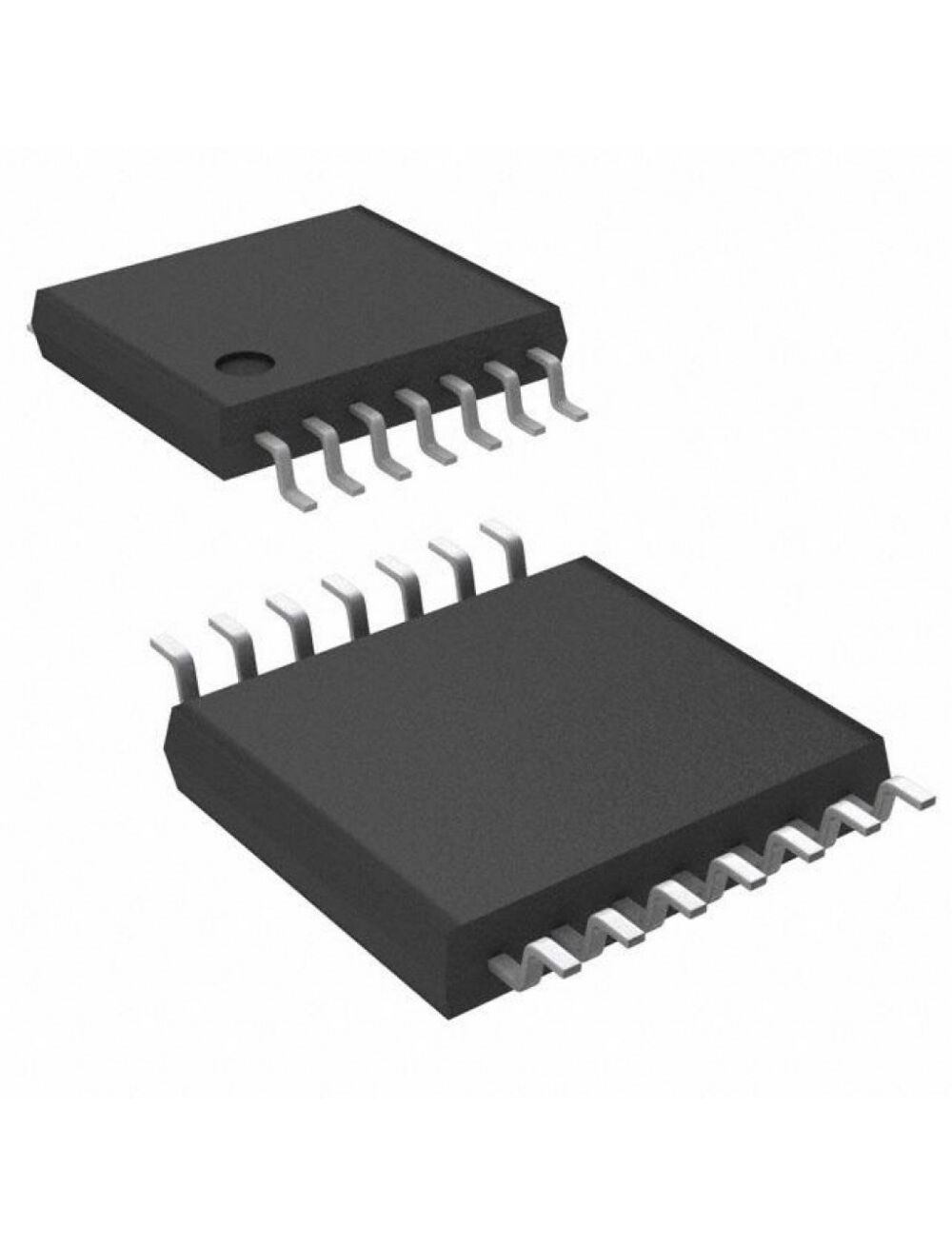

CD4013BPW, логический элемент кмоп триггер d сдвоенный, tssop14
Описание
Описание CD4013BPW
The CD4013BPW is a CMOS dual D-type Flip-flop has independent data, set, reset and clock inputs and Q and Q\ outputs. It can be used for shift register applications and by connecting Q\ output to the data input, for counter and toggle applications. The logic level present at the D input is transferred to the Q output during the positive-going transition of the clock pulse. Setting or resetting is independent of the clock and is accomplished by a high level on the set or rest line, respectively.
• Set-reset capability
• Static flip-flop operation - Retains state indefinitely with clock level either 'high' or 'low'
• Medium-speed operation - 16MHz typical clock toggle rate at 10V
• Standardized symmetrical output characteristics
• 100% Tested for quiescent current at 20V
• Green product and no Sb/Br
| Серия | 4000B |
| Наличие входа установки/сброса | set(preset)and reset |
| Тип триггера | D |
| Тип выхода | Дифференциальный |
| Кол-во элементов | 2 |
| Кол-во бит на элемент | 1 |
| Время задержки распространения, нс | 90 |
| Тактирование | передним фронтом |
| Максимальный выходной ток: High/Low, мА | -6.8/6.8 |
| Напряжение питания, В | 3…18 |
| Рабочая температура, °C | -55…+125 |
| Корпус | tssop-14(4.4мм) |
| Вес, г | 0.12 |
