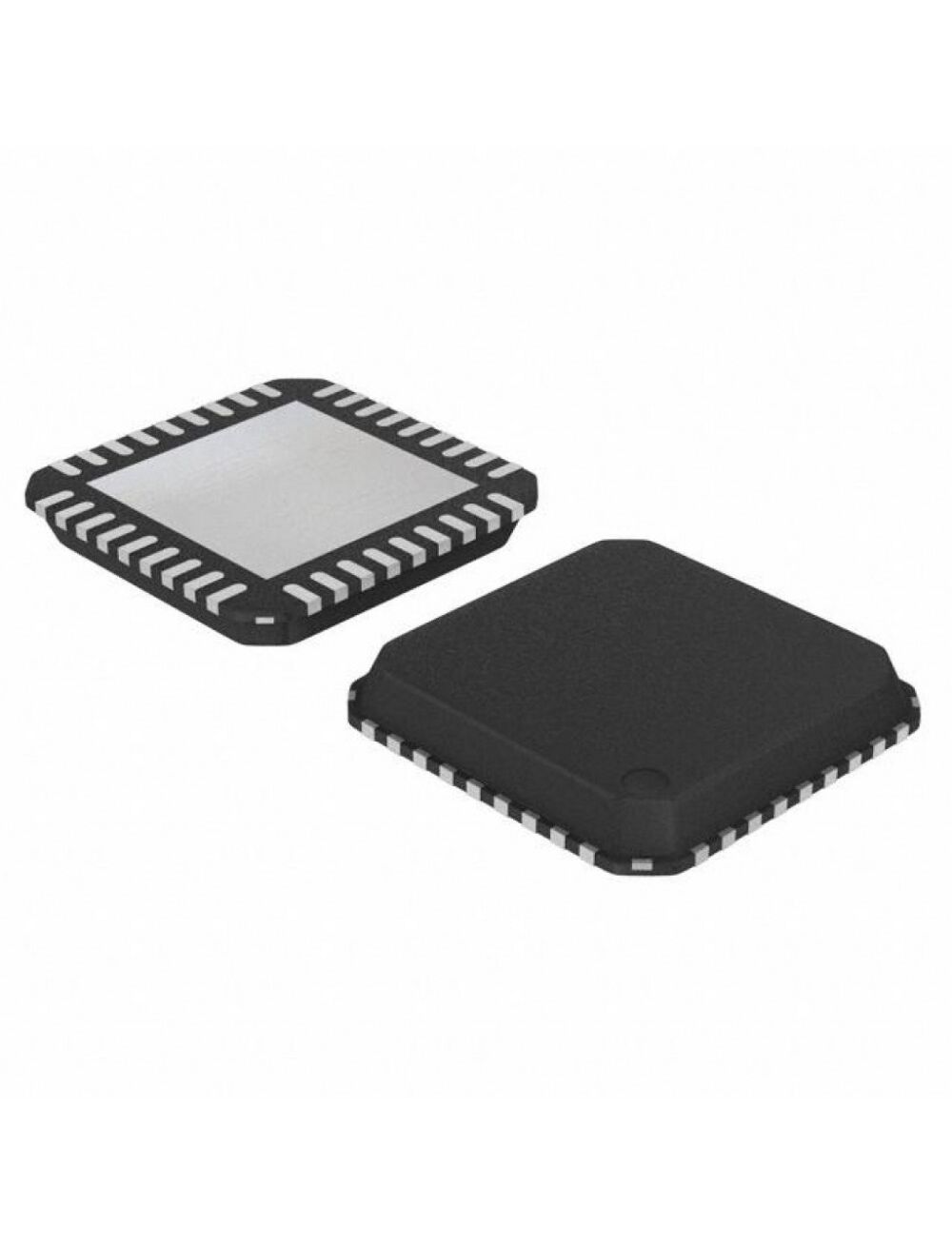

USB2514B-AEZC, ic usb 2.0 4port hub ctlr 36qfn
Описание
Описание USB2514B-AEZC
The USB2514B-AEZC is a versatile and power-efficient USB 2.0 hub Controller IC. Leveraging Microchip's innovative MultiTRAK™ technology that delivers industry-leading data throughput in mixed-speed USB environments, the USB2514B-AEZC is an USB port expansion solution for applications that demand ultra low power and a small footprint without compromising on performance. Well-suited for consumer and mobile applications, all members of the USB2514B-AEZC family are available in a space-saving package. The common 36-pin package shared among the 2/3/4 port hub controller measures only 6x6 mm and provides an ultra small footprint for space-constrained designs while allowing scalable port expansion from two to four ports.
• High-performance, Ultra Low-power, Small Footprint Hub Controller with 2, 3 or 4 Downstream Ports
• Fully Compliant with USB 2.0 Specification
• Enhanced OEM Configuration options through either a single Serial I²C® EEPROM or SMBus Slave Port
• MultiTRAK, High-performance multiple transaction translator provides one transaction translator/port
• PortMap, Flexible Port Mapping and Disable Sequencing
• PortSwap, Programmable USB differential-pair pin locations ease PCB design by aligning signal lines
• PHYBoost, Programmable USB signal drive strength for recovering signal integrity
• Fully Footprint Compatible with USB251x/xi/xA/xAi Products as Direct Drop-in Replacements
• Cost savings Include Using Same PCB Components and Application of USB-IF Compliance by Similarity
• Full Power Management with Individual Or Ganged Power Control of Each Downstream Port
• Fully Integrated USB Termination and Pull-up/pull-down Resistors
• Support a single external 3.3V supply source, Internal regulators provide 1.2V internal core voltage
• Onboard 24MHz Crystal Driver, Ceramic Resonator or External 24/48MHz Clock Input
• Customizable Vendor ID, Product ID and Device ID
• 4kV of HBM JESD22-A114F ESD Protection (Powered and Unpowered)
• Supports Self- or Bus-powered Operation
• Support USB Battery Charging Specification Rev. 1.1 for Charging Downstream Ports (CDP)
• Supports Extended Commercial Temperature Range of 0 to +85°C
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.31.00.01 |
| Type | USB 2.0 High Speed Hub Controller |
| USB Transceiver | Yes |
| USB Speed Type | Low Speed|High Speed|Full Speed |
| Protocols Supported | USB 2.0 |
| Interface Type | Serial |
| Minimum Operating Supply Voltage (V) | 3 |
| Maximum Operating Supply Voltage (V) | 3.6 |
| Typical Operating Supply Voltage (V) | 3.3 |
| Typical Supply Current (mA) | 35 |
| Minimum Operating Temperature (°C) | 0 |
| Standard Package Name | QFN |
| Maximum Operating Temperature (°C) | 85 |
| Supplier Temperature Grade | Industrial |
| Packaging | Tray |
| Automotive | No |
| Pin Count | 36 |
| Supplier Package | VQFN EP |
| Mounting | Surface Mount |
| Package Height | 0.95(Max) |
| Package Length | 6 |
| Package Width | 6 |
| PCB changed | 36 |
| Lead Shape | No Lead |
| Вес, г | 1.62 |
