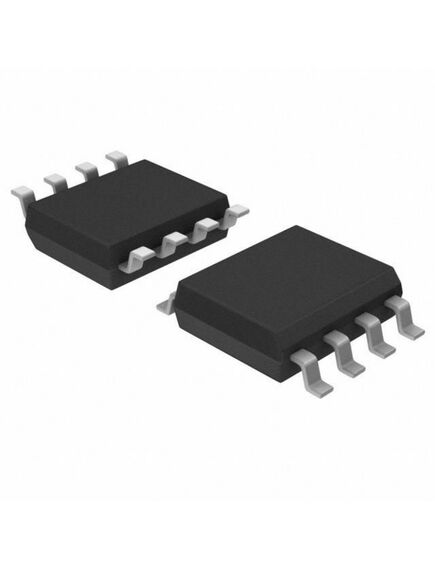

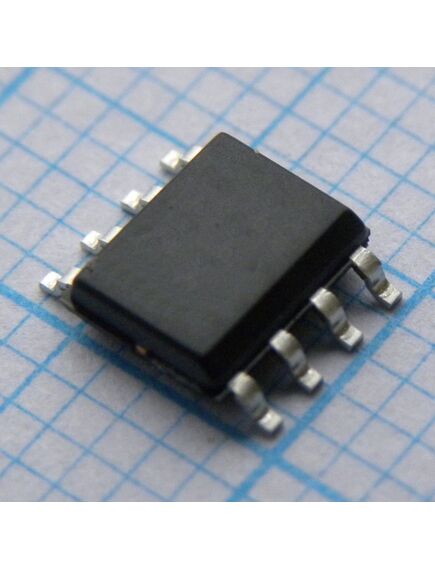

SN65LBC184DR, дифференциальный приемопередатчик с подавлением переходного напряжения
Описание
Описание SN65LBC184DR
The SN65LBC184DR is a transient voltage suppression differential Data Line Transceiver in the trade-standard footprint of the SN75176 with built-in protection against high-energy noise transients. This feature provides a substantial increase in reliability for better immunity to noise transients coupled to the data cable over most existing devices. Use of these circuits provides a reliable direct-coupled (with no isolation transformer) data line interface without requiring any external components. It can withstand over-voltage transients of 400W peak (typical). The conventional combination wave called out in IEC 61000-4-5 simulates the over-voltage transient and models unidirectional surge caused by over-voltages from switching and secondary lightning transients.
• Integrated transient voltage suppression
• Controlled driver output voltage slew rates allow longer cable stub lengths
• Open-circuit failsafe receiver design
• 1/4 Unit-load (up to 128 nodes on the bus)
• Thermal shutdown protection
• Power-up and power-down glitch protection
• Pin-compatible with SN75176
• 250kbps in Electrically noisy environments
• 300µA Maximum low disabled supply current
• 0.25Mbps Maximum signalling rate
• 15kV HBM ESD
• 128 Number of nodes
• -7 to 12V Common mode range
• Green product and no Sb/Br
| Тип | rs422, rs485 приемопередатчик |
| Количество драйверов / приемников | 1/1 |
| Режим работы | полудуплекс |
| Гистерезис приемника, мВ | 70 |
| Скорость передачи данных | 250 kbps |
| Напряжение питания, В | 4.75…5.25 |
| Рабочая температура,°C | -40…+85 |
| Корпус | soic-8(0.154 inch) |
| Вес, г | 0.15 |
