MAX481CSA+, приемопередатчик интерфейс_rs485/ rs422
Описание
Описание MAX481CSA+
The MAX481CSA+ is a half-duplex Low-power Transceiver for RS-485/RS-422 communication. Each part contains one driver and one receiver. The driver slew rates of the MAX481 is not limited, allowing them to transmit up to 2.5Mbps. These transceivers draw between 120 and 500µA of supply current when unloaded or fully loaded with disabled drivers. Additionally, the MAX481 have a low-current shutdown mode in which they consume only 0.1µA. All parts operate from a single 5V supply. Drivers are short-circuit current limited and are protected against excessive power dissipation by thermal shutdown circuitry that places the driver outputs into a high-impedance state. The receiver input has a fail-safe feature that guarantees a logic-high output if the input is open circuit.
• Low-power shutdown
• Receiver/driver enable
• 300µA Quiescent current
• 32 Number of receivers on bus
• 8 Pin count
• Industrial-Control Local Area Networks; Level Translators; Low-Power RS-422 Transceivers;
• Low-Power RS-485 Transceivers; Transceivers for EMI-Sensitive Applications
| Тип | rs422, rs485 приемопередатчик |
| Количество драйверов / приемников | 1/1 |
| Режим работы | полудуплекс |
| Гистерезис приемника, мВ | 70 |
| Скорость передачи данных | 2.5 mbps |
| Напряжение питания, В | 4.75…5.25 |
| Рабочая температура,°C | 0…+70 |

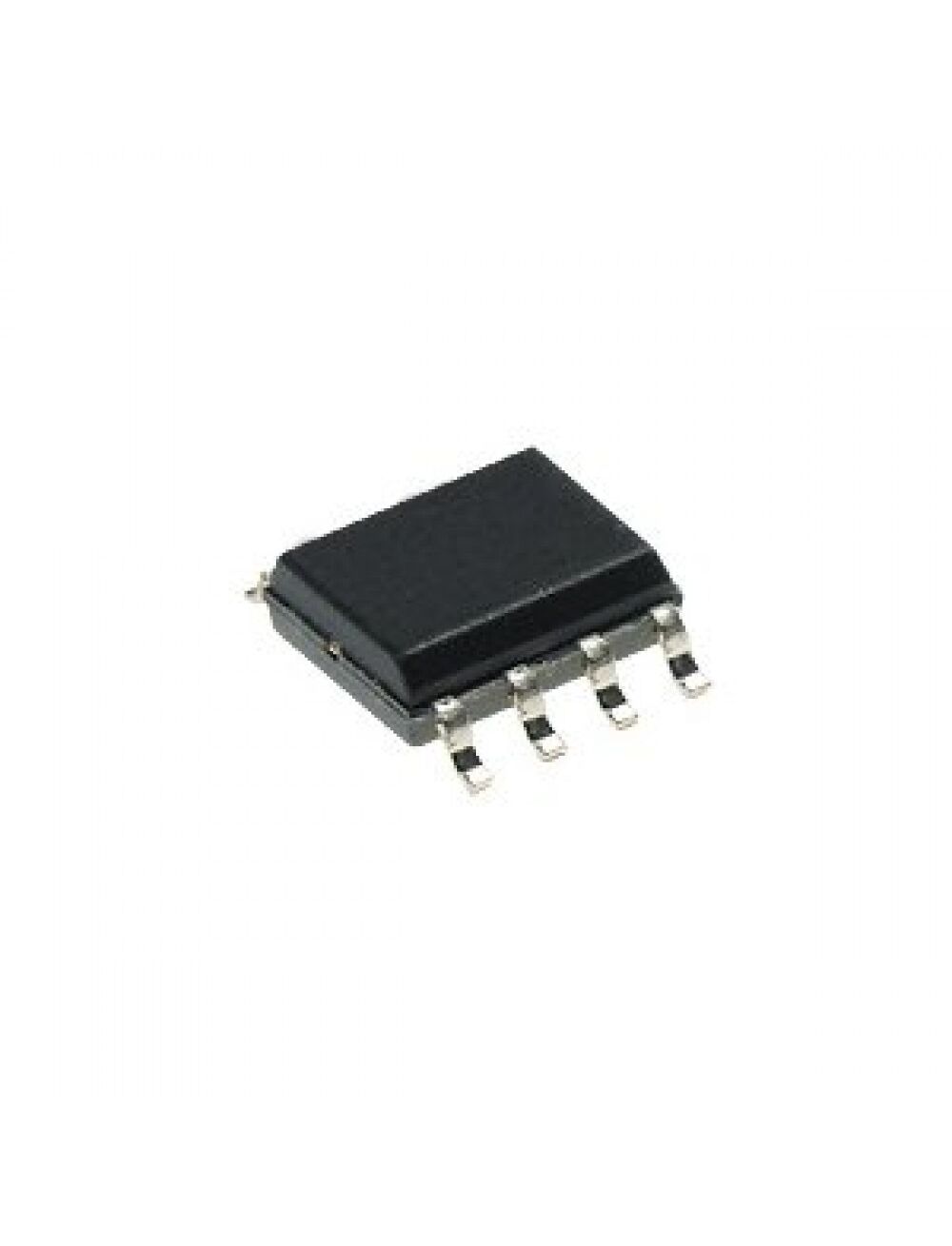

| Корпус | soic-8(0.154 inch) |
| Вес, г | 0.15 |
